Specifications
Brand Name :
NUOYING
Model Number :
NYRD704
Certification :
CE, ATEX, SIL
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1 pc
Price :
$360~$489/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
7 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Range :
6m
Accuracy :
±1mm
Process temperature :
-40~+130℃
Protection Class :
IP67
Process pressure :
-0.1~0.3MPa
Explosion-proof grade :
Exia II CT6 (optional)
Process connection :
Thread, flange (optional)
Antenna type :
Rod Antenna
Description

1.8GHz 6m Guided Wave Radar Level Meter with 4-20mA/HART/Modbus Output and Coaxial Probe for Liquid Level Measurement

1.8GHz 6m Guided Wave Radar Level Meter Design Features

◎ Contact measurement with high accuracy for more accurate results

◎ Not affected by external environments such as medium temperature, adhesion, etc.

◎ Suitable for various complex working conditions and applications, such as high temperature, high pressure, media of low dielectric constant, etc.

◎ Can be installed in various metal and non-metallic containers, without any harm to human body and environment.

1.8GHz 6m Guided Wave Radar Level Meter Application Fields

1. Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.

2. Oilfield: Crude oil storage tanks, refined oil storage tanks, settling tanks, sewage tanks, drilling mud tanks, etc.

3. Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.

4. Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.

5. Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.

1.8GHz 6m Guided Wave Radar Level Meter Technical Parameters

Product Model NYRD704
Typical application

Liquids, especially for liquids with stirring and low dielectric constant
Antenna material 304
Antenna type Rod antenna
Measuring range 6m
Measuring accuracy ±1mm
Power supply 24VDC (two-wire, four-wire)
Medium temperature -40~+130℃
Process connection Thread, flange (optional)
Process pressure -0.1~0.3MPa
Protection class IP67
Explosion-proof grade Exia II CT6 (optional)
Signal output 4...20mA/HART/RS485/Modbus...
Electrical interface M20*1.5, ½ ″NPT

Note: Products can be customized according to the specific requirements of users.

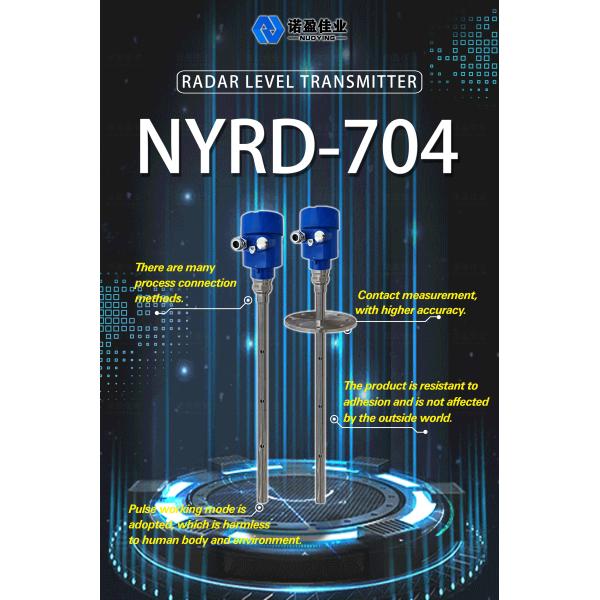

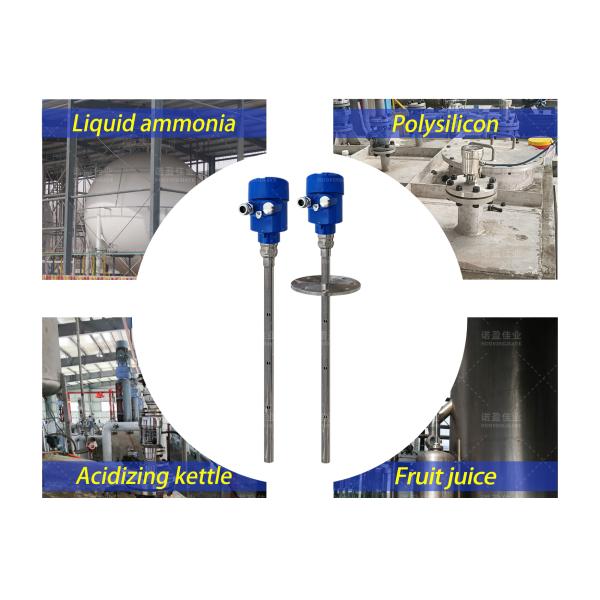

1.8GHz 6m Guided Wave Radar Level Meter Related Pictures

1.8GHz 6m Guided Wave Radar Level Meter with 4-20mA/HART/Modbus Output and Coaxial Probe for Liquid Level Measurement

1.8GHz 6m Guided Wave Radar Level Meter with 4-20mA/HART/Modbus Output and Coaxial Probe for Liquid Level Measurement
