26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles
26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles
26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles
26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles
26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles
26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles
Specifications
Brand Name :
NUOYING
Model Number :
NYRD808
Certification :
CE, ATEX, SIL
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1 pc
Price :
$138~$760/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
7 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Range :
70m
Accuracy :
±3mm
Power supply :
24VDC (2 Wire ,4 Wire), 220VAC
Output signal :
4...20mA/HART/RS485/Modbus...
Process temperature :
-40~+120℃
Process pressure :
-0.1~4.0MPa
Antenna material :
PTFE, 304, 316, PP, PFA
Antenna type :
Horn Antenna
Description

26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles

26GHz Radar Level Transmitter Product Description

The NYRD809 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 70 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.

26GHz Radar Level Transmitter Application Fields

1. Oilfield: Three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.

2. Chemical: Raw material silos, ammonia tank, asphalt storage tank, etc.

3. Metallurgy: Raw material silos, auxiliary material silos, etc.

4. Foodstuffs: Raw sugar storage tank, etc.

5. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.

6. Paper: Raw material silo, storage tower, drying drum, chemical material storage silo, etc.

7. Other: Quarry, coal mine, environmental protection and other industries.

26GHz Radar Level Transmitter Technical Parameters

Product Model NYRD808
Typical application Solids, particles and strong dust
Antenna material PTFE, 304, 316, PP, PFA
Antenna type Horn Antenna
Measuring range 70m
Measuring accuracy ±3mm
Power supply 24VDC (2 Wire ,4 Wire), 220VAC
Medium temperature -40~+120℃
Process connection Thread, flange (optional)
Process pressure -0.1~4.0MPa
Protection class IP67
Explosion-proof grade Exia II CT6
Signal output 4...20mA/HART/RS485/Modbus...
Electrical interface M20*1.5, ½ ″NPT

Note: Products can be customized according to the specific requirements of users.

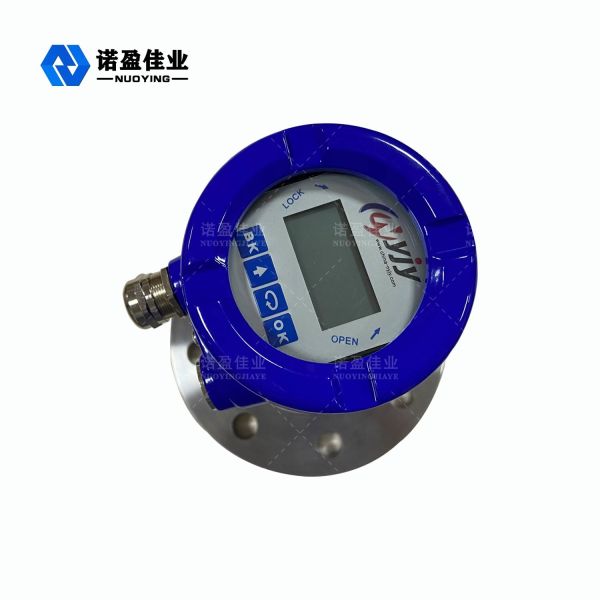

26GHz Radar Level Transmitter Related Pictures

26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles

26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles

26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles
