Specifications
Brand Name :
NUOYING
Model Number :
NYSP-M
Certification :
CE, SIL, ATEX
Place of Origin :
Xi'an,Shaanxi,China
MOQ :
1pcs
Price :
$219 to $269/pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per month
Delivery Time :
5-7 working day
Packaging Details :
40*30*30cm
Grade :
Industrial
Warranty :
12 months
Customized support :
OEM, ODM
Typical application :
insulating solids, insulating liquids
Measuring accuracy :
0.05%~0.1%F.S
Power supply :
24VDC
Process connection :
1" BSPT thread(standard),flange mounting(optional)
Medium temperature :
-40~+200℃
Process pressure :
-0.1~8.0MPa
Signal output :
4...20mA/HART/RS485/Modbus...
Protection grade :
IP 65 ,IP 67 ,IP 68(optional)
Description

Hot Sale NUOYING 4-20ma NYSP-M Rf Admittance Capacitive Level Meter


Nuoying NYSP-M Radio Frequency Admittance Level Meter Overview


Products Description
Hot Sale NUOYING 4-20mA NYSP-M Rf Admittance Capacitive Level Meter

NYSP-M18 RF Admittance Level Transmitter Design Feature

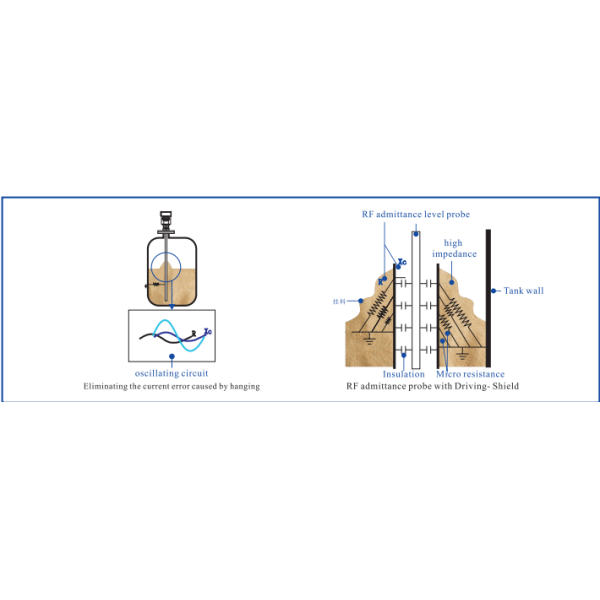

1. Anti-hanging material: The unique drive shielding circuit design improves the performance of the anti-hanging material.
2. Power supply range: power supply operating range: 13 ~ 35VDC.
3. Adaptability: Probe process temperature: -100 ℃ ~ 800 ℃; no dead zone measurement, can be used in horizontal measurement occasions of more than ten centimeters or even a few centimeters, with a large measurement range;the maximum measurement range of up to hundreds of meters, or even hundreds of meters; viscous material interface measurement is the great advantage of the instrument.
4. Stability: The output is stable and reliable, and it is resistant to the influence of fly ash, blanking, water vapor,
crystallization and waxing.
5. Maintenance-free: no moving, no easy-to-wear parts, no need for frequent cleaning, maintenance, commissioning.
Product Parameters
Hot Sale NUOYING 4-20mA NYSP-M Rf Admittance Capacitive Level Meter
Typical application
Conductive liquid, interface, split mountable
Probe type
Insulated flexible cable PTFE (optional)
Measuring accuracy
0.05%-0.1%F.S
Power supply
24VDC(Two lines, four lines)
Medium temperature
-40~+200℃
Process connection1
1" BSPT thread (standard) flange mounting (optional)
Process pressure
0.1~8.0MPa
Explosion-proof grade
Exia II CT6(optional)
Hot Sale NUOYING 4-20mA NYSP-M Rf Admittance Capacitive Level Meter
