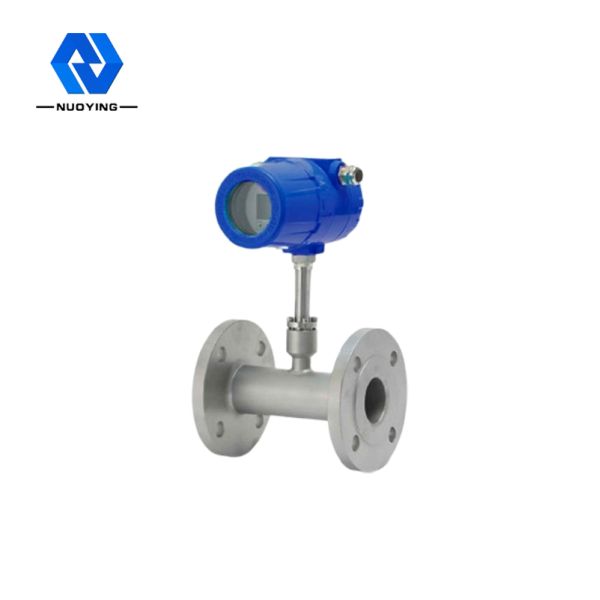

Compress Air Thermal Mass Gas Flow Meter ISO9001 24VDC 1.5A
Compress Air Thermal Mass Gas Flow Meter ISO9001 24VDC 1.5A
Compress Air Thermal Mass Gas Flow Meter ISO9001 24VDC 1.5A
Compress Air Thermal Mass Gas Flow Meter ISO9001 24VDC 1.5A
Compress Air Thermal Mass Gas Flow Meter ISO9001 24VDC 1.5A
Compress Air Thermal Mass Gas Flow Meter ISO9001 24VDC 1.5A
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYMFS-TMF
Certification :
CE,ISO9001
Place of Origin :
Xi'an,Shaanxi
MOQ :
1pc
Price :
$345.0~$475.0
Payment Terms :
T/T
Supply Ability :
1800pcs per month
Packaging Details :
50*30*30cm carton box
Accuracy :
1.5%
Pipe Size :
DN10-1500
Power :
220V
Medium :
All gases
Flow rate :
0.1-100Nm/s
Warranty :
1 year
Description

Compress Air Thermal Mass Gas Flow Meter Air Flowmeter Manufacturer

Compress Air Thermal Mass Gas Flow Meter Air Flowmeter Manufacturer Description:

Thermal gas mass flowmeter is designed based on the principle of thermal diffusion. The instrument uses constant temperature difference method to measure gas accurately.The former monitors the actual process temperature value; The latter maintains a constant temperature value so that it is always higher than the actual process temperature and maintains a constant temperature difference with the process temperature. The greater the mass flow rate of gas, the greater the cooling effect and the greater the energy required to maintain the differential temperature. Therefore, the mass flow rate of the measured gas can be obtained by measuring the energy of the heater.

Compress Air Thermal Mass Gas Flow Meter Air Flowmeter Manufacturer Parameters:

Material Stainless steel, Cast steel
Display 4 lines LCD display
Accuracy ±1%
Measuring range All gases (except acetylene)

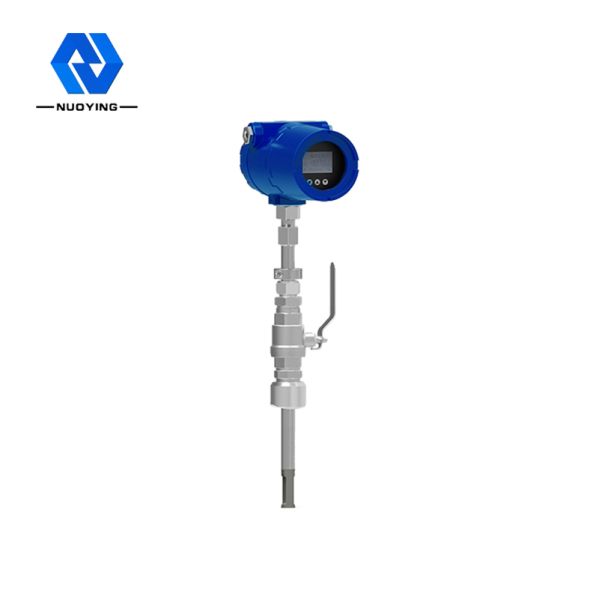

Diameter (MM) DN10-100 (Flange type), DN125-1500 (Insert type)
Flow rate 0.1-100Nm/s
Output Standard: 4-20mA, Option: RS485/RS232
Press 1.6Mpa, Option (2.5MPa, 4.0MPa, 6.4Mpa)
Power Standard: 24VDC/1.5A, Option: 220VAC
Conditions of use A. ambient temperature:-20 ~+150 ℃
B. medium temperature: 0 ~+200 ℃
C. relative humidity: 45-75%
D. atmospheric pressure: 86 kpa-106 kpa
Protection level IP65

Compress Air Thermal Mass Gas Flow Meter Air Flowmeter Manufacturer Features:

1. Thermal gas mass flowmeter does not need temperature and pressure compensation for gas flow measurement. It can measure the mass flow rate or standard volume flow rate of the gas.

2. Wide range ratio. It can measure gas with flow rate from 0.5Nm/s to 100Nm/s, and also can be used for gas leak detection.

3. Easy installation and maintenance. On-site conditions permit, installation and maintenance without shutdown can be realized.
