140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYRD701（PTFE）
Certification :
Explosion-proof certificate
Place of Origin :
China
MOQ :
1
Price :
$420 to $1850
Payment Terms :
T/T
Supply Ability :
1000 pcs/ pre month
Delivery Time :
1-3 work days
Packaging Details :
40cm×30cm×30cm
Typical application :
Liquids, powders, solid particles, corrosive media
Antenna material :
Flexible cable/304/PTFE (optional)
Process connection :
Screw thread, Flange(optional),
Operating temperature :
-40~130℃
Signal output :
4-20mA, 4-20mA/HART(Two wire/FOUR wire)
Frequency range :
1.8GHz
Accuracy :
±1mm
Power supply :
24VDC or 220VAC
Description

NYRD3000-3D Explosion-proof Scanning Imaging Radar

The explosion-proof scanning imaging radar can perform real-time material scanning of storage silos, tanks, and storage sheds at room temperature through a 360° two-dimensional axial scanning. It enables functions such as static target detection within the spatial range, point cloud data output, spatial scanning imaging, volume and weight calculation output, and is not affected by adverse environments such as rain, dust, and light.


Product advantages

· Two-dimensional axial 360° scanning for high-precision imaging of the target;
· The antenna beam angle is small, resulting in more accurate measurement and a longer detection distance;
· The farthest imaging radius is 50 meters;
· The volume calculation error is ≤ 3%;
· The scanning time is ≥ 30 seconds;
· Equipped with a high-precision attitude sensor for self-correction of inclination;
· Standard flange connection, and the imaging host can output the material surface and volume;
· Works all-weather, unaffected by rain, dust, light, temperature and other environmental factors;

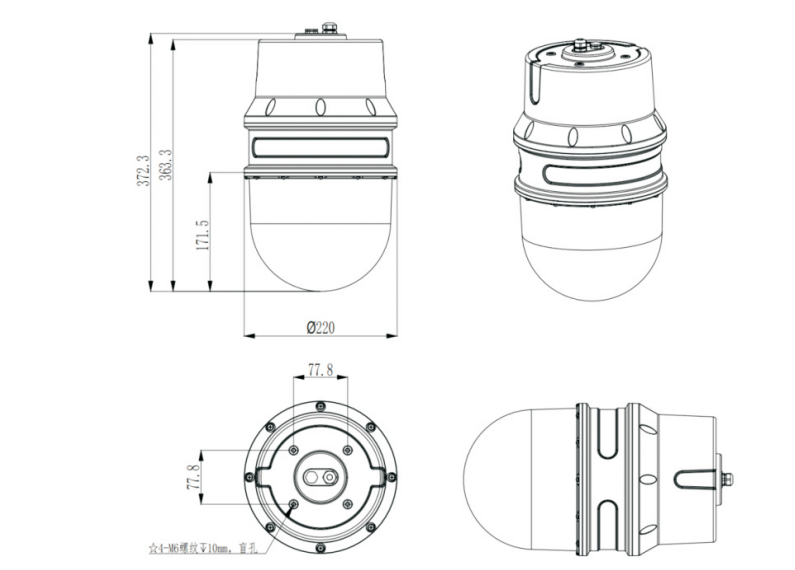

Product size

140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof

技术参数

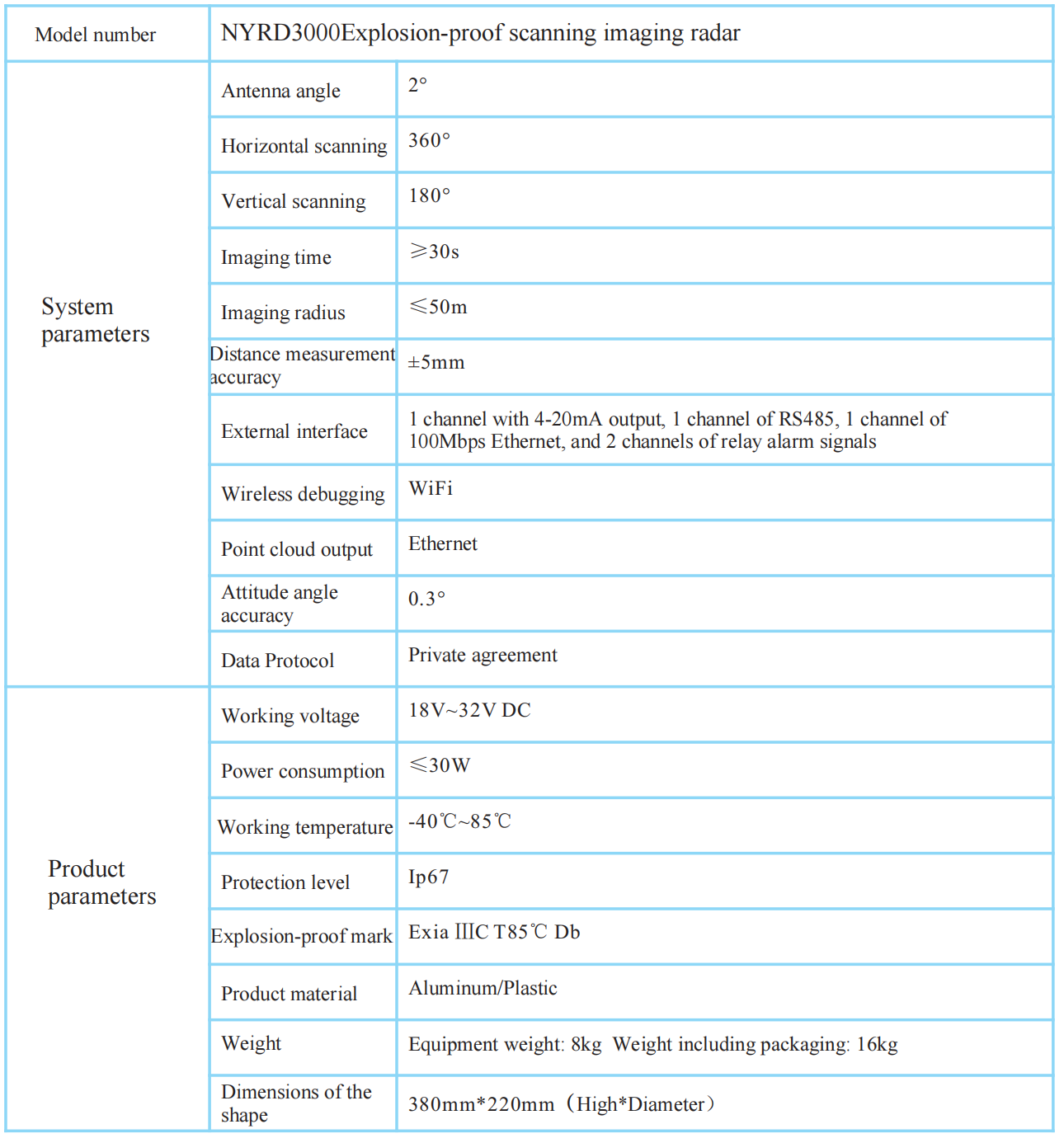

Technical Specifications
140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof
