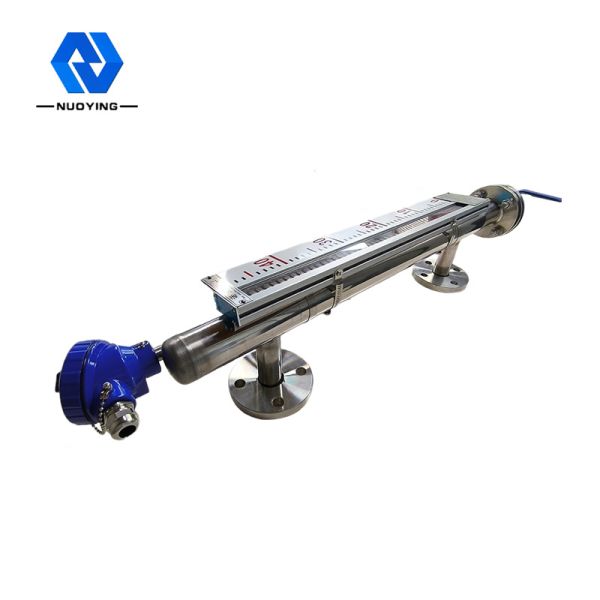

Side / Top Mounted Magnetic Flap Level Gauge For Liquid Measurement

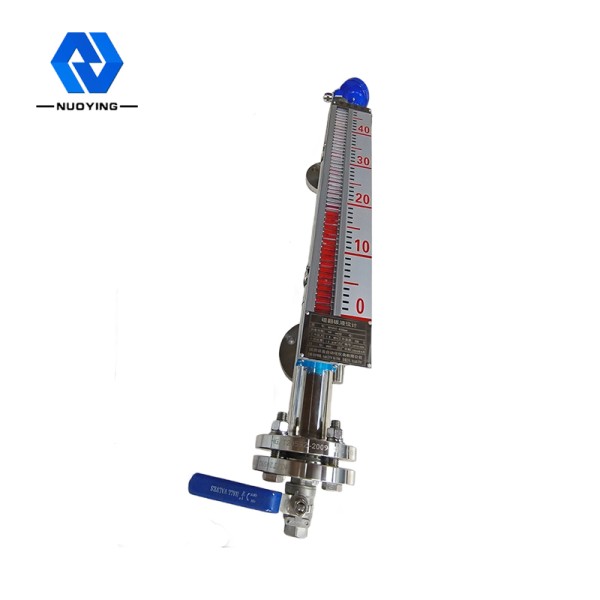

Side / Top Mounted Magnetic Flap Level Gauge For Liquid Measurement

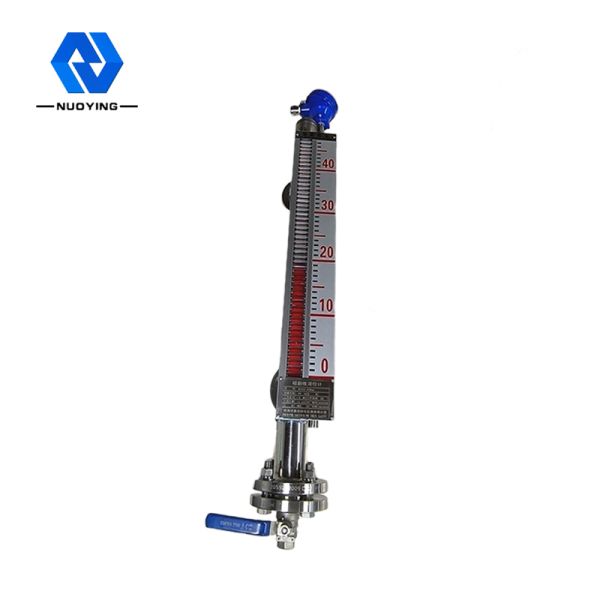

Side / Top Mounted Magnetic Flap Level Gauge For Liquid Measurement
Side / Top Mounted Magnetic Flap Level Gauge For Liquid Measurement
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYUHZ
Certification :
CE
Place of Origin :
Xi'an, Shaanxi，China
MOQ :
1 pc
Price :
$450~$1700/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs/month
Delivery Time :
7 working days
Packaging Details :
Carton, 60cm×30cm×30cm
Typical application :
Liquid level measurement
Product models :
NYUHZ
Installation form :
Side mounted, top mounted
Body Material :
304、316
measuring range :
0~6m
Measurement precision :
±3mm、±5mm、 ±10mm、 ±20mm （optional）
Medium density :
≥0.425g/cm3
Density difference :
≥0.1g/cm3
Description

Multiple Installation Forms Magnetic Flap Level Gauge Stable Operation



Working Principle of Magnetic Flap Level Gauge

Each magnetic flap liquid level gauge has a cavity (called measuring tube or main tube) for accommodating the floating ball. The cavity forms a connector with the container through flange or other suitable connection methods. According to the principle of the communicator, the liquid level in the container changes up and down, the liquid level in the cavity and the liquid level in the container are at the same height, so it drives the floating ball in the cavity to move up and down, and rises and falls with the rise and fall of the liquid level in the container. At this time, we can't see the liquid level, so a magnetic column display is installed outside the cavity.

Design feature of Magnetic Flap Level Gauge

◎ simple structure, solid and reliable, stable operation

◎ on site display scale is clear, striking and easy to read

◎ it can measure and indicate the liquid level with corrosive, flammable, toxic, high-temperature and agitated contaminated liquid

◎ multiple installation forms and connection forms can be selected

◎ design pressure range: full vacuum to 10MPa

◎ design temperature range: - 160 ~ + 450 ℃

◎ professional design for special pressure and temperature

Technical parameters of Magnetic Flap Level Gauge

Typical application Liquid level measurement

product model

 NYUHZ
Installation form Side mounted, top mounted
Body Material 304,316
measuring range 0~6m
Measurement precision ±3mm,±5mm, ±10mm, ±20mm (selectable)
Medium density ≥0.425g/cm3
Density difference ≥0.1g/cm3
Medium viscosity ≤0.4Pa.S
Control output 220VAC,1A
Transmission output 4...20mA(power supply 24VDC)
Process Temperature

-50~+350℃
Process Pressure -0.1~+16MPa
Process connection flange(selectable)
resolution ratio ±1mm
levels of protection IP65,IP67,IP68(selectable)
Explosion-proof grade Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details)

※Note:The product can be customized according to the specific requirements of users.
