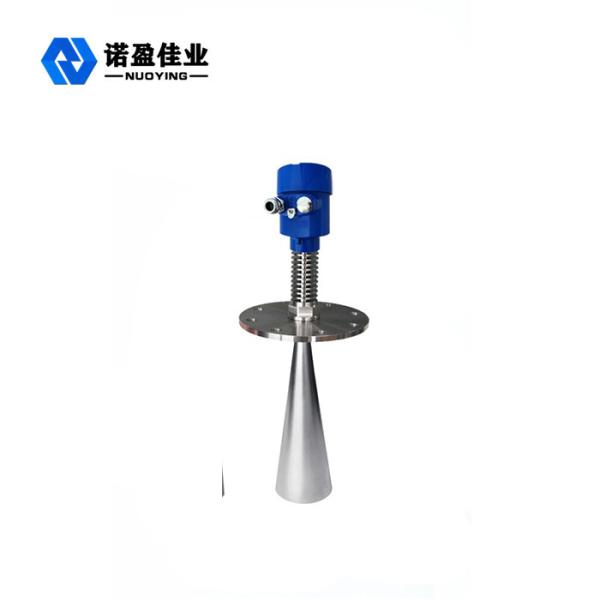

Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment
Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment
Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment
Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment
Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment
Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYRD808
Certification :
CE
Place of Origin :
Xi'an, Shaanxi，China
MOQ :
1 pc
Price :
$450~$1700/pc
Payment Terms :
T/T
Delivery Time :
7 working days
Packaging Details :
Carton, 60cm×30cm×30cm
Supply Ability :
1000 pcs/month
Typical application :
Occasions with solid materials, strong dust, easy crystallization and condensation
Product model :
NYRD808
Antenna form :
Bar type, water drop type, plate type, horn type, surface type, lens type
Meaturing range :
70m
Antenna material :
PTFE、304、 316、 PP、 PFA
measurement accuracy :
0.05%~0. 1%F.S
Power supplies :
24VDC(two-wire, four-wire), 220VAC
Protection grade /IP Grade :
IP67(Optional)
Description

Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment

The profile of Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment

Radar Level Meter (NYRD808)series sensors are 26GHz high-frequency radar level measuring instruments, measuring the maximum distance up to 80 meters. The antenna is further optimized, and new fast microprocessors can perform higher rate signal analysis and processing, enabling the meter to be used in complex measurement conditions such as reaction tanks and solid bin

Working Principle of Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment

Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment

Datum of measurement: sealing surface of thread bottom or flange.
Note: When using radar level timing, make sure that the highest material level cannot enter the measurement blind area (the area shown in D in the figure).

Design Features of Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment

◎The antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
◎ almost immune to corrosion and foam; Not affected by medium density, temperature and pressure changes.
◎ Serious dust environment has little influence on the work of high frequency level meter.
◎ Shorter wavelength, better reflection on inclined solid surfaces.
◎ The beam Angle is small, the energy is concentrated, which enhances the echo ability and is conducive to avoid interference objects.
◎ Measuring blind area is smaller, for small tank measurement will also achieve good results.
◎ High signal-to-noise ratio, even in the case of fluctuations can also obtain better performance.
case of fluctuations can also obtain better performance.
◎ High frequency, is the best choice for measuring solid and low dielectric constant medium.High frequency, is the best choice for measuring solid and low dielectric constant medium.

Technical Parameters of Smaller Blind Area 26G Radar Level Transmitter For Strong Dust Environment

Typical application Occasions with solid materials, strong dust, easy crystallization and condensation

product model

 NYRD808

Antenna form

Stick, water drop, flat, trumpet,thrown surface, lens
Antenna material PTFE,304,316,PP,PFA
measuring range 70m
accuracy of measurement 0.05%~0.1%F.S
Power Supply Voltage 24VDC(two wire,four wire),220VAC

signal output

 4...20mA/HART/RS485/Modbus...
Process temperature -40~+250℃
Process pressure

-0.1~4.0MPa,
procedure linkage flange(optional)
Electrical interface M20*1.5,½ ″NPT
levels of protection IP67(optional)
explosion-proof classification Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details)

※Note:The product can be customized according to the specific requirements of users.
