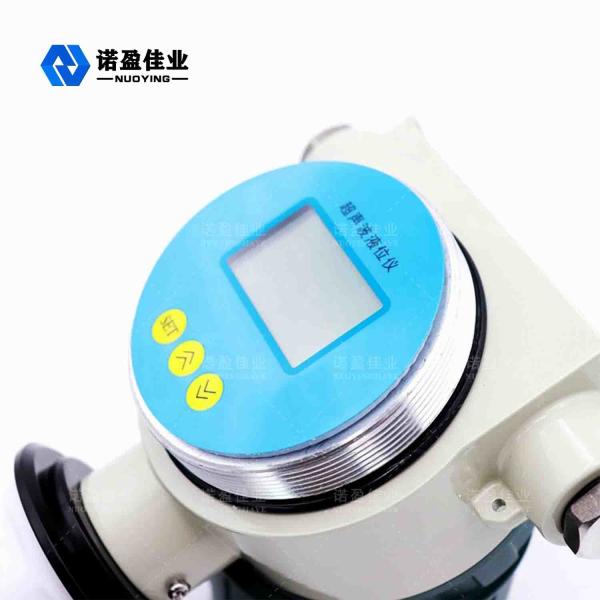

IP68 NYCSUL Ultrasonic Level Gauge With RS485 Explosion Proof
IP68 NYCSUL Ultrasonic Level Gauge With RS485 Explosion Proof
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYCSUL
Certification :
CE
Place of Origin :
Xi'an, Shaanxi，China
MOQ :
1 pc
Price :
$450~$1700/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs/month
Delivery Time :
7 working days
Packaging Details :
Carton, 60cm×30cm×30cm
Typical application :
Liquid (no stirring, foam, volatilization, etc.)
Product models :
Nycsul-501, NYCSUL-503
The probe type :
Body, split body, explosion-proof, anti-corrosion,explosion-proof
The antenna form material :
PP, PVC, PTFE(optional)
Accuracy of measurement :
<0.25% (range<20 m), <0.5% (range>20 m)
Process pressure :
-0.1 ~0.1 MPa, (atmospheric pressure)
Process connection :
thread,glange(optional)
Explosion-proof grade :
Exia II CT6 Ga, Exd II CT6Gb
Description

IP68 NYCSUL Ultrasonic Level Gauge with RS485



The working Principle of IP68 NYCSUL Ultrasonic Level Gauge with RS485

Ultrasound propagates in gases, liquids and solids with a certain speed of propagation. When the ultrasonic wave propagates in the medium, it will be absorbed and attenuated, the attenuation in the gas is the largest, and the attenuation in the solid is the smallest. When ultrasonic waves pass through the interface of two different media, reflection and refraction will occur. For interfaces with large differences in acoustic impedance, it is almost total reflection. The time interval from transmitting the ultrasonic wave to receiving the transmitted signal is related to the position of the interface. The ultrasonic level gauge uses this characteristic of ultrasonic wave to measure the level.

Design feature of IP68 NYCSUL Ultrasonic Level Gauge with RS485

◎ reasonable design, excellent performance, simple structure, convenient installation, etc

◎ small angle probe is adopted for ultrasonic wave, with large transmission power and high sensitivity

◎ upper and lower limit setting and alarm setting at any point, can be used for continuous liquid measurement and liquid level control

Technical parameters of IP68 NYCSUL Ultrasonic Level Gauge with RS485

Typical application Liquid (no stirring, foam, volatilization, etc.)
Product models Nycsul-501, NYCSUL-502, NYCSUL-503
The probe type Body, split body, explosion-proof, anti-corrosion, anti-corrosion and explosion-proof
The antenna material PP, PVC, PTFE, 304
Measuring range 0~ 20M (integrated), 0~40m(separate),
Accuracy of measurement <0.25% (range <20 m), <0.5% (range >20 m)
The process temperature 3M, 20M (deep well can measure several hundred meters, which can be customized as well)
Accuracy of measurement 0.05% ~ 0.1% F. S
The process temperature -20~+70C
Process pressure -0.1 ~=0.1 MPa, (atmospheric pressure)
Electrical Interface M20×1.5,½"NPT
Protection class IP65, IP67, IP68(optional)
Process connection Process connection
Display mode Liquid level, distance (air height)
Set the output Upper limit setting, lower limit setting
Signal output 4... 20mA/ HART/ RS485/Modbus. . .
Protection grade IP65, IP67, IP68(Optional)
Explosion-proof grade Exia II CT6 Ga, Exd II CT6 Gb(see certificate for details)

※Note:The product can be customized according to the specific requirements of users.
