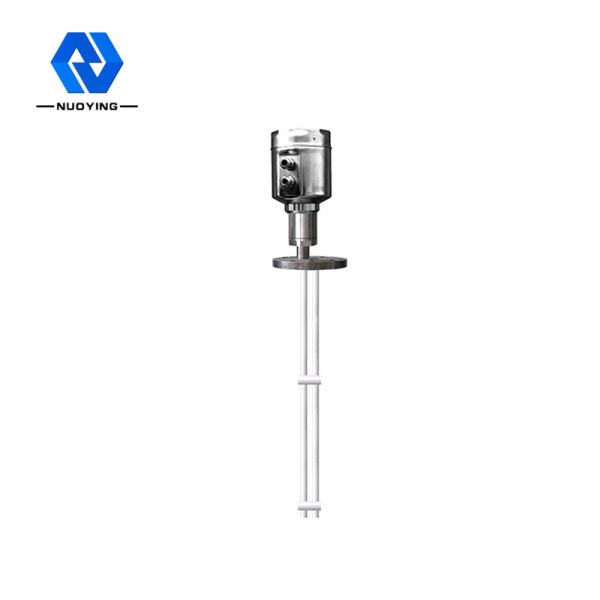

Hard Insulating RF Admittance Level Transmitter Rod Type
Hard Insulating RF Admittance Level Transmitter Rod Type
Hard Insulating RF Admittance Level Transmitter Rod Type
Hard Insulating RF Admittance Level Transmitter Rod Type
Hard Insulating RF Admittance Level Transmitter Rod Type
Hard Insulating RF Admittance Level Transmitter Rod Type
Specifications
Brand Name :
nuoyingjiaye
Model Number :
NYSP-Z23
Certification :
CE
Place of Origin :
Xi'an, Shaanxi
MOQ :
1
Price :
$450 to $1700
Payment Terms :
T/T
Supply Ability :
1000 pcs/ pre month
Delivery Time :
7 working days
Packaging Details :
carton, 60cm×30cm×30cm
Product Name :
Hard Insulating RF Admittance Level Transmitter Rod Type
Type :
Rod
Output :
4-20mA
Power :
24VDC
Measuring Range :
0-6m
Process temperature :
-40～150℃
Protection class :
IP67
Material :
SS 304
Description

Hard Insulating RF Admittance Level Transmitter Rod Type

The working principle of Admittance Level Transmitter

Radio frequency admittance measurement technology is a level measurement technology with unique advantages. Although the concept is very similar to the general capacitive measurement technology, the RF admittance technology adds a Driving-Shield circuit and a chopper circuit in the electronic unit, so it can realize the independent measurement of impedance and capacitive reactance. It can be calculated by the laws of physics that the magnitude of the impedance and capacitive reactance of any hanging material is equal, so the effect caused by the hanging material can be measured and eliminated from the total output by the phase shift of the oscillating circuit.

Technical Parameter of RF Admittance Level Transmitter

Applications Interface, power - off, strong mixing occasions
Probe type Hard insulating rod
Measuring Range 0~6m
Process temperature -40～150℃
Ambient temperature -40 ℃ ~ + 70 ℃
Storage temperature -20 ℃ ~ + 65 ℃
Process pressure -0.1～2.5MPa
Power supply (13-35)vDC
Signal output 4...20mA/HART/RS485/Modbus...
Process connection Thread/Flange(selective)
Protection class IP67
Explosion-proof grade ExiaⅡCT6(selective)
Delay: 0 ~ 30 s adjustable

Hard Insulating RF Admittance Level Transmitter Rod Type
