Flap Tank Magnetic Level Meter High Temperature Pressure 220VAC
Flap Tank Magnetic Level Meter High Temperature Pressure 220VAC
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYUHZ
Certification :
CE
Place of Origin :
Xi'an, Shaanxi,China
MOQ :
1
Price :
Please Contact Me
Payment Terms :
T/T
Supply Ability :
1000 pcs/ pre month
Delivery Time :
7-15 working days
Packaging Details :
carton, 90cm×50cm×50cm
Typical application :
Liquid level measurement
Installation form :
Side mounted, top mounted
Density difference :
≥0.1g/cm³
Medium viscosity :
≤0.4Pa.S
Control output :
220VAC,1A
Main material :
304, 316
Process pressure :
- 0.1 ~ +16MPa
Process connection :
Flange (optional)
Description

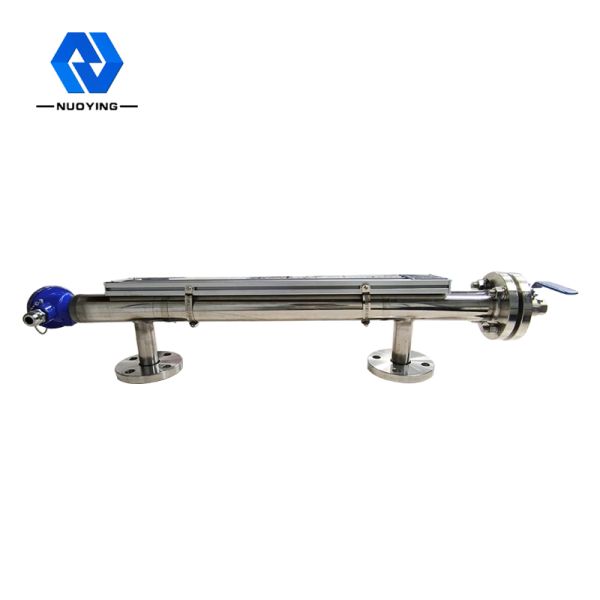

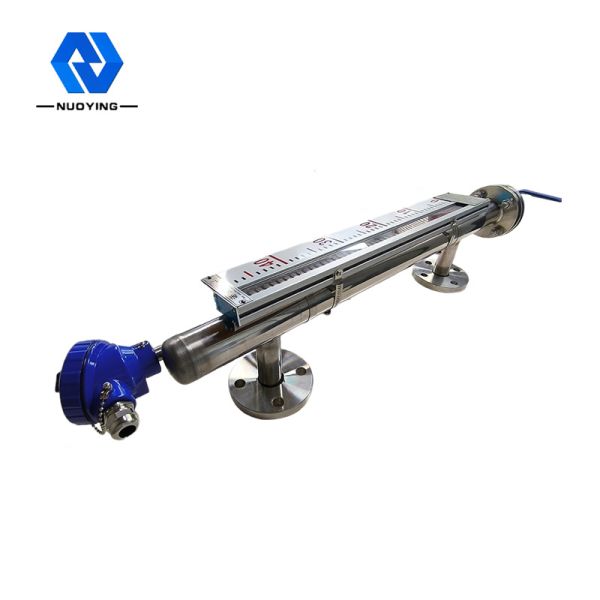

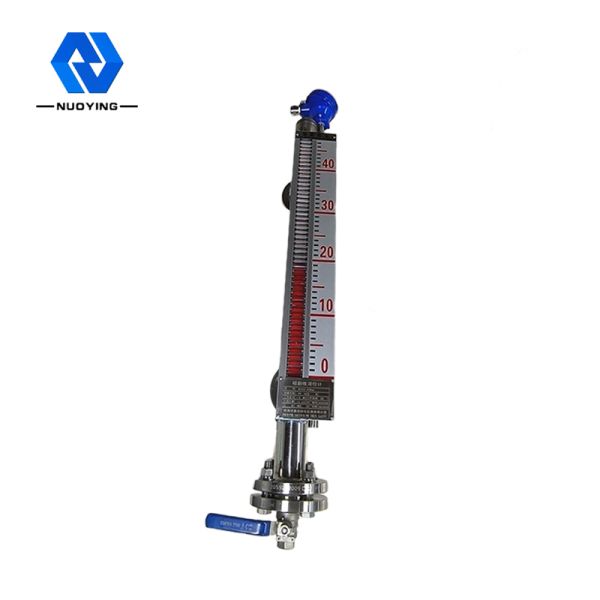

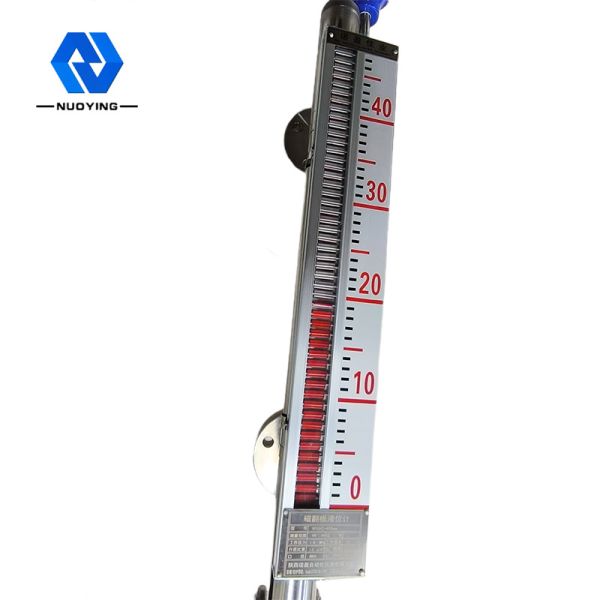

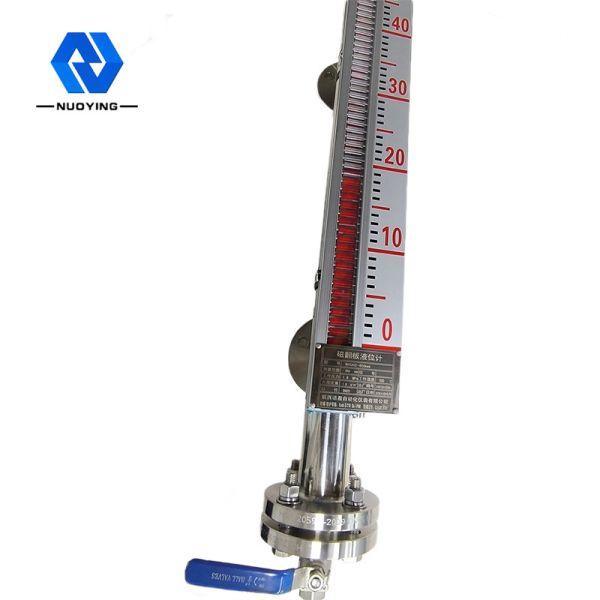

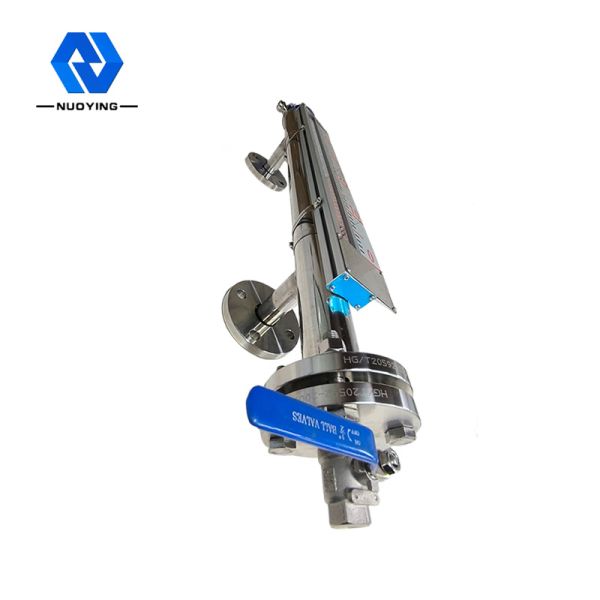

Tank High Temperature High Pressure Magnetic Flap Level Meter

Magnetic Flap Level Meter Working Principle

The magnetic flap level meter can be used for medium level detection of various towers, tanks, tanks, spherical containers and boilers. Magnetic flap level meter can achieve high seal, anti-leakage and can be used in high temperature, high pressure and corrosion resistant occasions.

Magnetic Flap Level Meter Design Feature

◎Simple structure, solid and reliable, stable operation.

◎The calibration is clear and easy to read.

◎Measure and indicate corrosive, inflammable, toxic, high-temperature, agitating contaminated liquid levels.

Magnetic Flap Level Meter Technical Parameter

Typical application Liquid level measurement
Product model NYUHZ
Installation form Side mounted, top mounted
Main material 304, 316
Measuring range 0~6m
Measuring accuracy ±3mm,±5mm,±10mm,±20mm(optional)
Medium density ≥0.425g/cm³
Density difference ≥0.1g/cm³
Medium viscosity ≤0.4Pa.S
Control output 220VAC,1A
Transmit output 4…20mA(power supply 24VDC)
