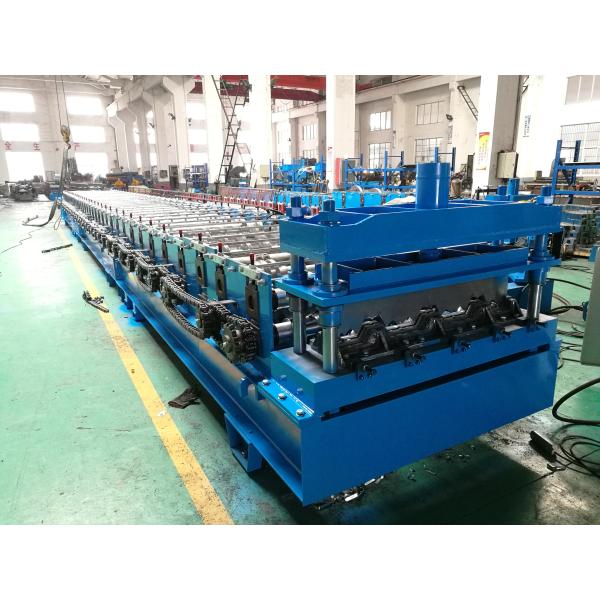

0.7-1.2mm Heavy Duty Steel Metal Deck Roll Forming Machine Gearbox Transmission
0.7-1.2mm Heavy Duty Steel Metal Deck Roll Forming Machine Gearbox Transmission
0.7-1.2mm Heavy Duty Steel Metal Deck Roll Forming Machine Gearbox Transmission
0.7-1.2mm Heavy Duty Steel Metal Deck Roll Forming Machine Gearbox Transmission
Specifications
Brand Name :
TGMCO
Certification :
SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$40000-$6000/set
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
90 days after receipt of down payment
Packaging Details :
Export standard sea package with film and steel, other spare parts and some small parts are packed in plywood box
Name :
Metal Deck Roll Forming Machine
Coil Material :
Steel Stainless Steel
Coil Thickness :
0.7-1.2mm
Line Speed :
0-18m/min(exclude punch an cut off)
Forming Station :
38 stations
Main Roll Former Type :
wall panel and chain drive
Main Motor Power :
30kw (15kw x2)
Hydraulic System Power :
5.5kw
PLC :
Panasonic/Siemens
Inverter :
Ysakawa
Encoder :
Omron
Voltage :
380v 50Hz 3Phases (customized)
Main Shaft Diameter :
Φ65mm
Warranty :
1 year
Description

0.7-1.2mm Hydraulic Cutting Floor Deck Roll Forming Machine

A. Summary

This machine use metal coil as material, through decoiler, roll former, automatic length sizing, cut off to form special size profile. The whole line use PLC control, AC frequency control to realize continuous automatic production.

B. Machine Components

Components Qty
Decoiler 1 set

Roll former

(include feeding, roll former, hydraulic cut off)

 1 set
Exit rack 2 sets
Electrical control system 1 set
Hydraulic control system 1 set

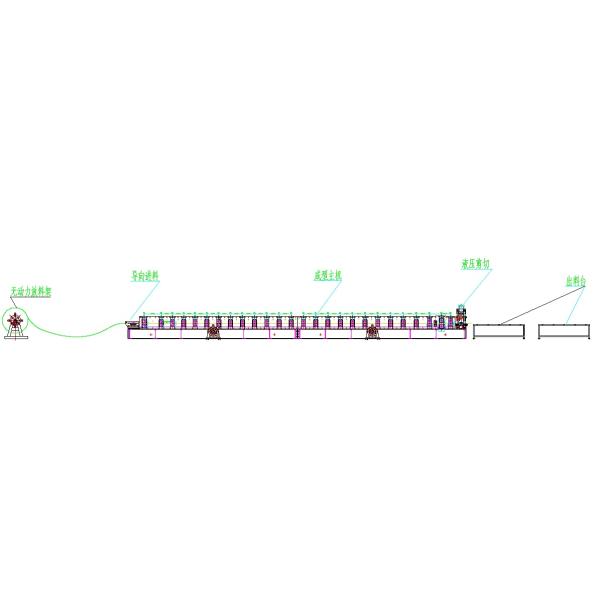

C. Drawing

0.7-1.2mm Heavy Duty Steel Metal Deck Roll Forming Machine Gearbox Transmission

D. Technical Flow

Passive decoiler → entry guide → roll former → fixed length cut off → exit rack

0.7-1.2mm Heavy Duty Steel Metal Deck Roll Forming Machine Gearbox Transmission

E. Main Technical Parameters

  1. Decoiler: passive uncoiling, manual expansion
  2. Coil weight: max 10 tons
  3. Coil ID: Φ508 mm
  4. Decoiler frame: square pipe welding
  5. Roll former guide feeding stand: side hand wheel type

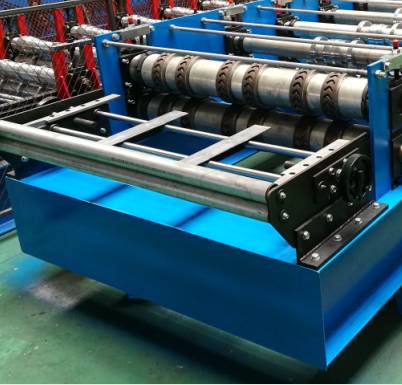

0.7-1.2mm Heavy Duty Steel Metal Deck Roll Forming Machine Gearbox Transmission

  1. Former type: wall panel and chain drive
  2. Frame: welded H-beam
  3. Shaft diameter: Φ85mm
  4. Roll former motor power: 30kw(15kw x2)
  5. Roll former speed: 0-18m/min (exclude punch an cut off time)
  6. Forming station: about 38 stations(including packing roller)
  7. Roller material: high quality carbon steel(HB220-260), packing roller material: Gcr15 HRC58-62.
  8. Roller mould surface treatment: Hard chromium coated
  9. Coil thickness: 0.7-1.2 mm
  10. Blank size: 1250mm
  11. Length tolerance: ±1.5mm
  12. Cut structure: 4 guide post
  13. Cut-off type: hydraulic cut-off
  14. Shear blade material: Cr12mov(HRC58-62)
  15. Shear blade heat treatment hardness: HRC58-62°

0.7-1.2mm Heavy Duty Steel Metal Deck Roll Forming Machine Gearbox Transmission

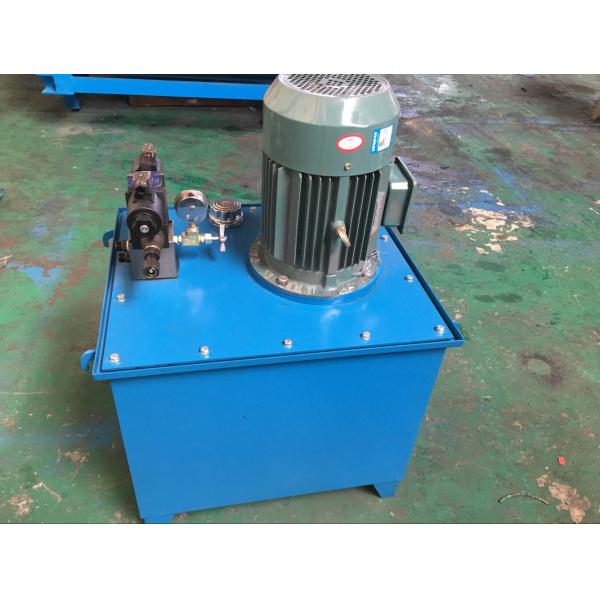

21. Hydraulic system power: 5.5kw

22. Hydraulic system solenoid valve : Beijing Huade

23. Hydraulic oil pump: gear pump

0.7-1.2mm Heavy Duty Steel Metal Deck Roll Forming Machine Gearbox Transmission

24. Inverter:Yaskawa

25. Panasonic

26.Touch screen:MCGS

27．Exit rack: 2 sets
