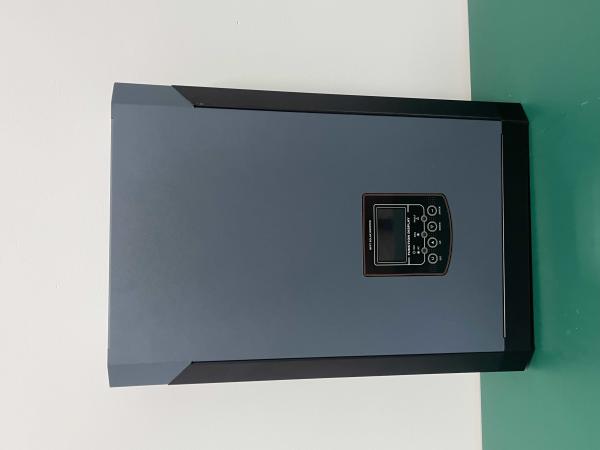

USB / RS232 Interface Off Grid Solar Inverter 2kw 3kw 4kw 5kw 6kw
USB / RS232 Interface Off Grid Solar Inverter 2kw 3kw 4kw 5kw 6kw
USB / RS232 Interface Off Grid Solar Inverter 2kw 3kw 4kw 5kw 6kw
USB / RS232 Interface Off Grid Solar Inverter 2kw 3kw 4kw 5kw 6kw
USB / RS232 Interface Off Grid Solar Inverter 2kw 3kw 4kw 5kw 6kw
USB / RS232 Interface Off Grid Solar Inverter 2kw 3kw 4kw 5kw 6kw
USB / RS232 Interface Off Grid Solar Inverter 2kw 3kw 4kw 5kw 6kw
USB / RS232 Interface Off Grid Solar Inverter 2kw 3kw 4kw 5kw 6kw
Specifications
Brand Name :
ZGD
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 sets
Price :
$340.00/Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
7~15 working days
Packaging Details :
Carton packaging
Voltage :
230VAC ± 5%
Size :
100 x 270 x 350mm
Output Current :
80A
Warranty :
12 Months
Rated Power :
2500W
Output Frequency :
50/60HZ
Description
Product Paramenters
MODEL NAME
HMK PLUS (WITHOU BATTERY) CHEAPER
RATED POWER
2500W
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
230VAC ± 5%
Surge Power
5000VA
Efficiency (Peak) PV to INV.
97%
Efficiency (Peak) Battery to INV.
94%
Transfer Time
10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform
Pure sine wave
BATTERY & AC CHARGER
Battery Voltage
24 VDC
Floating Charge Voltage
27 VDC
Overcharge Protection
33 VDC
Maximum Charge Current
80 A
SOLAR CHARGER
Maximum PV Array Power
3000W
MPPT Range @ Operating Voltage
80 ~ 430 VDC
Maximum PV Array Open Circuit Voltage
450 VDC
Maximum Charging Current
80A
Maximum Efficiency
98%
PHYSICAL
Dimension, D x W x H (mm)
100 x 270 x 350
Net Weight (kgs)
8.5
Communication interface
USB/RS232
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
0°C - 55°C
Storage Temperature
–15°C - 60°C
Features
* Pure Sine wave inverter

* Configurable input voltage range for home appliances and personal computer via LCD setting

* Configurable battery charging current based on applications via LCD setting

* Configurable AC/Solar Charger/Controller priority via LCD setting

* Compatible to mains voltage or generator power

* Auto restart while AC is recovering

* Overload/Over temperature/ Short circuit protection

* MPPT Smart battery charger controller design for optimized battery performance

* Cold start function
