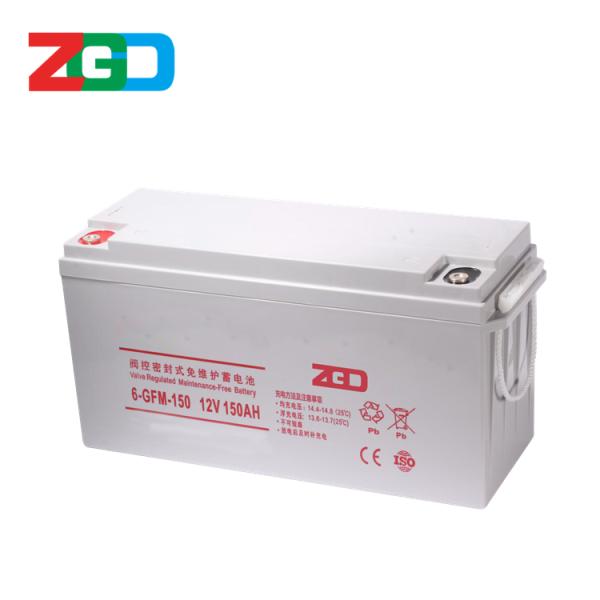

Rechargeable 12V 150AH UPS Lead Acid Battery For Emergency Power Supply Illumination
Rechargeable 12V 150AH UPS Lead Acid Battery For Emergency Power Supply Illumination
Rechargeable 12V 150AH UPS Lead Acid Battery For Emergency Power Supply Illumination
Rechargeable 12V 150AH UPS Lead Acid Battery For Emergency Power Supply Illumination
Specifications
Brand Name :
ZGD
Certification :
ce
Model Number :
ZGD-B12150
Place of Origin :
Guangdong, China
Packaging Details :
Carton
Supply Ability :
100000 Piece/Pieces per Month
Price :
$200.00/Pieces 1-9 Pieces
MOQ :
1
Payment Terms :
T/T, Western Union, L/C
Delivery Time :
10-15 work days
Warranty :
3months-1year, 1 Year
Application :
Toys, Power Tools, Home Appliances, Consumer Electronics, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Size :
150AH 12V
Weight :
39kg
Material :
High Pure Lead
Usage :
Telecom
Battery type :
Lead Acid Battery
Voltage :
12V
Capacity :
100AH
Color :
White
Terminal :
Copper
Sealed Type :
Dry Flooded
Port :
Shenzhen
Description

UPS Lead-acid Battery 12V 150AH Battery For UPS Emergency Power Supply Illumination

Features
Maintenance free battery
As the battery is sealed, it can change the gas produced when it works into waterto supply the battery. So it's not necessary to add the water.
Perfect sealed status
Our battery is sealed and safe in expiry date, as well as environmental production and no corrosion. Battery can be kept flat and vertically placed when it works.
Electrify rapidly
Power on time is short, and battery can be charged fully in a short time so that saving the time and power.
Safe Explosion -proof exhaust system
This function aims to protect battery from bloating when it's used in abnormal condition.
Excellent electric conductivity
Battery terminal is red copper and silver plating with excellent electric conductivity so that battery can discharge maximally.
Mainly applied for electric systems, security systems, medical equipment, shipping systems, telecommunications equipment, various testing machines, radio transceiver, the banking uninterruptible power supply system, railway locomotives, railway communications, emergency lighting systems, small lamps, large UPS and computer backup power, fire extinguishing systems, electronic equipment ,solar power system (off-grid solar power system, solar street light system, solar garden light system) and wind power system, non-traction battery.

Rechargeable 12V 150AH UPS Lead Acid Battery For Emergency Power Supply IlluminationRechargeable 12V 150AH UPS Lead Acid Battery For Emergency Power Supply Illumination

Internal resistance (Fully charged,25℃) Approx.6.5m Ω
Capacity affected by temperature (10HR) 40℃ 102%
25℃ 100%
0℃ 85%
-15℃ 65%

Self-discharge(25℃)

 3 months Remaining Capacity:91%
6 months Remaining Capacity:82%
12 months Remaining Capacity:65%
Nominal operating temperature 25℃ ±3℃(77℉±5℉)
Operating temperature range Discharge -15℃~50℃(5℉~122℉)
Charge -10℃~50℃(14℉~122℉)
Storage -20℃~50℃(-4℉~122℉)
Float charging voltage(25℃)

13.50 to 13.80V Temperature compensation:-18mV/℃
Cyclic charging voltage(25℃)

14.50 to 15.00V Temperature

compensation:-30mV/℃
Maximum charging current 19.5A
Maximum discharge current 650A(5 sec.)
Designed floating life(20℃) 10years

Model Rated Voltage Rated Capacity Demision(mm) Weight
Type (V) (AH) L W H (kg)
ZGD-B124 12 4 90 70 108 1.5
ZGD-B127 12 7 151 65 100 2.1
ZGD-B1212 12 12 151 98 102 3.4
ZGD-B1217 12 17 181 77 167 5.5
ZGD-B1224 12 24 166 126 181 7.5
ZGD-B1238 12 38 197 166 181 12
ZGD-B1265 12 65 351 167 183 19
ZGD-B12100 12 100 330 174 238 30
ZGD-B12120 12 120 408 174 237 32
ZGD-B12150 12 150 482 170 240 39
ZGD-B12200 12 200 522 239 245 57
ZGD-B12300 12 300 520 268 249 73
