Aluminium Alloy Adsorption Dryer 1000m3/H CE Standard 10bar 200kW
Aluminium Alloy Adsorption Dryer 1000m3/H CE Standard 10bar 200kW
Aluminium Alloy Adsorption Dryer 1000m3/H CE Standard 10bar 200kW
Aluminium Alloy Adsorption Dryer 1000m3/H CE Standard 10bar 200kW
Specifications
Brand Name :
Custom
Model Number :
Custom
Certification :
ASME\CE\DOSH\EAC\CRN
Place of Origin :
China
MOQ :
1 set
Price :
Contact Us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 sets per month
Delivery Time :
20-60 working day
Packaging Details :
According to customer's requirement
Cooling Method :
Air Cooling
Dimensions :
L*W*H=500*400*400mm
Material :
Aluminium Alloy
Max Ambient Temperature :
50°C
Max Flow :
1000m3/h
Max Pressure :
10bar
Max Vacuum :
90kPa
Noise Level :
68-76dB(A)
Oil Capacity :
1.5-3.5L
Oil Type :
Mineral
Power Range :
2-200kW
Product Name :
Atlas Copco Air End
Speed Range :
750-3600rpm
Vibration Level :
≤2.5mm/s
Weight :
90-250kg
Description

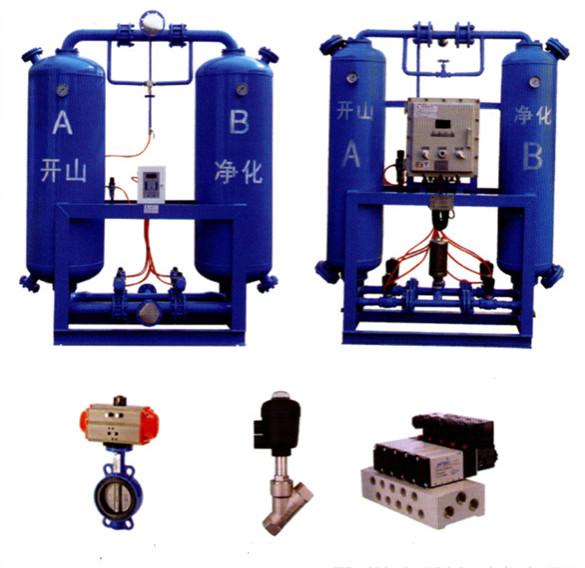

Micro heat regeneration adsorption dryer - suction dryer
Operating conditions and technical indicators
Design pressure dew point: Standard type -20 ° C (can provide -40 ° C, -70 ° C products)
Intake temperature: 20-45 ° C
Working pressure: 0.6-1.OMpa
Desiccant: Standard type activated alumina, low dew point product activated alumina and 5A molecular sieve combination
Working mode: Two adsorption cylinders work alternately and continuously
Control method: microcomputer program control
Intake oil content: ≤ 0.1PPM
Pressure loss: ≤ 3% of inlet pressure
Regeneration gas volume: ≤ 6-8%
Regeneration method: micro thermal regeneration
Heater voltage: 1-8Nm3/min, 380V for 220V1ONm3/min and above
Cycle: 1-20Nm3/min, 120 minutes; 25~50Nm3/min, 240 minutes;

Flow chart of micro heat regeneration adsorption dryer - suction dryer
Adsorption drying cylinder: A.B
Pneumatic valve: 1.2.3.4
Diffuser: 5.6.9.10
Pressure gauge: 7.8
Check valve: 11.12.13.14
Regulating valve: 15.17
Restriction orifice plate: 16
Air source regulator: 18
Electromagnetic valve group: 19
Program control box: 20
Exhaust silencer: 21
Electric heater: 22
Micro heat regeneration adsorption dryer - supports ASME/CE/EAC/PED/DOSH standards
