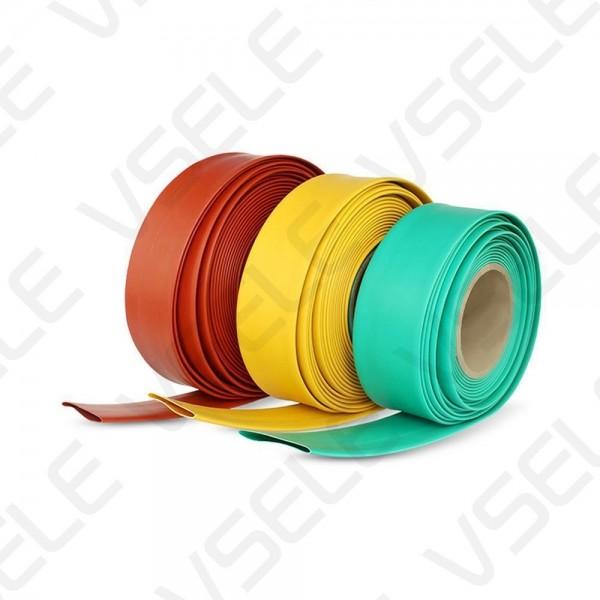

HTS-H series 10kV & 35 kV thermal shrinkable busbar protective bushing
HTS-H series 10kV & 35 kV thermal shrinkable busbar protective bushing
Specifications
Place of Origin :
CHINA
Brand Name :
VSELE
Delivery Time :
5~30days According to the order quantity
Payment Terms :
T/T, Paypal, Western union, L/C etc.
Name :
HTS-H series 10kV & 35 kV thermal shrinkable busbar protective bushing
Material :
PE
Hardness (Shore A) :
＜80
Density(kg/㎥) :
1.15×10³
Water absorption(%) :
＜0.5
Full shrinking temperature(℃) :
130±5
MOQ :
100pcs
Price :
0.1-10
Supply Ability :
1000pcs per day
Description

Major performance indexes of MPG series thermal shrinkable busbar protective bushing


●Hardness (Shore A): ＜80
●Density(kg/㎥): 1.15×10³
●Water absorption(%): ＜0.5
●Full shrinking temperature(℃): 130±5
●Radial shrinking ratio(%): ＞50
●Axial shrinking ratio(%): ＜5.0
●Tensile strength(Mpa): ＞12.0
●Elongation at break(%): ＞400
●Breakdown strength(kV/mm): ≥25
●Volume resistivity(Ω.cm): ＞1×10
●Oxygen index : ≥30
●Eccentricity(%): ＜30
Comparison between earth and phase distance before and after the use of MPG series

System
voltage
(kV)		 Ordinary
insulation
distance
(mm)		 Insulation distance after using
MPG10 series		 Insulation distance after using
MPG35 series
To the earth (mm) Between phase (mm) To the earth (mm) Between phase (mm)
10 120 80 70 50 40
22 220 160 120 105 75
35 320 - - 200 150

Note: Information in the above table is for reference only. The actual data may vary due to the power
distribution system and environment.
