FR4 Tg150 Gold Plated 2 Layers PCB Board With V Cut Routing Inside
FR4 Tg150 Gold Plated 2 Layers PCB Board With V Cut Routing Inside
FR4 Tg150 Gold Plated 2 Layers PCB Board With V Cut Routing Inside
FR4 Tg150 Gold Plated 2 Layers PCB Board With V Cut Routing Inside
FR4 Tg150 Gold Plated 2 Layers PCB Board With V Cut Routing Inside
FR4 Tg150 Gold Plated 2 Layers PCB Board With V Cut Routing Inside
Specifications
Brand Name :
IBE
Model Number :
IBE-9248
Certification :
ISO 9001,ISO14001,UL
Place of Origin :
Made in China
MOQ :
1pc
Price :
USD1.9 unit
Payment Terms :
T/T, L/C
Supply Ability :
100000sqm each month
Delivery Time :
2-3 weeks
Packaging Details :
Vacuum bag+humidity indicator+carton
material :
FR4 Tg150
colour :
green,yellow,blue
copper thickness :
2.5oz
Acceptable standard :
IPC-A-610F Class II or III
+hard gold platedSurface :
gold plated
Type :
Custom made
Product name :
Printed circuit board
Application :
industry
pcb Test :
Electrical test
Min.hole size :
0.15mm
silkscreen color :
white,yellow
layers :
2
size :
123*210mm
Description

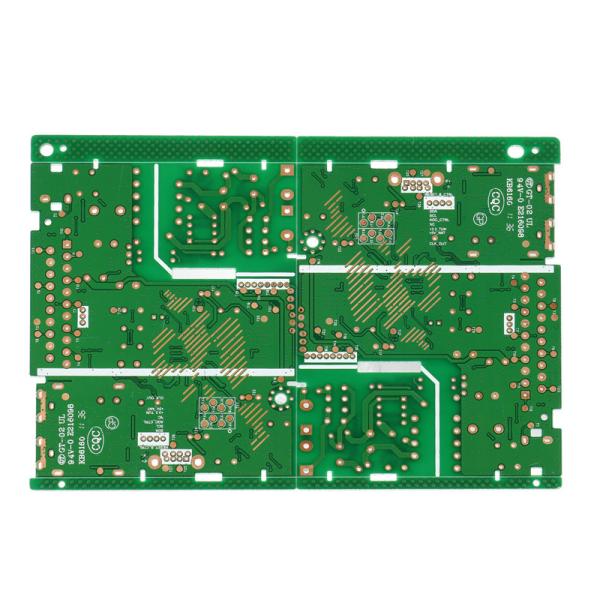

2 layers PCB gold plated with V-cut and routing inside and breakaway tab

IBE Electronics Limited was established in 2005, provide one-stop services for PCB manufacturing , component sourcing, PCB assembly and testing .We have own pcb factories and SMT production lines, and a variety of professional testing equipments, company owned experienced professional and technical R & D technology team, young and professional sales and customer service teams, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders.

2 layers PCB gold plated with V-cut and routing inside and breakaway tab:

1 Material PR4,Tg150
2 Board Thickness 1.6mm+/-10%
3 Surface Finish Gold plated
4 PCB Panel Size 256*220/2
5 Layer 2
6 Min. Drill Hole Size 0.15mm
7 PCB QC Electrical test and automatically hole inspection; Appearance automatic detection
8 Speciality Automotive
9 Sanforized Impedance Control

IBE provide High quality and super service to provide quick turn and mass production on rigid PCB:

Technical Capability of rigid PCB
Item Mass production Small batch production
Number of Layers UP TO 18L UP TO 36L
Laminate FR-4,Halogen free, High TG,Cem-3,Al/copper based,high frequency
Maximum board size 610*460mm 1200*600mm
Board thickness 0.3-3.5mm 0.2-6.0mm
Minimum line width/space 3/3 mil 3/3 mil
Minimum line/space tolerance +/-20% +/-10%
Max.Outer layer copper thickness 140um 210um
Max.Inner layer copper thickness 105um 175um
Min. finished hole size(Mechanical) 0.2mm 0.15mm
Min. finished hole size (laser hole) 0.075mm 0.075mm
Aspect ratio 10:1 12:1
Solder Mask Color Green, Blue, Black,White,Yellow,Red
Impedance control Tolerance <=+/-10%
Surface treatment Flash Gold 0.025-0.075um 0.025-0.5um
Immersion Gold 0.025-0.1um 0.1-0.2um
Sn/Pb Hasl 1-40um
Leadfree Hasl 1-70um
Immersion Silver 0.08-0.3um
OSP(Entek) 0.2-0.4um
Gold Finger(Hard Gold Plating ) 10u''-50u''
Other surface treatment also available such as Nickel palladium

IBE Focus on one stop solution
