Nickle Plated Pneumatic Quick Connect Coupling In Brass LSQ-17 Rectus 17KA
Nickle Plated Pneumatic Quick Connect Coupling In Brass LSQ-17 Rectus 17KA
Specifications
Brand Name :
SONGQIAO
Model Number :
LSQ-17
Place of Origin :
Ningbo,China(Mainland)
Supply Ability :
50,000pcs/day, according the capacity of the assbemly workshop
Delivery Time :
within 30 days or as per customers' requirement.
Packaging Details :
standard exporting package or as per customers' requests.
MOQ :
negotiable
Price :
negotiable
Standard :
Rectus 17KA
WP :
Working pressures 1.0Mpa
Material :
BRASS
WT :
-20C to +120C
Description

LSQ-17 Rectus 17KA, Pneumatic Couplings in Brass, Nickle plated

Descripton:

LSQ-17 CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS)
→ Features: Single operation, single shut-off.
→ Advantages: Single operation, High flow valve.
→ Application: pneumatic tools, measure and control equipments, and compressed air.
→ Interchangeability: Rectus 17KA series.
→ Working Pressure: 1.0Mpa.
→ Working Temperature: -20℃ to +120℃.

Nickle Plated Pneumatic Quick Connect Coupling In Brass LSQ-17 Rectus 17KA

PART NO. LS D HEX1 A T d
LSQ-17-02SM 62.5 23.3 19 13 ZG1/4 7
LSQ-17-03SM 59.5 23.3 19 13 ZG3/8 11
LSQ-17-04SM 60 23.3 22 14 ZG1/3 14


Nickle Plated Pneumatic Quick Connect Coupling In Brass LSQ-17 Rectus 17KA

PART NO. LP D HEX1 A T d
LSQ-17-02PM 44 25 14 13 ZG1/4 4.6
LSQ-17-03PM 44.5 25 17 13 ZG3/8 4.6

Nickle Plated Pneumatic Quick Connect Coupling In Brass LSQ-17 Rectus 17KA

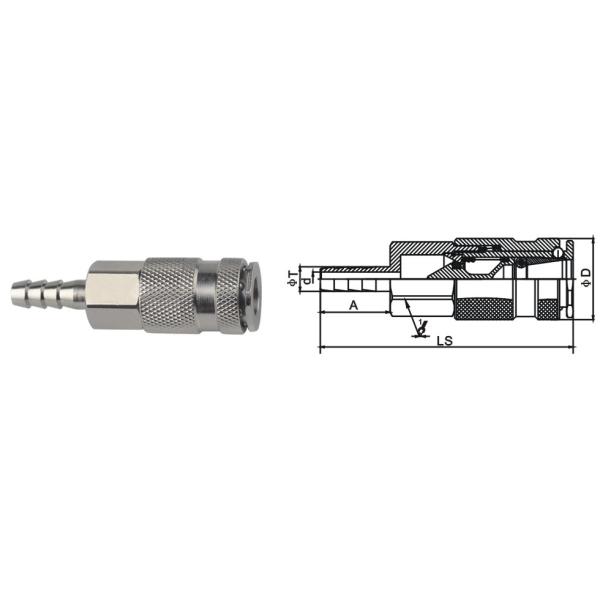

PART NO. LS D HEX1 A T d
LSQ-17-02SF 58 23.3 19 10 G1/4 14
LSQ-17-03SF 57 23.3 19 9 G3/8 14
LSQ-17-04SF 60 23.3 24 12 G1/2 14

Nickle Plated Pneumatic Quick Connect Coupling In Brass LSQ-17 Rectus 17KA

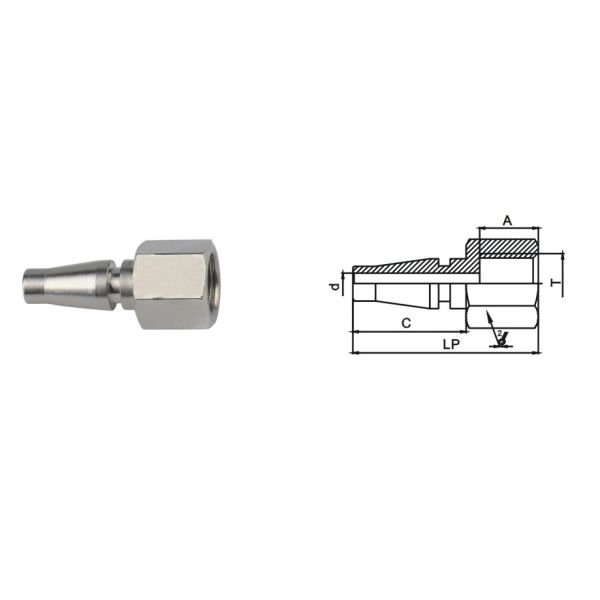

PART NO. LP D HEX1 A T d
LSQ-17-02PF 41 25 17 13 G1/4 4.6
LSQ-17-03PF 41 25 19 13 G3/8 4.6

Nickle Plated Pneumatic Quick Connect Coupling In Brass LSQ-17 Rectus 17KA

PART NO. LS D HEX1 A T d
LSQ-17-01SH 72.5 23.3 19 20 7 4
LSQ-17-02SH 76 23.3 19 25 9 5
LSQ-17-03SH 76 23.3 19 25 11 7.5


Nickle Plated Pneumatic Quick Connect Coupling In Brass LSQ-17 Rectus 17KA

PART NO. LP D HEX1 A T d
LSQ-17-01PH 47.5 25 15 20 7 4.6
LSQ-17-02PH 52.5 25 15 25 9 4.6
LSQ-17-03PH 52.5 25 15 25 11 4.6
