Specifications
Brand Name :
CNQY
Description
Drilling and Milling Machine
Key Features
  • High precision grinding all steel spindle
  • High strength with square column
  • Good strength gear grinding, low noise
  • Headstock tilts left and right
  • Wide electrical box, easy operation
  • High precision manual feeder
  • Depth ruler, easy operation and read

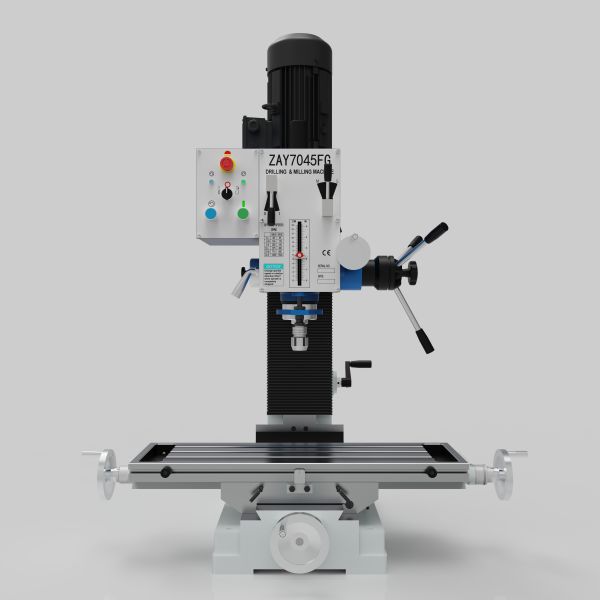

Technical Specifications - Model ZAY7045FG
Max. drilling capacity 45mm
Max. tapping capacity 20mm
Max. face milling capacity 80mm
Max. end milling capacity 32mm
Max. distance from spindle nose to table 458mm
Min. distance from spindle axis to column 289mm
Spindle travel 130mm
Spindle taper MT4 or R8
Step of spindle speed 6 steps
Range of spindle speed 50HZ 80-1250 rpm
Range of spindle speed 60HZ 95-1500 rpm
Swivel angle of headstock (vertical) ±45°
Table size 800*240mm
Forward and backward travel of table 210mm
Left and right travel of table 500mm
T-slot size 16mm
T-slot spacing 60mm
Motor power 1.5kw (2HP)
Net weight / Gross weight 300/325kg
Packing size (L*W*H) 770*880*1160mm
Loading amount / 20" container 36pcs
