4.8mm straw hat Clear Leds|straw hat LEDs|straw hat Lamps| straw hat|Light Bulbs|4.8mm straw hat Clear Lens
4.8mm straw hat Clear Leds|straw hat LEDs|straw hat Lamps| straw hat|Light Bulbs|4.8mm straw hat Clear Lens
Specifications
Place of Origin :
china
Brand Name :
Queendom
MOQ :
1000
Delivery Time :
7-15
Payment Terms :
T/T
Model Number :
F4.8mm LEDs
Certification :
SGS certificate in linewith EU ROHS, EN60425, REACH standards
Packaging Details :
Tray: 1000PCS/bag anti-static bag
Description

Model: 4.8mm straw hat Clear Leds Size: 4.8mm

4.8mm straw hat Clear Leds|straw hat LEDs|straw hat Lamps| straw hat|Light Bulbs|4.8mm straw hat Clear Lens

4.8mm straw hat Clear Leds|straw hat LEDs|straw hat Lamps| straw hat|Light Bulbs|4.8mm straw hat Clear Lens

Peak parameters:

Ø Absolute Maximum Rating(At TA=25°C) Symbol Ratings Units
Parameter PD 60 mW
Continuous Forward Current IF 20 mA
Peak Forward Current ＊1 IFP 100 mA
Reverse Voltage VR 5 V
Thermal Resistance Junction To Board RΘJ-B / °C/W
Operating Temperature Range TOPR Minus 30°C To plus 60°C
Storage Temperature Range TSTG Minus 40°C To plus 80°C
Manual Solding Temperature TSOL 260°C± 10°C For 3~5 Seconds
ESD Sensitivity ESD 2000V HBM

Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

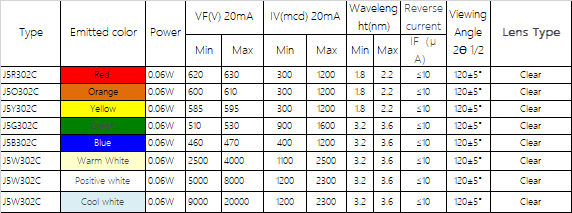

Product number::Absolute Maximum Rating(At TA=25°C)

4.8mm straw hat Clear Leds|straw hat LEDs|straw hat Lamps| straw hat|Light Bulbs|4.8mm straw hat Clear Lens

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
