Specifications
Place of Origin :
china
Brand Name :
Queendom
MOQ :
1000
Delivery Time :
7-15
Payment Terms :
T/T
Model Number :
f10
Certification :
EU ROHS, EN60425, REACH
Packaging Details :
Packing: 500-1000pcs/bag inanti-static bag
Description

Model: 10mm bullet Leds -Clear Leds Size: φ10mm

10mm bullet Leds|10mm bullet LED source|10mm bullet leds lights|10mm bullet Lamps|bullet light source

10mm bullet Leds|10mm bullet LED source|10mm bullet leds lights|10mm bullet Lamps|bullet light source

Peak parameters:

Ø Absolute Maximum Rating(At TA=25°C) Symbol Ratings Units
Parameter PD 60 mW
Continuous Forward Current IF 20 mA
Peak Forward Current ＊1 IFP 100 mA
Reverse Voltage VR 5 V
Thermal Resistance Junction To Board RΘJ-B / °C/W
Operating Temperature Range TOPR Minus 30°C To plus 60°C
Storage Temperature Range TSTG Minus 40°C To plus 80°C
Manual Solding Temperature TSOL 260°C± 10°C For 3~5 Seconds
ESD Sensitivity ESD 2000V HBM

Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.

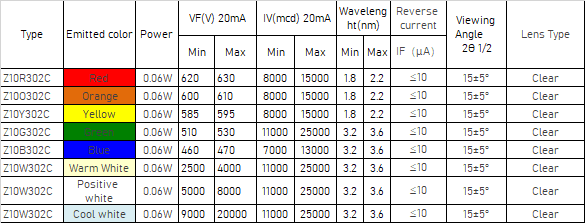

Product number::Absolute Maximum Rating(At TA=25°C)

10mm bullet Leds|10mm bullet LED source|10mm bullet leds lights|10mm bullet Lamps|bullet light source

Notes:

Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2

is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from

the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
