High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
Specifications
Brand Name :
SF
Model Number :
JGS2
Certification :
ISO9001/SGS/ROHS/CE
Place of Origin :
China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10,000 pieces per month
Delivery Time :
5-15 work days
Packaging Details :
plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
SiO₂ Content :
99.9%
Description
High Purity Fused Silica Quartz Glass Plate High Temperature Resistant

High Temperature Resistance Quartz Glass Plate with 92% Light Transmittance

Product Overview

Heat Resistance Thicker Clear Fused Silica Quartz Glass Sheet With High Transmittance

Clear High Temperature Resistance JGS1 GE214 Fused Silica Quartz Disc

Customized fused quartz glass plates with 92% light transmittance and 2.2g/cm³ density, available in customized shapes and specifications.

High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
Custom Manufacturing Capabilities

We produce shaped quartz plates according to customer samples or technical drawings. Additional specifications including tolerance, polish level, and translucency can be customized to meet specific requirements.

Applications
  • Machinery and metallurgy
  • Printing and dyeing equipment
  • Optical instruments
  • High temperature sight glasses
  • Fire hole industries
  • Electric light source equipment
  • Laboratory instruments
  • Chemical apparatus
Quartz Plate Characteristics
Property Value
SiO₂ Content 99.9%
Density 2.2 g/cm³
Hardness (Moh's Scale) 6.6
Melting Point 1732℃
Working Temperature 1100℃
Maximum Short-term Temperature 1450℃
Visible Light Transmittance Above 93%
UV Spectral Region Transmittance 80%
Annealing Point 1180℃
Softening Point 1630℃
Strain Point 1100℃
Material Specifications
Type JGS1 (ZS-1) JGS2 (ZS-2) JGS3 (HS)
Spectral Characteristics 180-2500nm 200-2500nm 260-3500nm
Average Transmittance 90% 85% 85%
Bubble Class 0 2 2
Birefringence 1-2 1-2 1-2
Grain Structure 1 2 2
Fringe 1-2 2 2
Uniformity 1-2 2 2
Fluorescence 1 2 2
Radiation Performance Does not change color Slight discoloration Changes color

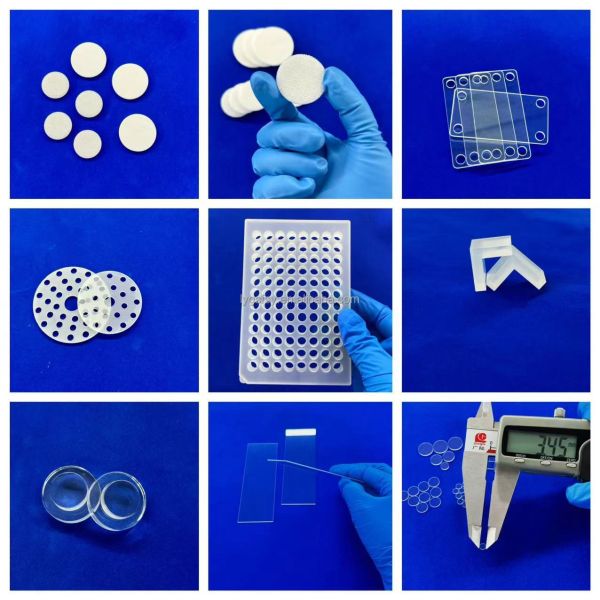

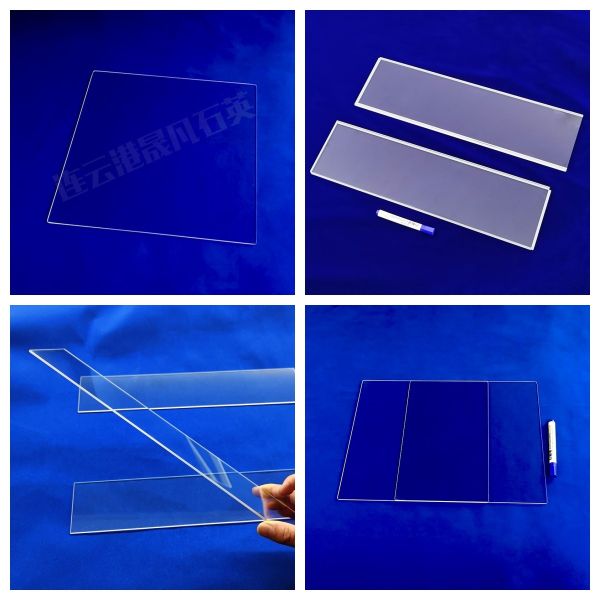

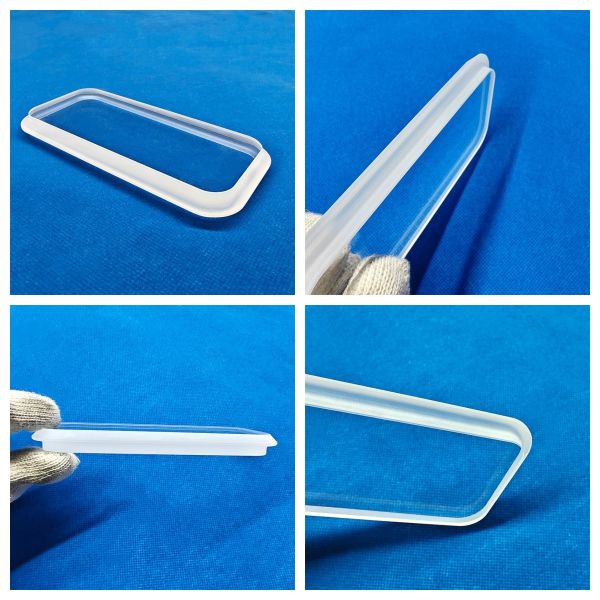

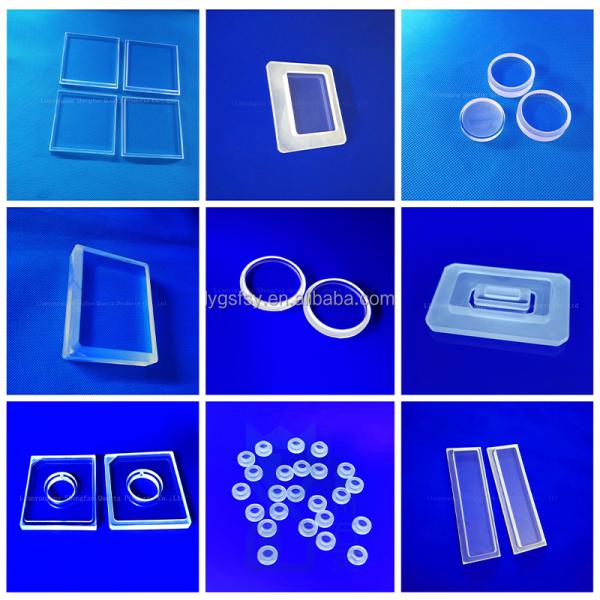

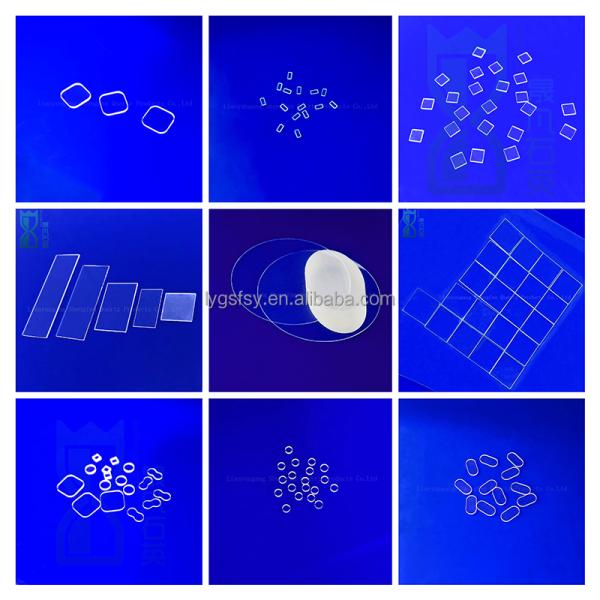

Product Display
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
Production Process
  1. Raw Material
  2. Single Line Cutting
  3. Milling and Grinding Machine
  4. Coarse Grinding
  5. Fine Grinding
  6. Polishing
  7. CNC Machining
High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
Company Profile

Lianyungang Shengfan Quartz Product Factory is a professional manufacturer specializing in research and development of quartz plates, quartz tubes, quartz flanges, quartz rings, cuvettes, and quartz instruments. Located in China Crystal Capital - Donghai City, Jiangsu Province, China, 70 km from Lianyungang port with convenient transportation.

Operating with the philosophy of Technology Orientation, Quality First, Integrity and Responsibility, Sustainable Operation, the company dedicates to establishing an international enterprise with standard and sustainable operation capability.

High Temperature Resistant Fused Silica Quartz Glass Plate with 92% Light Transmittance and Customizable Shapes
Frequently Asked Questions
Q1. Can I have a sample order?
Yes, we welcome sample orders to test and check quality.
Q2. What about the delivery time?
Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
Low MOQ, 1pc for sample checking is available.
Q4. How to proceed an order in your factory?
  • Provide your requirements or application
  • We quote according to your requirements or our suggestions
  • Customer confirms samples and places deposit for formal order
  • We arrange production
Q5. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT are available for small orders (3-5 days delivery). Airline and sea shipping are also available.
