Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Specifications
Material :
SIO2>99.99%
Package :
Wooden Cases,standard export package,foam and carton
Product Name :
Quartz Glass Plate
Diameter :
10mm-600mm,Customized
Hardness :
Morse 6.5
Shape :
Circular Shape,Square,Arc,Rectangle or could customize based drawing.,round
Product name :
best purity Quartz Glass Plate,Clear small size fused silica quartz plate with holes,quartz plate,transparent uv quartz glass plate,HM clear polished Fused Quartz Glass plate
MOQ :
1 pieces
Certification :
ISO9001/SGS/ROHS/CE
Tolerance :
±0.02mm
Type :
Clear Quartz Plate,Translucent Quartz Plate,slice,target,round or customized
Purity :
99.99%,more than 99.99%,>99.8%;
Oem :
YES,Available
Supply Ability :
10,000 pieces per month
Price :
Negotiable
Working Temparature :
1150℃
Color :
Transparent,Clear,Frosted,opaque
Size :
Customer's Requirement,customize,base on customer's need
Brand Name :
SF
Delivery Time :
5-15 work days
Keywords :
Sight Glass,Clear Quartz Glass Windows,blocks glass,large quartz glass plate
Packaging Details :
plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Density :
2.2g/cm3
Model Number :
JGS2
Sample :
Customized
Application :
Semiconductor,Optical,sight glass,UV plate,Industry
Light Transimittance :
92%
Work temperature :
1100 Degrees Celsius,1100°C
Thickness :
0.5-100mm,1-100mm,customize,from 0.3mm to your requirement,1~20mm
Place of Origin :
China
Payment Terms :
L/C,T/T
Coating :
No coating,Custom Design,N/A
Working temperature :
1100℃,1200°C,1200 degree
Description
Custom High Temperature Resistant Fused Silica Quartz Glass Sheets & Discs
High Temperature Resistant Sapphire Quartz Tablets - Custom clear high temperature resistance glass plates featuring JGS1 fused silica quartz glass disc with exceptional thermal and optical properties. Available in all sizes with full customization for optical observation lenses.
Product Overview
Custom fused quartz glass plates featuring 92% light transmittance and 2.2g/cm³ density. Available in customized shapes and specifications to meet precise application requirements.
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom Manufacturing Capabilities
We produce shaped quartz plates according to customer samples or technical drawings. Additional specifications including tolerance, polish level, and translucency can be customized to meet specific requirements.
Applications
  • industrial complex
  • Machinery and metallurgy
  • Printing and dyeing equipment
  • Optical instruments
  • High temperature sight glasses
  • Fire hole industries
  • Electric light source equipment
  • Laboratory instruments
  • Chemical apparatus
Quartz Plate Characteristics
SiO₂ Content 99.9%
Density 2.2 g/cm³
Hardness (Moh's Scale) 6.6
Melting Point 1732℃
Working Temperature 1100℃
Maximum Short-term Temperature 1450℃
Visible Light Transmittance Above 93%
UV Spectral Region Transmittance 80%
Annealing Point 1180℃
Softening Point 1630℃
Strain Point 1100℃
Material Specifications
Type JGS1 (ZS-1) JGS2 (ZS-2) JGS3 (HS)
Spectral Characteristics 180-2500nm 200-2500nm 260-3500nm
Average Transmittance 90% 85% 85%
Bubble Class 0 2 2
Birefringence 1-2 1-2 1-2
Grain Structure 1 2 2
Fringe 1-2 2 2
Uniformity 1-2 2 2
Fluorescence 1 2 2
Radiation Performance Does not change color Slight discoloration Changes color

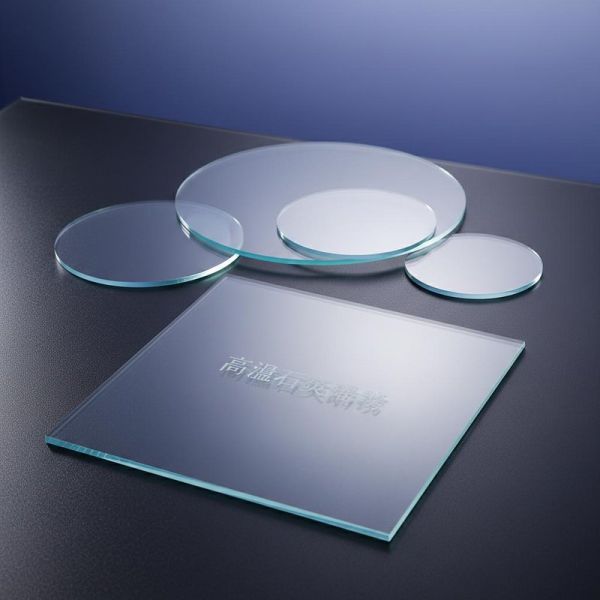

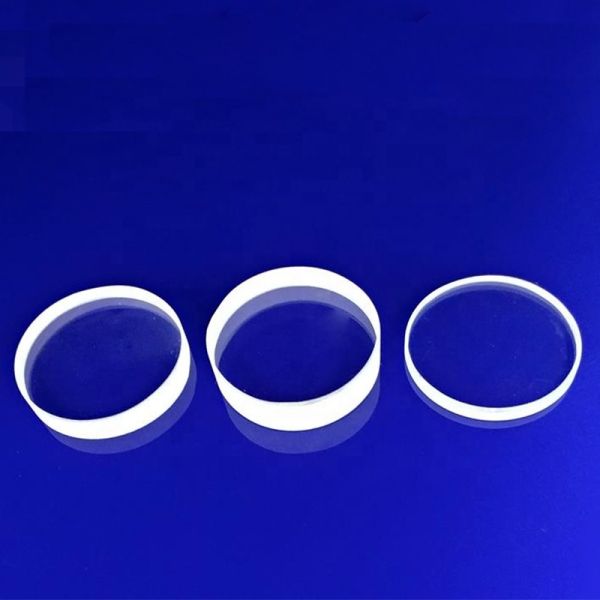

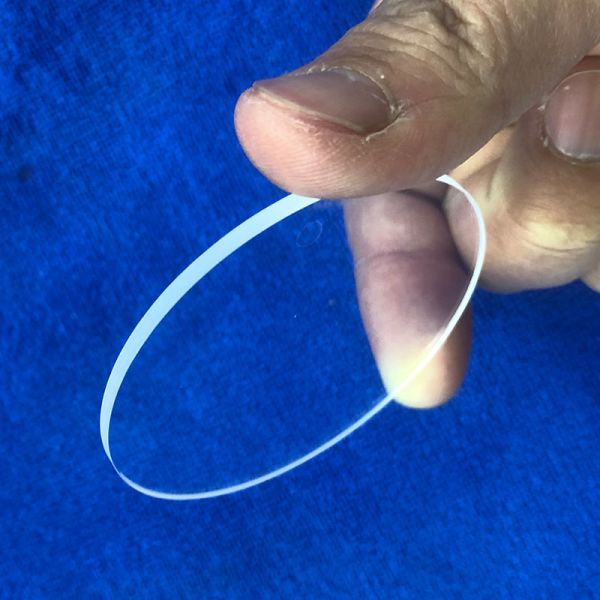

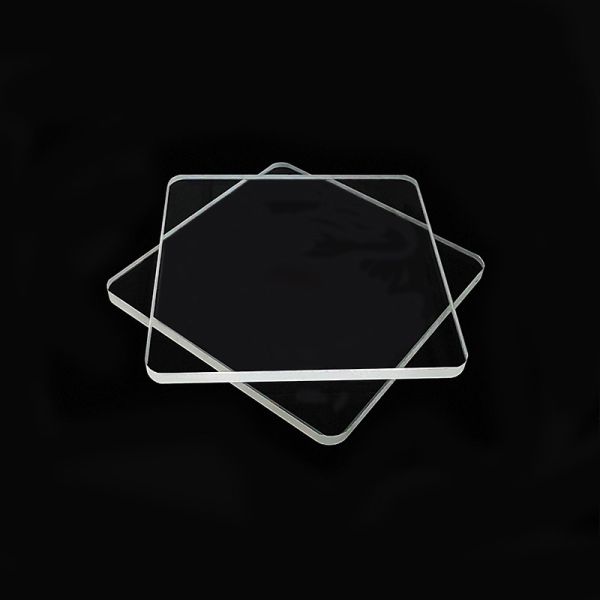

Product Display
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc

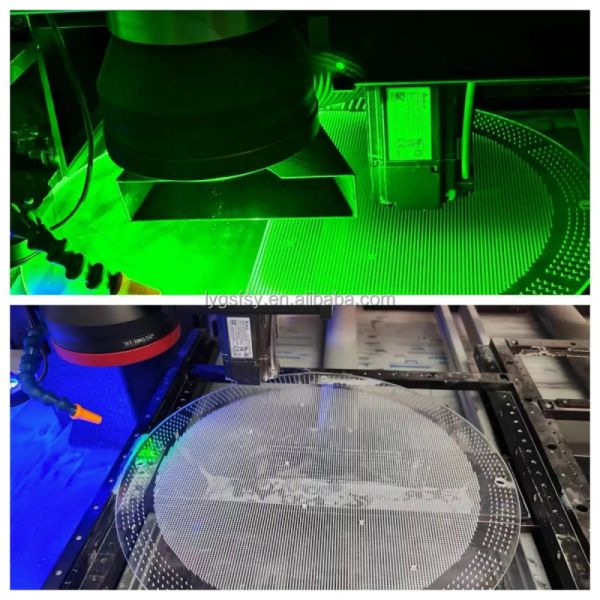

Production Process
  • Raw Material → Single Line Cutting → Milling and Grinding Machine → Coarse Grinding → Fine Grinding → Polishing → CNC Machining
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Company Profile
Lianyungang Shengfan Quartz Product Factory is a professional manufacturer specializing in research and development of quartz plates, quartz tubes, quartz flanges, quartz rings, cuvettes, and quartz instruments. Located in China Crystal Capital - Donghai City, Jiangsu Province, China, 70 km from Lianyungang port with convenient transportation. Operating with the philosophy of Technology Orientation, Quality First, Integrity and Responsibility, Sustainable Operation, the company dedicates to establishing an international enterprise with standard and sustainable operation capability.
Custom High Temperature Resistant Fused Silica Square Quartz Glass Sheet Round Quartz Disc
Frequently Asked Questions
Q1. Can I have a sample order?
Yes, we welcome sample orders to test and check quality.
Q2. What about the delivery time?
Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
Low MOQ, 1pc for sample checking is available.
Q4. How to proceed an order in your factory?
  • Provide your requirements or application
  • We quote according to your requirements or our suggestions
  • Customer confirms samples and places deposit for formal order
  • We arrange production
Q5. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT are available for small orders (3-5 days delivery). Airline and sea shipping are also available.
