300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
Specifications
Brand Name :
shengfan
Model Number :
T-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100,000 pieces per month
Delivery Time :
15 work days
Packaging Details :
plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Product Name :
Quartz Glass Tube
Material :
SIO2>99.99%
OD :
3-300mm
Light Transmittance :
>92%
Working Temparature :
1100℃
Hardness :
Mose 6.5
Resistance Value :
1000 times than ordinary glass
Application :
UVC Light
Description

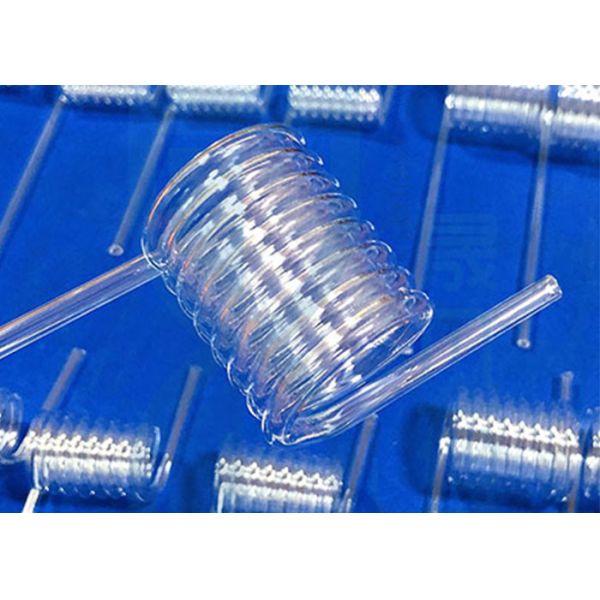

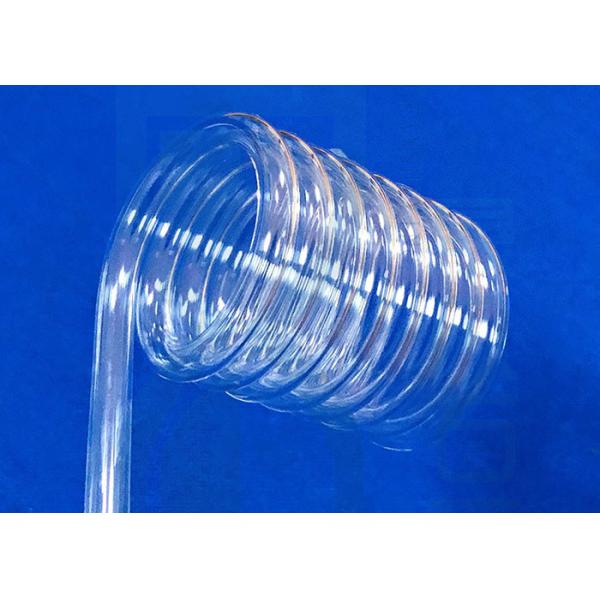

Clear Quartz Glass Coil Tubing - 300mm OD UVC Light Processing
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance 300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
End Lamps Quartz Glass Tube Thermoelectric Boiler
High temperature resistance quartz glass available in custom dimensions
Product Description
Fused clear silica quartz glass tube is manufactured from high purity quartz sand, offering excellent thermal shock stability and high transmittance. These tubes are widely used in electric lighting, laser applications, lenses, optical instruments, and high temperature windows.
Key Features
  • High purity: SiO₂ > 99.99%
  • Excellent visual and chemical performance: acid-resistance, alkali resistance, good thermal stability
  • Health care and environmental protection
  • No air bubbles and no air lines
  • Excellent electrical insulator
Applications
Halogen lamps, mercury lamps, single end lamps, automobile lamps, stage lamps, thermoelectric boilers, photocopier lamps, water treatment lamp casings, quartz ware and piping.
Quartz Glass Specifications
Type JGS1(ZS-1) JGS2(ZS-2) JGS3(HS)
Spectral characteristics 180-2500nm 200-2500nm 260-3500nm
The average transmittance 90% 85% 85%
Bubble class 0 2 2
Birefringence 1-2 1-2 1-2
Grain structure 1 2 2
Fringe 1-2 2 2
Uniformity 1-2 2 2
Fluorescence 1 2 2
Radiation Performance Does not change color Slight discoloration Change color
Shengfan Quartz Plate Characteristics
SiO₂ 99.9%
Density 2.2(g/cm³)
Degree of hardness moh' scale 6.6
Melting point 1732℃
Working temperature 1100℃
Max temperature can reach in a short time 1450℃
Visible light transmittance Above 93%
UV spectral region transmittance 80%
Annealing point 1180℃
Softening point 1630℃
Strain point 1100℃
300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance 300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance 300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance 300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance 300mm OD Clear Quartz Glass Tube for UVC Light with High Temperature Resistance
Company Profile
Lianyungang Shengfan Quartz Product Factory is a professional manufacturer specializing in research and development of quartz plates, quartz tubes, quartz flanges, quartz rings, cuvettes and quartz instruments. With the philosophy of Technology Orientation, Quality First, Integrity and Responsibility, Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Contact Information
LIANYUNGANG SHENGFAN QUARTZ PRODUCTS CO.LTD
TEL: 00860518878938285
Mobile: 008619901512909
Wechat: shengfanquartz
E-mail: shengfanquartz@163.com
Website: https://shengfanquartz.1688.com
Address: NO.169 Mingzhu Rd, Economic Development Zone, Donghai country, Lianyungang city, Jiangsu prov., China.
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q2. What about the delivery time?
A: Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How to proceed an order in your factory?
A:
  1. Firstly let us know your requirements or application.
  2. Secondly we quote according to your requirements or our suggestions.
  3. Thirdly customer confirms the samples and places deposit for formal order.
  4. Fourthly we arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT are optional for small orders. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
