Electric Actuated Ball Valve DN80~DN100 Vent Valve DN100~DN200
Electric Actuated Ball Valve DN80~DN100 Vent Valve DN100~DN200
Specifications
Brand Name :
DCL
Model Number :
DCL-05
Certification :
CE/ROHS/CSA/IP67
Place of Origin :
WUHAN,CHINA
MOQ :
1pc
Payment Terms :
D/P,T/T,Western Union,MoneyGram
Supply Ability :
2000PCS/month
Delivery Time :
7 working days
Packaging Details :
carton/pallet
Name :
Electric Actuated Butterfly Valve
Butterfly Valve :
DN50~65
Ball Valve :
DN40
Vent Valve :
DN50~80
Design :
compact design
standard :
UL standard
Description

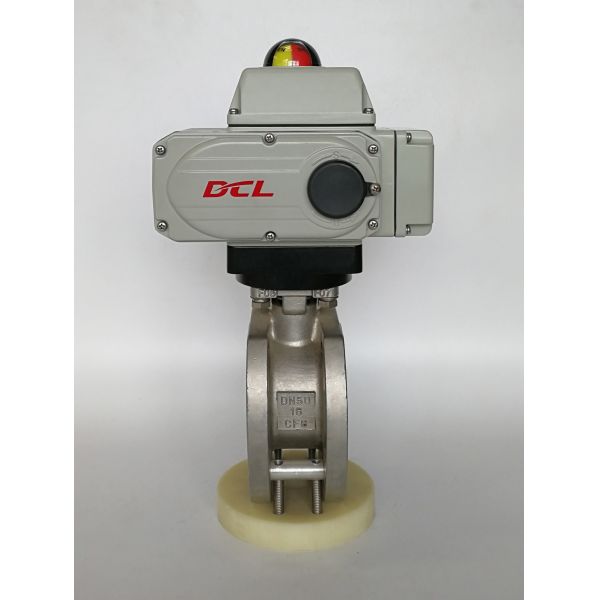

SS304 Concentric Electric Actuated Butterfly Valve DN50~DN65
Electric Actuated Butterfly Valve — Description

The Electric Actuated Butterfly Valve features excellent flow capacity, high control precision, reliable sealing performance, and lightweight construction. It is widely used in food processing, environmental protection, light industry, petroleum, papermaking, chemical, education and research equipment, and electric power industries as part of industrial automation control systems.

Electric Actuator Features
  • Compact Design: The smallest and most compact actuator within a torque range of 1000 Nm to 2500 Nm.
  • Durable Gear System: Equipped with an extra-large, super-hard copper alloy final-stage worm gear to minimize force and wear.
  • High Torque Transmission: Double-row chain transmission between the gearbox and worm gear stem ensures superior torque strength.
  • Powerful Motor: Fitted with a high-torque motor capable of delivering start-up torque exceeding the rated torque by 10%, even under 10% below rated voltage.
  • Extended Service Life: Successfully tested for over 10,000 full-stroke cycles under full rated load with an 80% duty rating.
  • Versatile Compatibility: Suitable for up to DN650 butterfly valves, DN350 ball valves, and DN1200 ventilation butterfly and flap valves.
  • Manual Override: Includes manual operation via wrench or de-clutchable handwheel for emergency use.
  • Certifications: CSA certified per UL standards, CE marked, and compliant with RoHS 3.0 requirements.
Specification of Electric Actuated Butterfly Valve
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200
