Flange CSA RoHs 15S/18Nm Miniature Electric Actuator
Flange CSA RoHs 15S/18Nm Miniature Electric Actuator
Specifications
Brand Name :
DCL
Model Number :
DCL-02
Certification :
CE/ROHS/CSA/IP67
Place of Origin :
WUHAN,CHINA
MOQ :
1pc
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000PCS/month
Delivery Time :
7 working days
Packaging Details :
carton/pallet
Power :
DC24V/AC24V/AC110V/AC220V
Time/Torque :
15S/18Nm
Optional Torque :
7s/9Nm 60s/18Nm
Protection Class :
IP67
Motor power :
8W/6W
Ambient Temperature :
-25℃~+55℃
Medium :
Gas/Oil/Water/Other
Material of Seal Surface :
Soft sealed
Rated Current :
0.15A~1.3A
Connection Form :
Flange
Description

15S / 18Nm Miniature Electric Actuator , CE CSA RoHs electric actuator

Description

DCL-02 series is widely applied in various automatic operation systems, such as: level, flow, pressure control, air-conditioning systems, fire fighting systems, water treatment systems, and applied to equipment, chemical industry and food machineries. It is matched with butterfly valves with diameter less than DN40 and ball valves with diameter less than DN32. It is suitable for many kinds of installation conditions with its super miniature in volume and any installation angle within 360.

Product specification

Type DCL-02
Power DC24V AC24V AC110V AC220V
Motor Power 8W 6W 6W 6W
Rated Current 0.7A 1.3A 0.3A 0.15A
Standard Time/Torque 15S/18Nm
Optional Time/Torque 7S/9Nm 60S/18Nm
Turning Angle or turns 0～90°
Available Control Circuit Type G Type of A,B Type of A,B ,E ,
Total Weight 1.2kg
Insulating Resistance 100MΩ/250VDC 100MΩ/500VDC
Withstand Voltage Class 500VAC 1 minute 1500VAC 1 minute
Protection Class IP67
Installation Angle 360° at any angle
Electric Interface 7-core cable for connection
Ambient Temperature -25～+55℃
Fuse 2A 3A 1A 1A

Features

  • Subminiature in Volume(Smaller than a pop Can)
  • Super Torque (18Nm/15S)
  • Super Protection Performance (Full Aluminum alloy Casing)
  • Can choose open display device of adjustable convex type
  • IP68 water-proof cable connector
  • Mannual operation handle

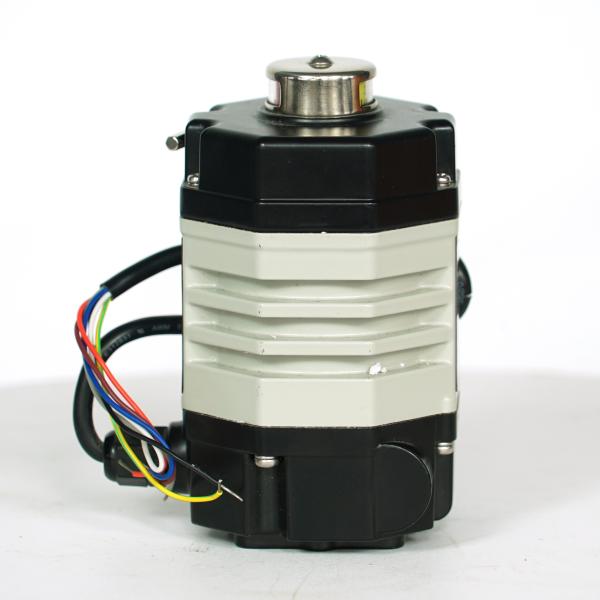

Flange CSA RoHs 15S/18Nm Miniature Electric ActuatorFlange CSA RoHs 15S/18Nm Miniature Electric Actuator
