PU High Performance Fine Mesh Screen with 0.075-0.18mm Aperture, 32%-42% Open Area, and Longer Wear Life
PU High Performance Fine Mesh Screen with 0.075-0.18mm Aperture, 32%-42% Open Area, and Longer Wear Life
PU High Performance Fine Mesh Screen with 0.075-0.18mm Aperture, 32%-42% Open Area, and Longer Wear Life
PU High Performance Fine Mesh Screen with 0.075-0.18mm Aperture, 32%-42% Open Area, and Longer Wear Life
PU High Performance Fine Mesh Screen with 0.075-0.18mm Aperture, 32%-42% Open Area, and Longer Wear Life
PU High Performance Fine Mesh Screen with 0.075-0.18mm Aperture, 32%-42% Open Area, and Longer Wear Life
Specifications
Brand Name :
Mam Ba
Model Number :
PFS
Certification :
ISO9001 SGS
Place of Origin :
China
MOQ :
5 Square Meter
Price :
negotiable
Payment Terms :
L/C,T/T,D/P,Western Union,MoneyGram
Supply Ability :
5000SM/Week
Delivery Time :
Within10-20days
Packaging Details :
On Wooden Carton
Products Name :
Fine Mesh Screens
Material :
High Quality PU and Steel Wire
Screening Feature :
Fine Higher Screening Accuracy
Width :
0.6-1.6m
Length :
0.7-3.5m
Working Feature :
Low noise and Longer Wear Life
Opening Area :
32% – 42%
PU Hardness :
80-87A
Thickness :
5-7mm
Resilience :
45%-47%
Aperture Type :
Slot
Aperture Sizes :
0.075-0.18mm
Description
PU High Performance Fine Wire Mesh Screen
Width: 0.6-1.6M with Extended Wear Life
Product Overview

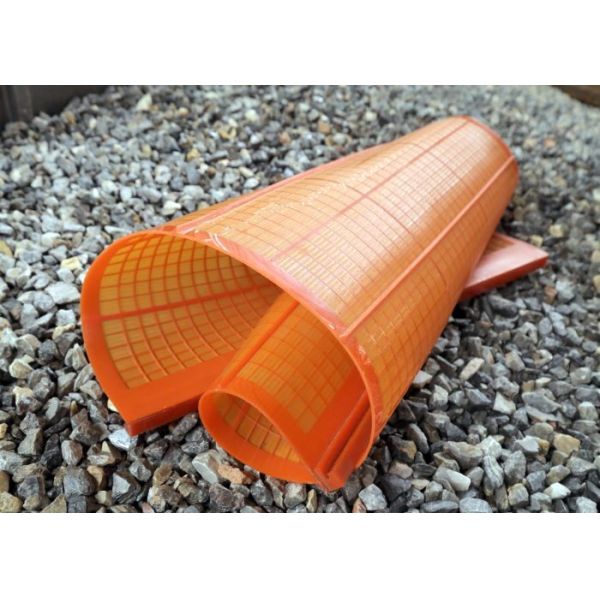

Mam Ba High Frequency Polyurethane Fine Screen Mesh is engineered for precision fine screening separations ranging from 10 mm to 38 microns (400 mesh). Our wear-resistant urethane screen panels deliver superior open area and anti-blinding properties, outperforming conventional woven wire screens in efficiency and durability.
Standard Specifications
Property Value
PU Hardness 80-87A
Thickness 5-7mm
Resilience 45%-47%
Aperture Type Slot
Aperture Sizes 0.075-0.18mm
Fine Particle Separation Capabilities
Our polyurethane fine screen mesh is manufactured from high-quality polyurethane sheets, offering exceptional abrasion resistance and significantly longer service life compared to woven vibrating screen mesh. The anti-blinding properties enable screening of materials previously considered difficult or impossible to process.
With extremely fine openings down to 0.1mm, these screens are suitable for diverse wet and dry applications. They operate with low noise and minimal maintenance, serving as superior replacements for perforated vibrating screen mesh while providing enhanced wear resistance and acid/alkali resistance.
Convenient polyurethane hooks on both sides facilitate easy installation onto vibrating screens.
Detailed Specifications Table
Item Slot Width (mm) Slot Length (mm) Open Area (%)
APF-01 0.10 2.59 28.8
APF-02 0.12 2.59 20.20
APF-03 0.15 2.75 28.90
APF-04 0.18 2.12 29.64
APF-05 0.20 2.59 25.80
APF-06 0.23 2.59 27.80
APF-07 0.25 2.59 30.20
APF-08 0.40 2.59 31.90
APF-09 0.50 4.30 33.50
APF-10 0.60 4.30 36.40
APF-11 0.70 5.20 39.33
APF-12 0.80 5.20 40.60
APF-13 1.00 5.75 43.35
APF-14 1.50 8.20 37.91
Product Specifications
  • Normal Screen Size: 1040x700mm
  • Available with openings as fine as 0.075mm
  • Normal Service Life: 6-12 months
  • Material: High-Quality Polyurethane
  • Designed for High Frequency Vibrating Screens
  • Available Colors: Orange, Red, and custom colors
  • Screen Width Options: 0.6m, 0.7m, 0.8m, 1m, 1.2m
  • Screen Length Options: 0.7m, 0.8m, 1m, 1.045m, 1.2m, 1.245m, 1.5m, 2m, and custom lengths
  • Hook Type: Durable Polyurethane Hooks
Key Features
Abrasion and wear resistance
Acid and alkali resistance
Fine openings for accurate separation
Inlaid wedge-shape structure for enhanced tensile strength
Non-blinding properties
Compatible with almost all vibrating screen types
Lightweight and easy to install/replace
Low operating and maintenance costs
Low noise operation
Extended service life
High open area (32% - 42%)
Custom mold designs available
