Specifications
Brand Name :
WINCOO
Model Number :
MSHW
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
USD 5000~12000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
230 Set/Year
Delivery Time :
45 working days
Packaging Details :
Export package
Model NO. :
MSHW
Keywords :
Tank Vertical Welding Machine
Plate Thickness :
8~45mm
Plate Material :
Carbon Steel, Stainless Steel
Welding Process :
Saw
Transport Package :
Container
Specification :
SGS, ISO9001, CE
Trademark :
WINCOO
Origin :
Nanjing, China
HS Code :
851531900
Cooling Way :
Water Cooling
Control :
Semi-Automatic
Style :
Hanging
Frequency Range :
Intermediate Frequency
Electric Current :
Inverter
Type :
Continuous Seam Welder
Customization :
Available | Customized Request
Description

Product Introduction:

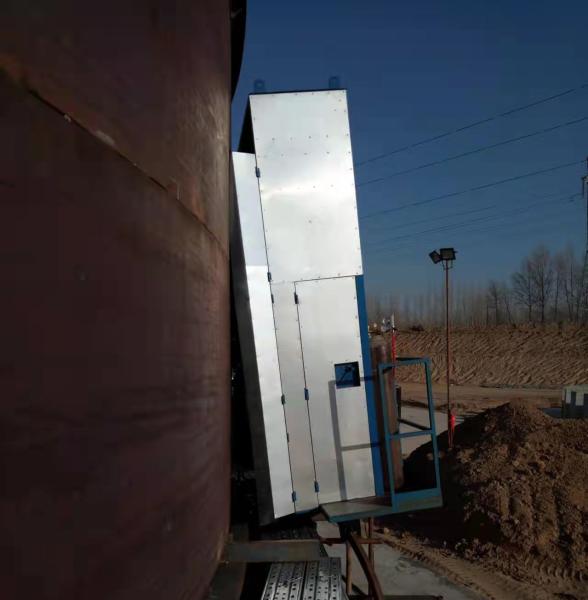

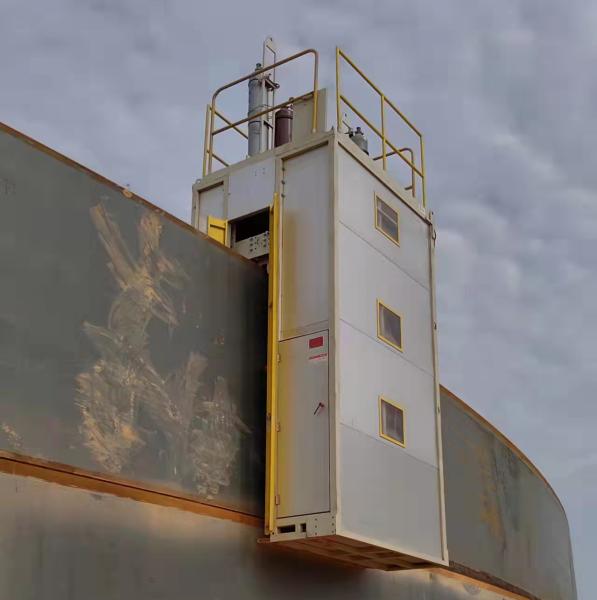

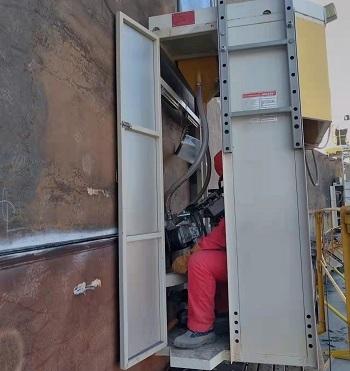

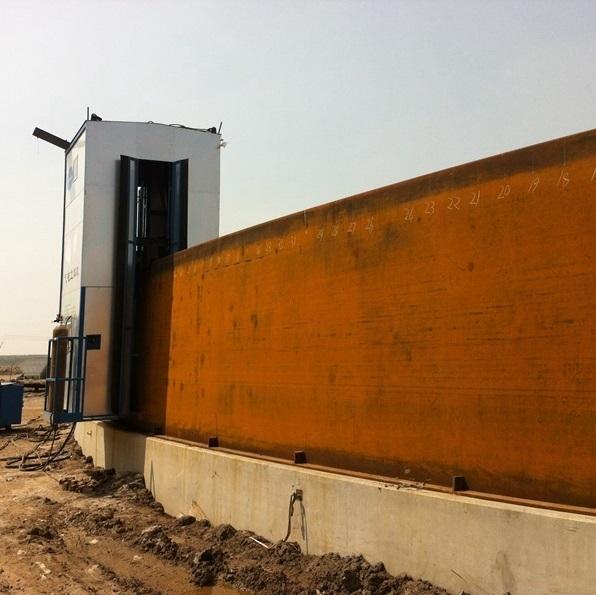

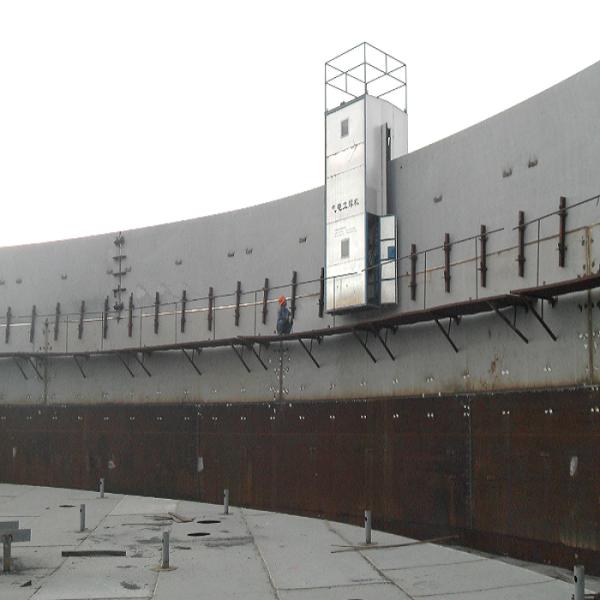

The WINCOO Standard Series is a purpose-built vertical welding system for fabricating the longitudinal seams of large aboveground storage tanks (ASTs). Utilizing the Electrogas Welding process, it creates high-integrity, single-pass welds in thick plate (typically 9-40mm) with exceptional deposition rates. The system operates vertically upwards using sliding copper shoes to contain the molten weld pool and shielding gas, ensuring X-ray quality joints for critical storage applications like oil, chemicals, and water tanks compliant with API 650/653 standards.

Key Specifications:

Parameter Specification
Welding Process Electrogas Welding (EGW)
Plate Thickness 9 mm – 40 mm (0.35" – 1.57")
Weld Length Up to 15 m (49 ft) per seam
Deposition Rate 12 – 18 kg/h (26 – 40 lbs/h)
Wire Diameter 1.6 mm, 2.0 mm, 2.4 mm
Voltage/Current 30–45V DC / 350–600A
Shielding Gas CO₂ or Ar/CO₂ Mix (80/20)
Control System Digital PLC with HMI Touchscreen
Power Supply 480V AC, 3-Phase, 100 kVA
Weight (Travel Head) 120 kg (265 lbs)

Key Features:

  • High Deposition Efficiency: Single-pass welding eliminates multi-layer processes, reducing labor by 70%.

  • Exceptional Quality: Copper shoes ensure smooth weld profile & minimal spatter; ideal for X-ray/UT inspection.

  • Automated Operation: PLC-controlled travel speed, voltage, and wire feed for consistency.

  • Rigid Guidance System: Precision rails ensure vertical alignment over full seam length.

  • Quick-Setup Shoes: Interchangeable copper shoes adapt to plate thickness changes.

  • Gas Containment: Integrated gas chambers maintain optimal shielding atmosphere.WINCOO Standard Electrogas Welding (EGW) System for API Tanks

Application Scenarios:

  • Longitudinal seams in crude oil/fuel storage tanks (API 650).

  • Water reservoir tanks (>10,000 m³ capacity).

  • Chemical storage tanks (acid, alkali, ethanol).

  • Tank refurbishment (API 653 repairs).

  • Power plant surge tanks & penstocks.
