PLC Hydraulic Jacking System for Tank Lifting 12-120t Capacity

Specifications

Brand Name :

WINCOO

Model Number :

YT series

Certification :

CE, ISO 9001:2000, ISO 9001:2008

Place of Origin :

China

MOQ :

1 set

Price :

USD 800~3000

Payment Terms :

L/C,D/A,D/P,T/T

Supply Ability :

5000

Delivery Time :

30 days

Packaging Details :

Export package

Max Height :

0-4600mm

Condition :

New

Keywords :

Hydraulic Jacking System

Capaticy :

More Than 50t

Stroke :

More Than 5m

Color :

Red or Customized

Transport Package :

Container

Specification :

Customized

Trademark :

WINCOO

Origin :

China

HS Code :

8425421000

After-sales Service :

Quality Assurance

Warranty :

1 Year

Type :

Hydraulic Jack

Structure :

Hydraulic Jack

Capacity (Load) :

12-120t

Power Source :

Hydraulic

Customization :

Available | Customized Request

Description

Overview

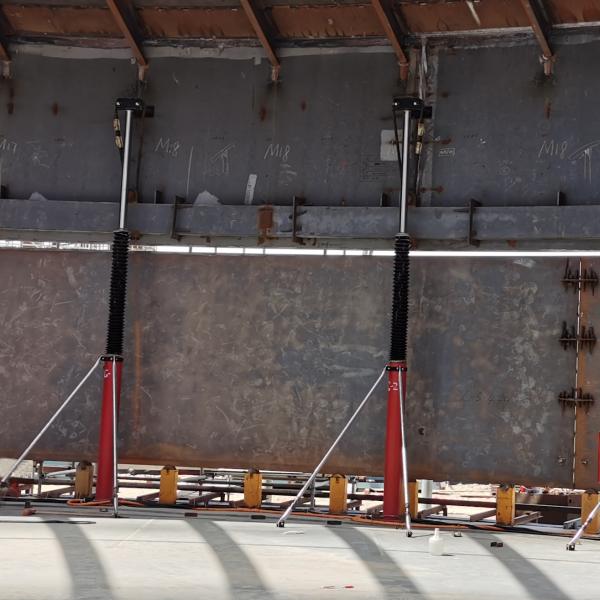

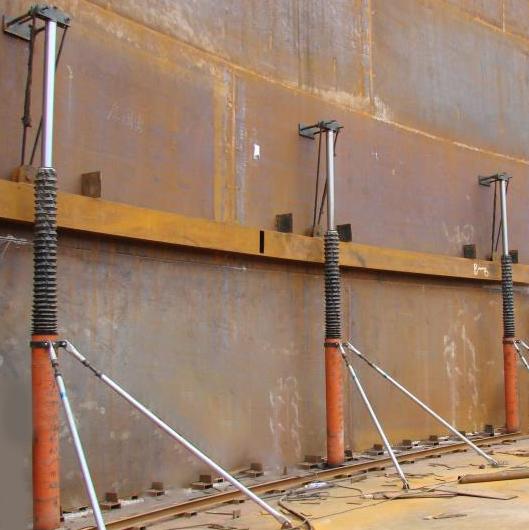

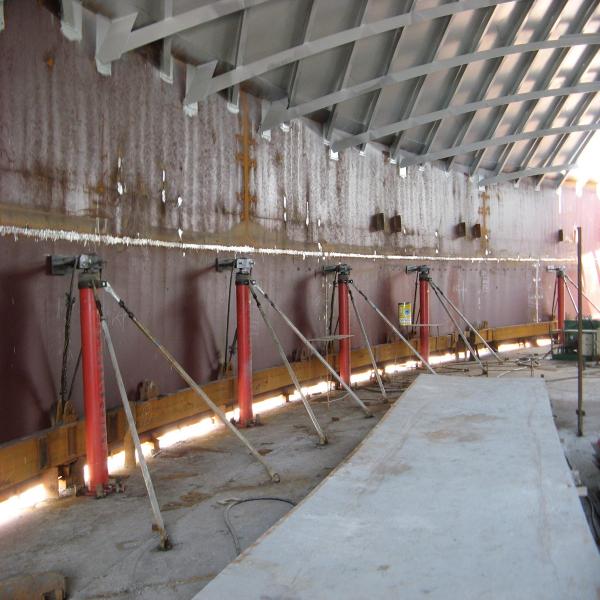

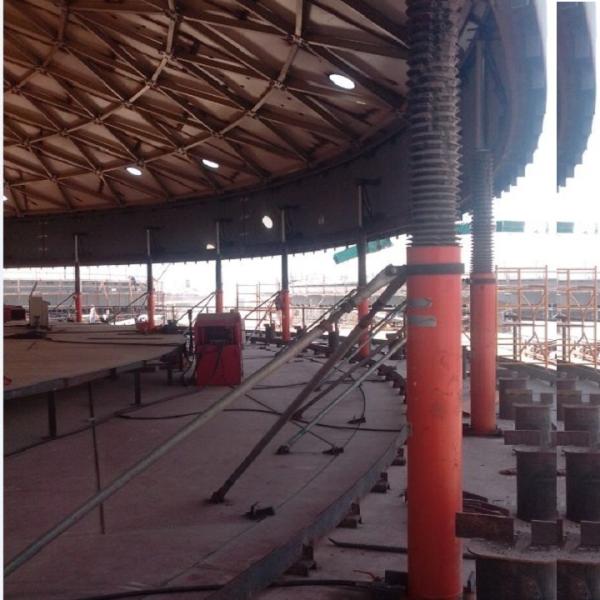

PLC-controlled three-stage hydraulic jacks are heavy-duty systems designed for vertically lifting large storage tanks (e.g., petroleum, chemical tanks). The core structure features three-stage hydraulic jacks, precisely synchronized by a PLC (Programmable Logic Controller) to ensure smooth and stable lifting. With a modular design, they provide ultra-long strokes (typically 6–15 m) in confined spaces, making them ideal for tank installation, maintenance, and foundation construction.

Technical Parameter

Model	YT10-1650	YT10-1700	YT12-2700	YT18-1700	YT25-3200
Maximum service pressure	28 MPa	28 MPa	13Mpa	30Mpa	20Mpa
Maximum output force of single hydraulic cylinder	10 t	10 t	12 t	18 t	25 t
Maximum stroke of hydraulic cylinder	1700 mm	1700 mm	2700mm	1650mm	3200mm
Hydraulic cylinder lifting speed	90mm/min	90mm/min	160mm/min	95mm/min	180mm/min
Oil pump flow	2×14.4L/min	2×14.4L/min	50L/min	7.2L/min	14.4L/min
Motor speed	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min
Motor voltage	~380V	~380V	~380V	~380V	~380V
Motor power	2×5.5KW	2×5.5KW	15kw	4kw	5.5kw
Operating voltage of electromagnetic reversing valve	~220V	~220V	~220V	~220V	~220V
Working environment temperature for equipment	-15~50 ºC	-15~50 ºC	10-50 ºC	10-50 ºC	-10~60 ºC
Suitable width	1500mm	1500mm	1500mm	1500mm	3000mm

Model	YT25-2700	YT30-2700	YT30-3200	YT40-3400	YT50-2700
Maximum service pressure	25Mpa	24Mpa	30Mpa	20Mpa	10Mpa
Maximum output force of single hydraulic cylinder	25 t	30 t	30 t	40 t	51 t
Maximum stroke of hydraulic cylinder	2700mm	2700mm	3200mm	3400mm	2620mm
Hydraulic cylinder lifting speed	180mm/min	110mm/min	50mm/min	80mm/min	140mm/min
Oil pump flow	14.4L/min	7.2L/min	7.2L/min	7.2L/min	14.6L/min
Motor speed	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min
Motor voltage	~380V	~415V	~380V	~380V	~380V
Motor power	5.5kw	4kw	4kw	4kw	5.5kw
Operating voltage of electromagnetic reversing valve	~220V	~220V	~220V	~220V	~220V
Working environment temperature for equipment	10~50 ºC	-10~50 ºC	0~50 ºC	0~50 ºC	0~50 ºC
Suitable width	2500mm	2500mm	2500mm	3050mm	2500mm

Core Advantages

High-Precision Synchronization
The PLC monitors pressure and displacement in real-time, adjusting flow via proportional valves to ensure multi-jack synchronization, preventing tank deformation.
Long Stroke, Compact Design
Triple-stage telescopic cylinders achieve extended lifting heights from a low initial profile, saving workspace.
Intelligent Safety Protections
Equipped with overload protection, emergency stop, displacement deviation alarms, and automatic PLC data logging for fault analysis.
Adaptability to Complex Sites
Modular design supports networking multiple units for thousand-ton tanks; self-leveling base accommodates uneven surfaces.

Typical Applications

Tank Foundation Upgrades: Lift existing tanks for base reconstruction.

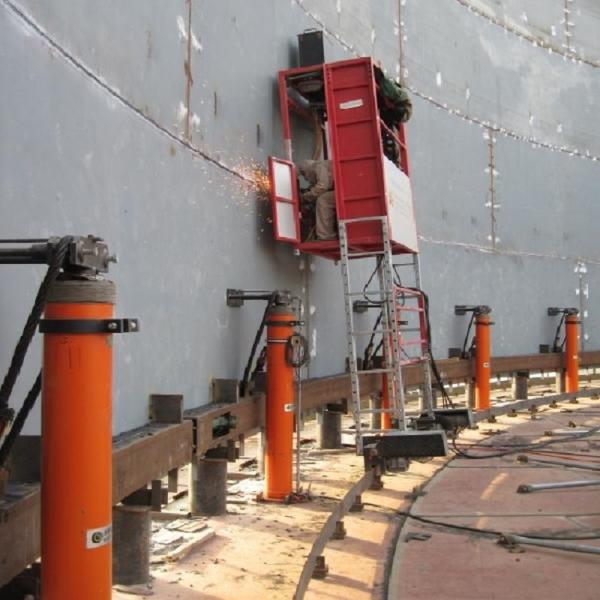

Tank Bottom Maintenance/Replacement: Elevate tanks for corrosion treatment or welding.
Plant Relocation: Hoist tanks onto transport vehicles.
New Tank Installation: Precisely position tanks onto foundations.
