PLC Hydraulic Jacking System 12-120t Capacity Customizable

Specifications

Brand Name :

WINCOO

Model Number :

YT series

Certification :

CE, ISO 9001:2000, ISO 9001:2008

Place of Origin :

China

MOQ :

1 set

Price :

USD 800~3000

Payment Terms :

L/C,D/A,D/P,T/T

Supply Ability :

5000

Delivery Time :

30 days

Packaging Details :

Export package

Max Height :

0-4600mm

Condition :

New

Keywords :

Hydraulic Jacking System

Capaticy :

More Than 50t

Stroke :

More Than 5m

Color :

Red or Customized

Transport Package :

Container

Specification :

Customized

Trademark :

WINCOO

Origin :

China

HS Code :

8425421000

After-sales Service :

Quality Assurance

Warranty :

1 Year

Type :

Hydraulic Jack

Structure :

Hydraulic Jack

Capacity (Load) :

12-120t

Power Source :

Hydraulic

Customization :

Available | Customized Request

Description

Overview

Modern three-stage hydraulic jacks integrate Industrial IoT (IIoT) technologies:

Remote Monitoring: 4G/5G cloud-based real-time data transmission for remote diagnostics.
Adaptive Control: PLC auto-adjusts pump output based on load changes, reducing energy use and noise.
3D Dynamic Simulation: Touchscreen displays real-time cylinder positions to predict collision risks.

Technical Parameter

Model	YT10-1650	YT10-1700	YT12-2700	YT18-1700	YT25-3200
Maximum service pressure	28 MPa	28 MPa	13Mpa	30Mpa	20Mpa
Maximum output force of single hydraulic cylinder	10 t	10 t	12 t	18 t	25 t
Maximum stroke of hydraulic cylinder	1700 mm	1700 mm	2700mm	1650mm	3200mm
Hydraulic cylinder lifting speed	90mm/min	90mm/min	160mm/min	95mm/min	180mm/min
Oil pump flow	2×14.4L/min	2×14.4L/min	50L/min	7.2L/min	14.4L/min
Motor speed	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min
Motor voltage	~380V	~380V	~380V	~380V	~380V
Motor power	2×5.5KW	2×5.5KW	15kw	4kw	5.5kw
Operating voltage of electromagnetic reversing valve	~220V	~220V	~220V	~220V	~220V
Working environment temperature for equipment	-15~50 ºC	-15~50 ºC	10-50 ºC	10-50 ºC	-10~60 ºC
Suitable width	1500mm	1500mm	1500mm	1500mm	3000mm

Model	YT25-2700	YT30-2700	YT30-3200	YT40-3400	YT50-2700
Maximum service pressure	25Mpa	24Mpa	30Mpa	20Mpa	10Mpa
Maximum output force of single hydraulic cylinder	25 t	30 t	30 t	40 t	51 t
Maximum stroke of hydraulic cylinder	2700mm	2700mm	3200mm	3400mm	2620mm
Hydraulic cylinder lifting speed	180mm/min	110mm/min	50mm/min	80mm/min	140mm/min
Oil pump flow	14.4L/min	7.2L/min	7.2L/min	7.2L/min	14.6L/min
Motor speed	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min
Motor voltage	~380V	~415V	~380V	~380V	~380V
Motor power	5.5kw	4kw	4kw	4kw	5.5kw
Operating voltage of electromagnetic reversing valve	~220V	~220V	~220V	~220V	~220V
Working environment temperature for equipment	10~50 ºC	-10~50 ºC	0~50 ºC	0~50 ºC	0~50 ºC
Suitable width	2500mm	2500mm	2500mm	3050mm	2500mm

Advantages Over Traditional Solutions

Traditional Solution	PLC Three-Stage Hydraulic Jack
Single-point lifting, poor sync	Multi-unit auto-synchronization
Short stroke, frequent shimming	Full-range stroke in one operation
Manual monitoring required	Fully automated safety supervision
Low efficiency (3–5 days/tank)	High efficiency (<1 day/tank)

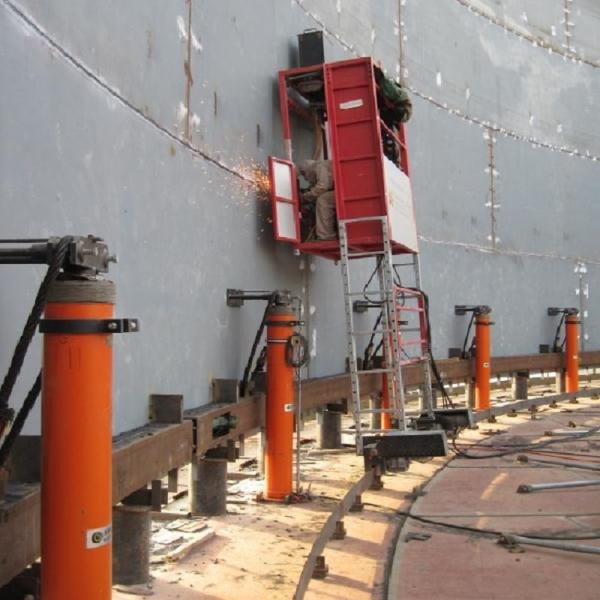

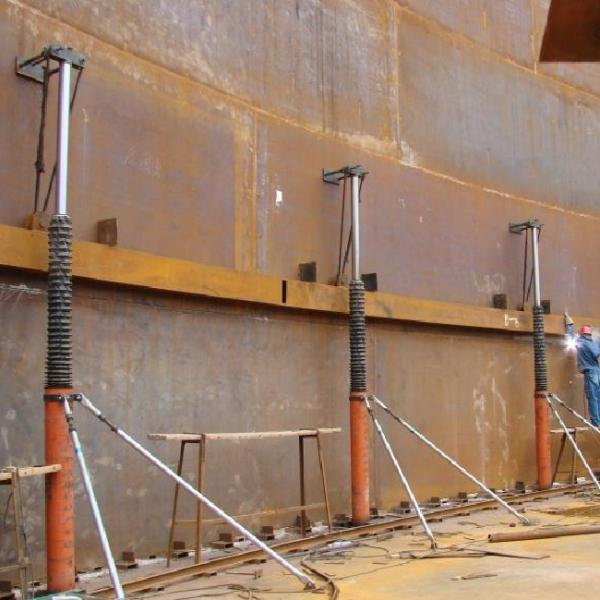

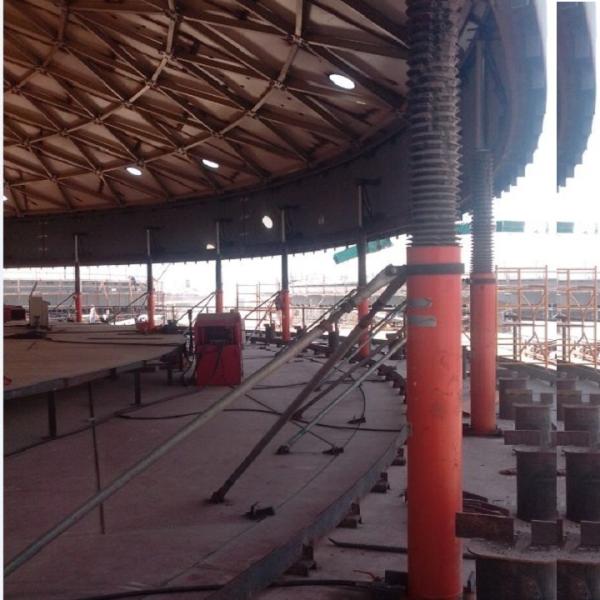

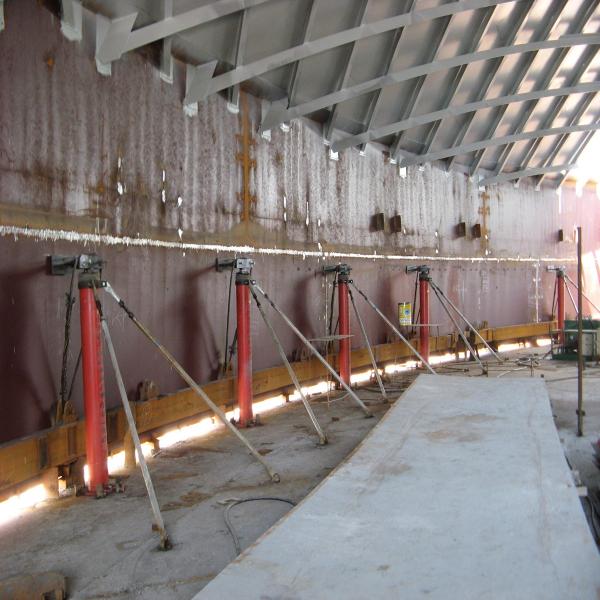

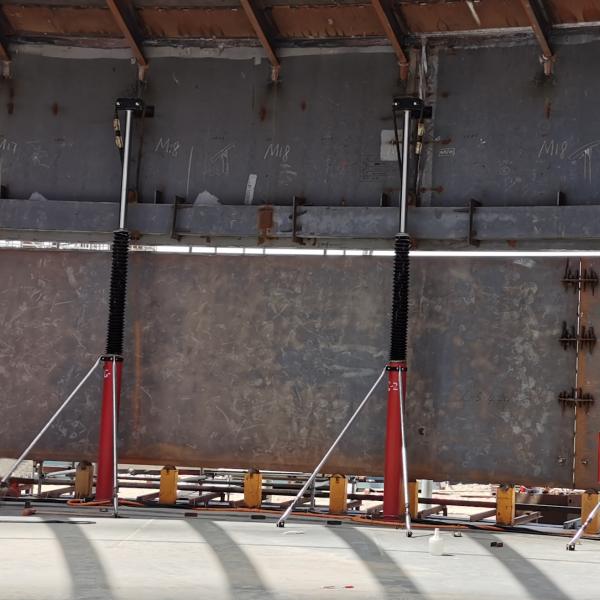

Industry Case Studies

Petrochemical Industry
A refinery lifted a 30m-diameter tank by 4m in 8 hours using four 200-ton jacks to replace corroded tank bottoms.
LNG Tank Construction
Lifted a 2000-ton 9% nickel steel inner tank at -162°C, maintaining ±2mm accuracy.
Environmental Engineering
Elevated wastewater treatment sedimentation tanks for renovation without production shutdowns.
