PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
Specifications
Brand Name :
WINCOO
Model Number :
WQ-III
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD+1800~4680+set
Payment Terms :
L/C, D/P, T/T
Supply Ability :
100 set/month
Delivery Time :
30 days
Packaging Details :
Export package
Applicable Industries :
Manufacturing Plant, Construction works
Marketing Type :
New Product 2020
Condition :
New
Welding Process :
Orbital Welding
Material :
Steel
Welding Torch :
TIG Torch
Type :
Orbital Welding Machine
Cooling Method :
Water Cooling
Shape Of Tube :
Round
Control System :
PLC
Weight :
16
Welding Speed :
1-10 RPM
Showroom Location :
None
Diameter Range :
2-48 inches
Description

Product Introduction

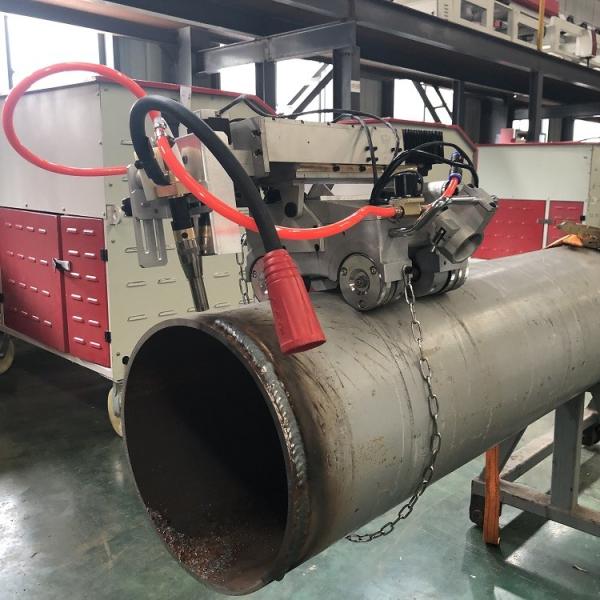

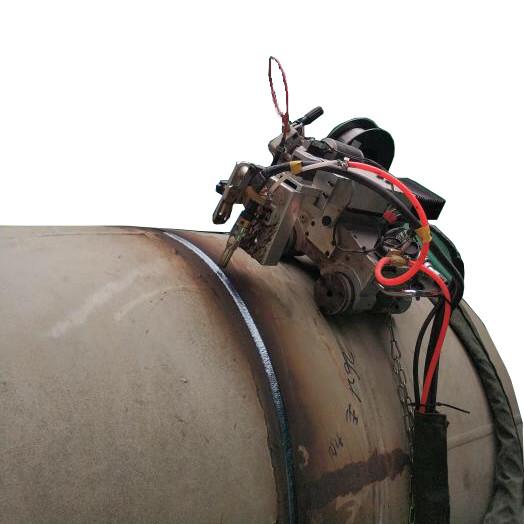

The WINCOO WQ-III is a modular, rail-based orbital welder for high-volume fabrication of long-distance pipelines. Its Automation PLC synchronizes a rotating welding head with adaptive fill-pass algorithms, enabling unmanned 6G welding of fixed pipes in factory settings.

PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction

Key Parameters

Category Specifications
Pipe Compatibility Diameter: 8–48 inches (200–1200 mm) • Wall Thickness: 4–30 mm
Welding Process GTAW (TIG root) + SMAW/GMAW fill • Pulsed synergic modes
Rotation Control 0.1–2.0 RPM (servo-driven) • Torque: 25 Nm
PLC System Rockwell CompactLogix • Supports PROFINET/EtherNet/IP
Power 220V AC • 250A output (60% duty cycle)
Program Memory 500 weld schedules • AWS D10.8/D10.12 preloaded templates
Repeatability Weld bead placement: ±0.15 mm • Electrode alignment: ±0.5°

PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction

Core Features

  1. 1. Adaptive Welding Intelligence

    • Auto-senses joint geometry (V-bevel, J-prep) and adjusts heat input per pass.

    • Closed-loop current control via PLC-integrated arc voltage feedback.

  2. 2. Multi-Pass Optimization

    • Automated crater filling and interpass temperature management.

    • Post-weld data reports (voltage, current, travel speed) for NDT compliance.

  3. 3. Ergonomic Modularity

    • Split-rail design for quick installation on fixed pipes.

    • Remote pendant control (50m range) with live weld visualization.

  4. 4. Certification Ready

    • Pre-qualified for ASME Section IX • Embedded PQR/WQR documentation.

    • Password-protected weld procedure locks for audit trails.

    • PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction

Applications

  • Pipeline Fabrication Yards: High-speed welding of pipe spools for compressor stations.

  • Process Piping: ASTM A335 P11/P91 alloy welding in power plants.

  • Municipal Water Transmission: Corrosion-resistant cladding of ductile iron pipes.

  • PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction

  • PLC Control Modular Orbital Welding Machine for Large Size Pipeline Construction
