Specifications
Brand Name :
WINCOO
Model Number :
MEGW-I-Z/D
Certification :
ISO9001, CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD+1400~3080+set
Payment Terms :
L/C,D/P,T/T
Supply Ability :
100 set/month
Delivery Time :
45 days
Packaging Details :
Export package
Brand :
WINCOO
Model :
MEGW-I
Welding Process :
Electrogas Welding (EGW)
Control :
PLC + Touch Screen
Cooling :
Water Cooling
Description
Professional EGW Solution for Heavy-Duty Tank Construction

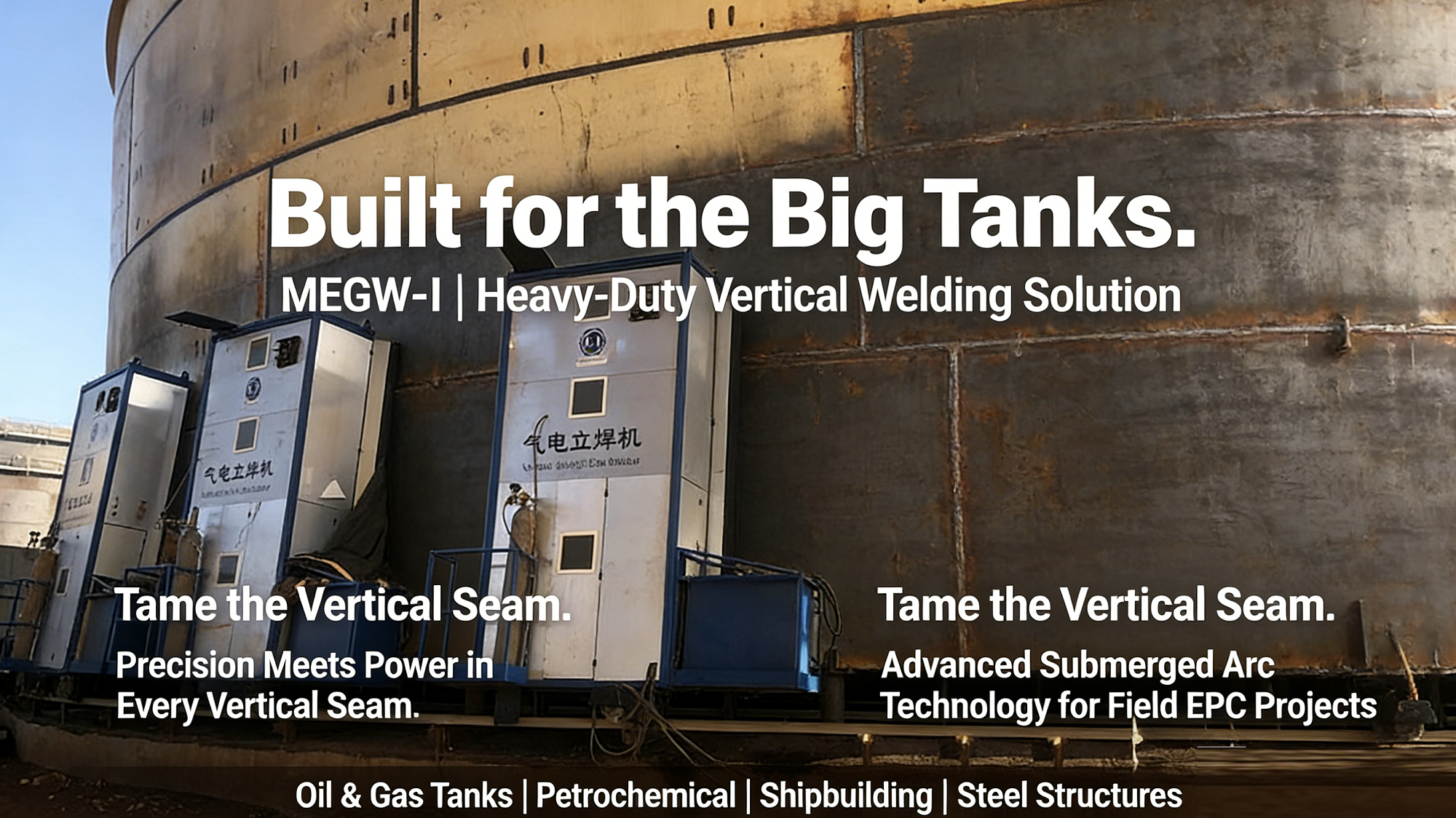

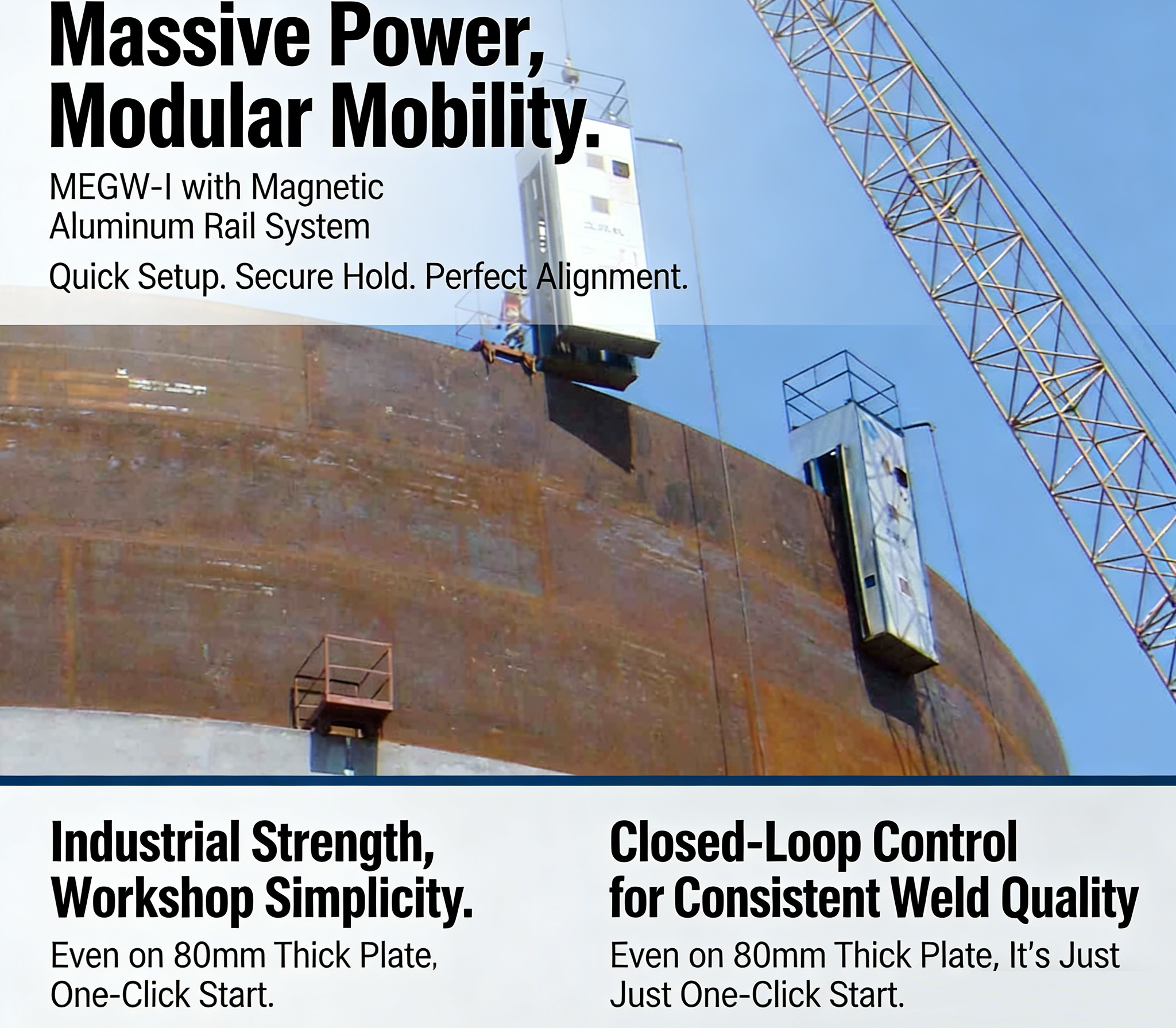

WINCOO Large Tank Vertical Seam Welding Machine is a high-performance automatic welding system dedicated to vertical (3G) seam welding of large storage tanks. It adopts electrogas welding (EGW) with water‑cooled copper shoes to achieve one‑pass single‑side welding and double‑side forming. This system is widely used in tank erection projects and factory tank production, delivering stable, high‑quality welds with exceptional efficiency.
WINCOO Large Tank Vertical Welding Machine with 8-45 mm Plate Thickness, PLC Control, and Water Cooling System
Technical Specifications
Suitable tank diameter ≥6 m
Plate thickness 8-45 mm
Plate width 1.6-3.0 m (customizable)
Welding speed 100-300 mm/min
Welding current 80-800 A
Welding voltage 20-45 V
Input power 380 V/3 PH/50 Hz
Operation Automatic + manual adjustment
Protection class IP54
Product Features
  • Robust rigid frame with stable running under heavy load
  • Water‑cooled copper shoes for forced weld forming
  • PLC digital control with parameter memory and fault diagnosis
  • Closed‑loop wire feeding and molten pool control
  • 3D adjustable welding torch for precise seam tracking
  • Compact structure, easy transportation and on‑site setup
Core Advantages
  • High weld quality: X‑ray qualification rate over 99%
  • High efficiency: 5-8 times faster than manual vertical welding
  • Labor saving: Reduces reliance on high‑skill welders
  • Strong adaptability: Supports both top‑up and bottom‑up tank erection
  • Low repair rate: Uniform penetration and smooth weld surface
  • Reliable after‑sales: Global on‑site service and training
Application Fields
  • Petroleum & oil storage tanks
  • Chemical medium tanks
  • Water storage tanks
  • LNG/LPG cryogenic tanks
  • Power plant large tanks
  • Metallurgical and shipbuilding cylindrical tanks
