Specifications
Brand Name :
WINCOO
Model Number :
WHL-III
Certification :
CE
Place of Origin :
Jiangsu, China
Price :
$2,500.00/sets 1-9999 sets
Payment Terms :
T/T,D/P,D/A,L/C
Supply Ability :
3000 Set/Sets per Month
Delivery Time :
20 days
Packaging Details :
carton
Applicable Industries :
Manufacturing Plant, Construction works
Welding Mode :
Tig/Mig/MAG/SAW(optional)
Welding Diameter :
80mm
Dimensions :
245*520*290mm
Use :
Tank Seam Welding
Weight (KG) :
10.4 KG
Power (kW) :
4
Product name :
Tank welding machine
Application :
Tank construction
Working mode :
Auto Seam Welder
Welding Method :
MAG Welding
COLOR :
CUSTOMER
Welding Material :
Carbon Steel Stainless Steel Aluminum
Description

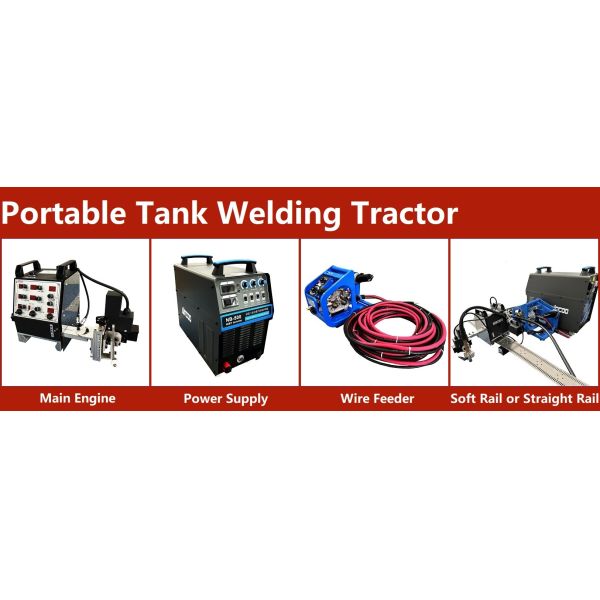

Portable and Economical Tank Welding Tractor with Straightening and Flexible Rails
A simple, cost-effective, and easy-to-use straight or flexible rail welder designed specifically for tank welding applications.
Key Features and Capabilities
  • Equipped with 5 welding handling techniques that perfectly simulate manual handling for uniform weld appearance with faster, more stable performance
  • Weld width adjustable from 0-30mm to accommodate various thin and thick plate welding requirements
  • Capable of various distance discontinuous welding with adjustable length and speed parameters
  • Welding trajectory demonstration without ignition for convenient and intuitive operation
  • Full digital display control panel for easy adjustment and data recording with memory function that automatically recovers previous settings
  • Automatic stop after welding with limit stop contacts in both running directions to prevent over-welding
Technical Specifications

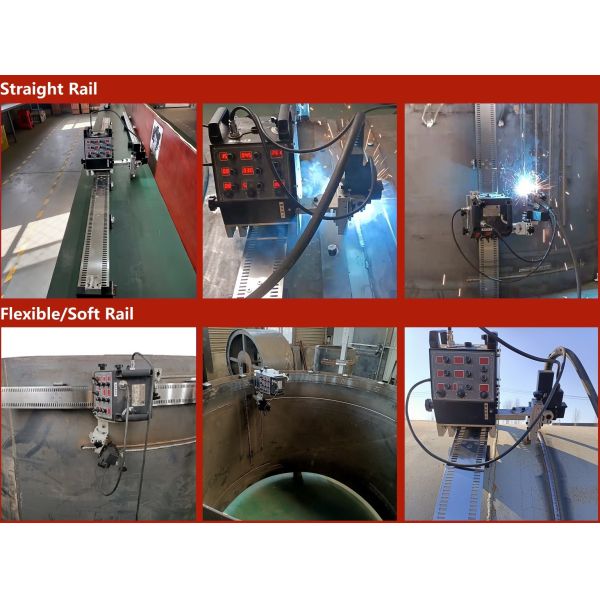

Parameter Straight Rail Type Flexible Rail Type Notes
External Power Source AC 220V 50/60 Hz Three-hole connection
Working Power Source AC 20V Use of each driver
Dimensions (L×W×H) 245×520×280cm 245×520×290cm
Weight 8.6 kg 10.4 kg Main host only
Track Type Linear motion guide Self-aligning flexible slide rails
Drive Mode Gear drive Sprocket drive
Welding Speed 0~1650mm/min Maximum speed
Thinnest Adsorption Plate Thickness 3mm Magnetically attractive metal
Welding Gun Adjustment Range 65mm Inching for up and down
Left/Right Adjustment 80mm Inching for left and right
Swinging Angle ±60°
Marching Angle ±25°
Swinging Form Stop left, stop right
Swinging Speed 0-100mm/min
Left/Right Residence Time 0-2.5s
Swinging Width ±14mm
Center Compensation ±5mm
