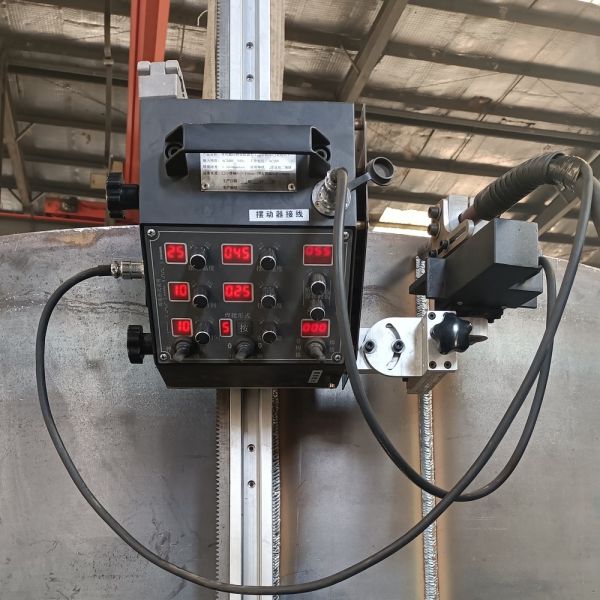

Tank Girth Welding Machine for steel pipelinne construction with soft rail and straight rail
Tank Girth Welding Machine for steel pipelinne construction with soft rail and straight rail
Tank Girth Welding Machine for steel pipelinne construction with soft rail and straight rail
Tank Girth Welding Machine for steel pipelinne construction with soft rail and straight rail
Tank Girth Welding Machine for steel pipelinne construction with soft rail and straight rail
Tank Girth Welding Machine for steel pipelinne construction with soft rail and straight rail
Specifications
Brand Name :
WINCOO
Model Number :
WHL-III
Place of Origin :
CHINA
MOQ :
1
Price :
Further discussion
Delivery Time :
3DAYS
Packaging Details :
carton
Specification :
SGS, ISO9001, CE
Application Field :
Water/Oil&Gas Tank
Usage :
Tank construction
Voltage :
380v/50hz or customized
Condition :
New
Maximum Tank Diameter :
Up to 12 meters
Mobility :
Mounted on wheels for easy movement
Cooling System :
Water Cooling
Description
Tank Girth Welding Machine for Steel Pipeline Construction
Professional welding machine designed for steel pipeline construction, available with both flexible rail and straight rail configurations for versatile application.
Design Features
  • Linear motion guide track system with zero clearance operation, ensuring smooth running without sticking or deformation
  • High-precision screw pitch adjustments for faster, more stable, and accurate positioning
  • All components processed by advanced CNC machine tools for enhanced accuracy and durability
  • High-temperature spraying process with aluminum oxidation for superior appearance and protection
  • Equipped with specialized robot welding gun for better and more stable welding quality
Operational Features
  • Integrated design for easy use, reducing external control lines and preventing damage
  • Lengthened magnetic seat reduces weight and switch count while maintaining suction force
  • Special connecting plate design allows track extension or fast, precise lap connections
  • AC 20V voltage operation for enhanced safety
  • Compatible with various welding gun joints and welding machine brands
  • Includes original toolbox with essential tools, fuses, and documentation supplies
  • User-friendly operation enables non-welders to achieve perfect welds
  • Single operator can manage multiple machines simultaneously, reducing labor costs
Technical Specifications
Parameter Straight Rail Type Flexible Rail Type Notes
External Power Source AC 220V 50/60 Hz (Three-hole)
Working Power Source AC 20V Use of each driver
Dimensions 245×520×280cm 245×520×290cm Length×width×height
Weight 8.6kg 10.4kg Main engine
Track Type Linear motion guide Self-aligning flexible slide rails
Drive Mode Gear drive Sprocket drive
Welding Speed 0-1650mm/min Fastest
Thinnest Adsorption Plate 3mm Magnetically attractive metal
Welding Gun Adjustment Range Up/Down: 65mm (Inching)
Left/Right: 80mm (Inching)
Swinging Angle: ±60°
Marching Angle: ±25°
Swinging Form: Stop left, stop right
Swinging Speed: 0-100mm/min
Residence Time: 0-2.5s
Swinging Width: ±14mm
Center Compensation: ±5mm
Product Images
Tank Girth Welding Machine for steel pipelinne construction with soft rail and straight rail Tank Girth Welding Machine for steel pipelinne construction with soft rail and straight rail Tank Girth Welding Machine for steel pipelinne construction with soft rail and straight rail
