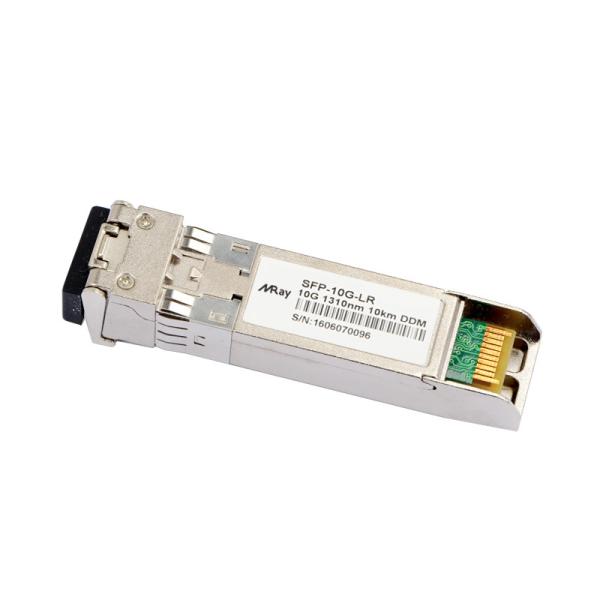

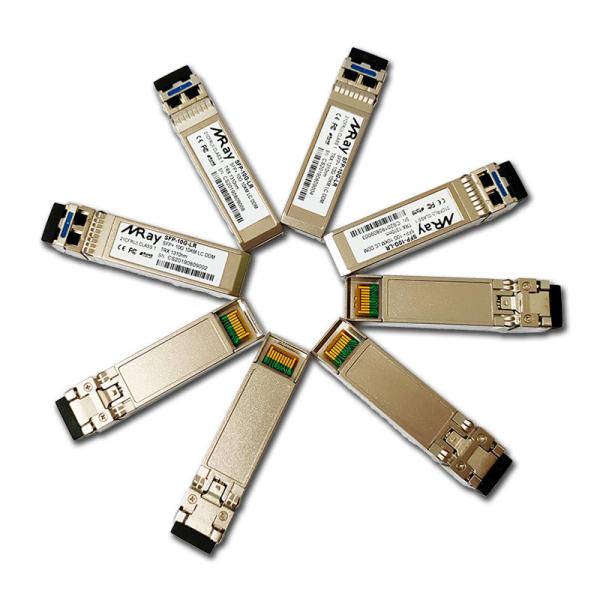

Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter
Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter
Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter
Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter
Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter
Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter
Specifications
Brand Name :
Mray
Model Number :
SFP-10G-LR20
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
HPE Aruba Compatible 10G SFP+ LC LR 20km SMF Transceiver - J9151E
Data Rate :
10Gbps
Distance :
20km
Power Supply :
+3.3V
Application :
FTTH FTTB FTTO Network
Operating temperature :
-40℃ to +85℃
Connector type :
LC/UPC
Warranty :
3 Years
Description

HPE Aruba Compatible 10G SFP+ LC LR 20km SMF Transceiver - J9151E

Description

This Miray SFP+ LR transceiver is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement (SFF-8431).This transceiver type is specifically optimized for transport of serial data at 10.3125Gbps.

Features

  • Operating data rate up to 10.3Gbps
  • 1310nm DFB Transmitter
  • Distance up to 10km
  • Single 3. 3V Power supply and TTL Logic Interface
  • Duplex LC Connector Interface, Hot Pluggable
  • Compliant with MSA SFP+ Specification SFF-8431
  • Compliant with 10G 1200-M5-SN-I and 1200-M6-SN-I FC standard
  • Compliant with 8.5G 800-M5-SN-I and 800-M6-SN-I FC standard
  • Compliant with IEEE 802.3ae 10GBASE-LR/LW
  • Operating Case Temperature Standard:-10°C~+70°C

Application

  • Data Networking

  • Optical Network

Interfaces/Ports
Interfaces/Ports Details: 1 x LC 10GBase-LR Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-LR
Miscellaneous
Compatibility: Aruba 8325 Switch Series

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter

Symbol

Min

Typ

Max

Note

Unit

Optical Transmitter Characteristics

Nominal Wavelength

λ

1310

nm

Optical Output Power

Pav

-6

2

dBm

Extinction Ratio

ER

3.5

dB

Average Launch Power of OFF Transmitter

POFF

-35

dBm

Relative Intensity Noise

RIN

-128

dB/Hz

Optical Receiver Characteristics

Center Wavelength

λC

1260

1620

nm

Receiver Sensitivity@10.3Gb/s

RSENSE

-14.4

1

dBm

Receiver Overload

0.5

dBm

Optical Return Loss

27

-

dB

LOS Assert

LOSA

-30

dBm

LOS De-Assert LOS

LOSD

-17

dBm

LOS Hysteresis

0.5

dB

Dimension

Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter

Product Packing

Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter

Compatibility Test

Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter

Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter

Compatible Brands

Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter

Production Flow

Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter

For more details, welcome to inquire us freely.
