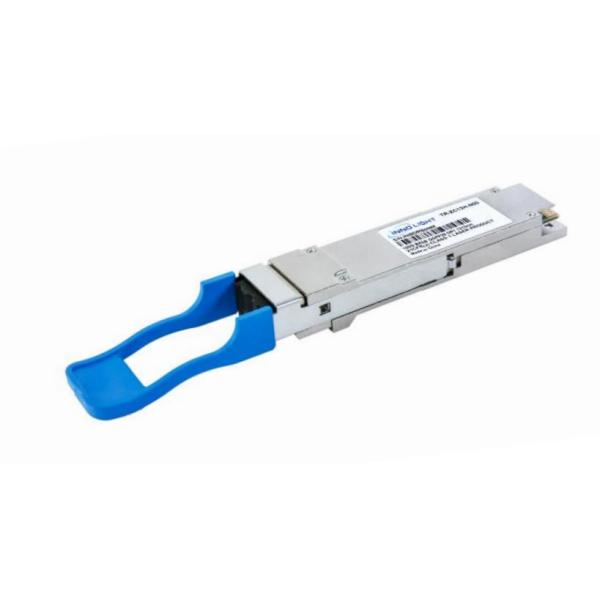

Innolight 100Gb/s QSFP28 DR Single Lambda Optical Transceiver TR-ZC13H-N00

QSFP28 100Gb/s TR-ZC13H-N00 Features

• QSFP28 MSA compliant

• Supports 53.125Gbaud

• IEEE 802.3cd 100GBASE-DR Specification compliant

• Up to 500m transmission on single mode fiber (SMF) with FEC

• Operating case temperature: 0 to 70℃

• 4x25G electrical interface (OIF CEI-28G-VSR)

• Maximum power consumption 4.5W

• LC duplex connector

• RoHS compliant

QSFP28 100Gb/s TR-ZC13H-N00 APPLICATIONS

• Data Center Interconnect

• 100G Ethernet

• Enterprise networking

QSFP28 100Gb/s TR-ZC13H-N00 description

QSFP28 100Gb/s TR-ZC13H-N00 Functional Description

QSFP28 100Gb/s TR-ZC13H-N00 converts the 4-channel of 100Gbps aggregated NRZ electrical input data into one channel of 50Gbaud PAM4 optical signal (light) on 1310nm center wavelength through a DSP based gearbox,

by a driven cooled Electro-absorption Modulated DFB Laser (EML). The light propagates out of the transmitter into an SMF fiber. The receiver module accepts the 50Gbaud PAM4 optical signal input,

and converts it into a 50Gbaud PAM4 electrical signal via a linear amplifier. And then convert the 50Gbaud PAM4 signal into 4 channels of 25Gbps NRZ signals.

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What is the operating temperature range of optical modules?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

Q5. What are the trade terms?

A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year
