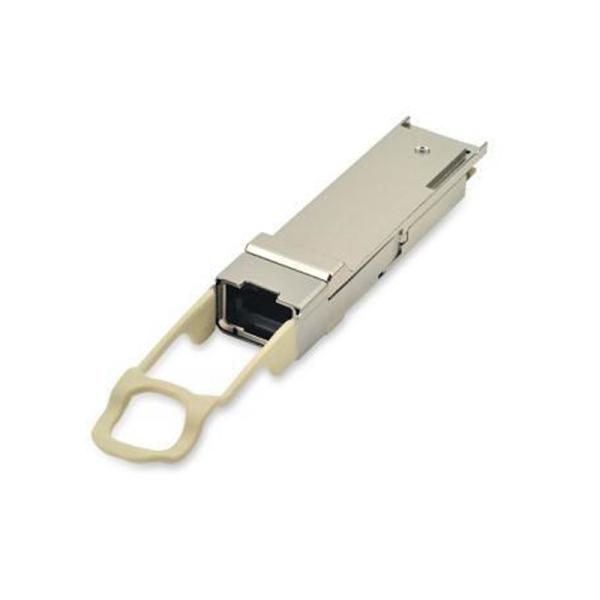

Finisar FTL414QB2C 56G Module 56G InfiniBand FDR/SAS 3.0/40G Ethernet 60m QSFP+

Parameters

Finisar’s FTL414QB2C QSFP+ transceiver modules are designed for use in Ethernet, SAS, and Infiniband links over multimode fiber. They are compliant with the QSFP+ MSA1,2 and the Ethernet3 , SAS and InfiniBand4 architecture specifications. The optical transceiver is compliant per the RoHS Directive 2011/65/EU5 . See Finisar Application Note AN-2038 for more details6 .

PRODUCT FEATURES

• Four-channel full-duplex transceiver module
• Hot Pluggable QSFP+ form factor
• Maximum link length of 60m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
• Up to 14.0625 Gb/s per channel
• Unretimed XLPPI electrical interface
• Maximum power dissipation <1.5W
• Reliable VCSEL array technology
• Extended operating case temperature range: 0ºC to 70ºC
• Single 1x12 MPO receptacle
• RoHS-6 Compliant

APPLICATIONS

• Infiniband 4xFDR
• Infiniband 4xFDR10
• Infiniband 4xQDR
• SAS 2.1/3.0
• IEEE 40GBASE-SR4

FAQ

1. Are your Optical Transceivers original?

Yes, all our optical transceivers are guaranteed 100% original!

2. What will you do if I found the product has any quality problem?

We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!

3. What did your company do in terms of quality control?

We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

4. What are the trade terms?

Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Aliexpress Escow, Money Gram

Warranty: 1 Year

5. Do you have compatible ones?

Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
