High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution
Specifications
MOQ :
1
Packaging Details :
Wooden pallet
Supply Ability :
2400 PCS each year
Movement type :
XYZ translational
Stiffness level :
High
Noise level :
≤70dB
Working temperature :
-10≤t≤50℃，RH≤80%;
Applied Field :
Foods,,drugs,nutrition health products
Dynamic response :
Fast
Brand Name :
Qiaoshou
Model Number :
QS-D-A-400
Preserved humidity :
≥10%,≤70%
Control system voltage :
24V
Payment Terms :
L/C,T/T
Price :
Negotiable
Cycle time :
0.6 seconds
Delivery Time :
60
Drive mechanism :
Compression spring
Place of Origin :
Canton
Operation speed :
80~180 pp/min
IP grade :
IP 51
Description

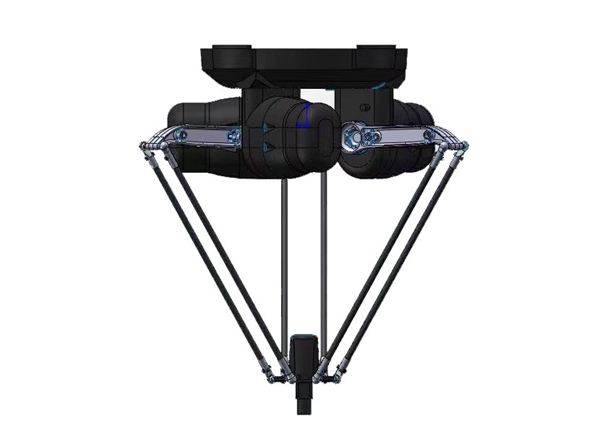

QS-D-C 400 Delta Robot
High Speed High Precision Fast Dynamic Response High Stiffness
I.Introduction

Classic high-speed delta robot configuration featuring translational movement along the XYZ axes in three-dimensional space. This robot is ideal for high-speed production operations in industries such as food and medicines, primarily used for rapid handling and sorting of light,small, scattered material,etc..

High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place SolutionHigh-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution

Model Number of Axis Rated load Working stroke range Repeated position precision
OS-D-A-400 3/4 1.5KG 400 ±0.1mm

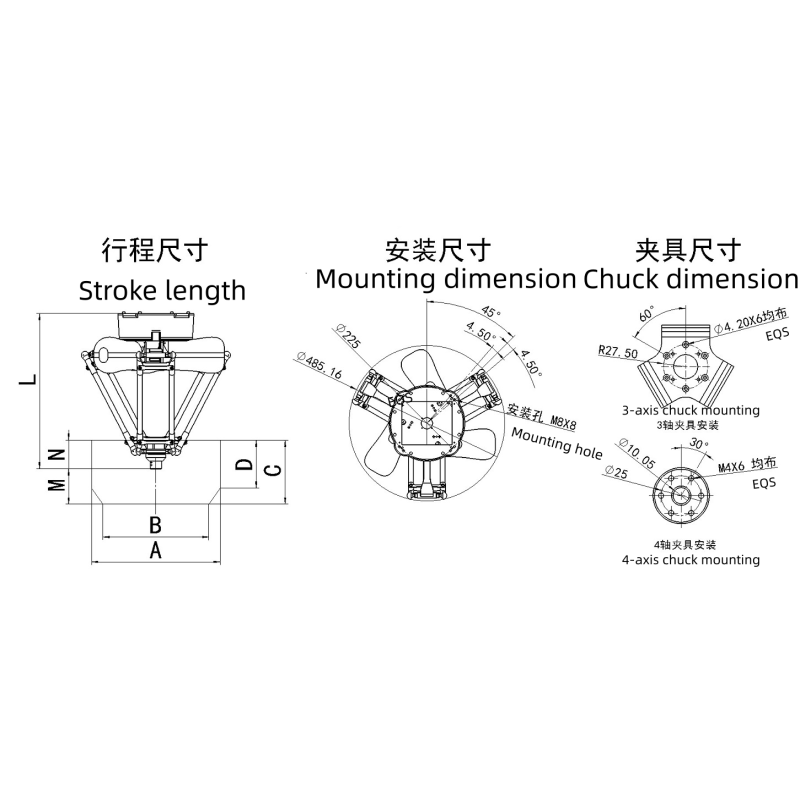

Working stroke range

OY-D-S-400
L
541
M
99
N
81
A
430
B
380
C
180
D
126
Positional repeatability
±0.1mm
Driving motor type
Different load(KG)Cycle time(25/300/25)



0.2 0.4 0.6 0.8




0.35 0.4 0.45 0.5
Total power/Voltage 1.2KW(3 axes),1.25KW(4 axes) / 220V Single phase
Working weight of Whole machine 15KG
IP grade IP54
II.Charactericteristics
  • Standard cycle time of 0.6 seconds, meeting demands for high speed and most ecomomical demand
  • Easy to fulfil high-strength & high-frequency movement requirement
  • Highly suitable for fast assembly, handling and sorting of light,small, scattered material,etc..
  • Compact structure, high rigidity and high load capacity. The perfectly symmetric parallel mechanism has good isotropy. Small workspace.
III.Areas of Application

Foods, Medicines, and related industries requiring high-speed automation solutions.

High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place SolutionHigh-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution

Agricultural and sideline products Medicines

High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place SolutionHigh-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution

Nutrition Dietry Supplement

High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution

Food Tea in small cans

IV.Our workshop

High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution

V.Shipping picture

High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution

High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place SolutionHigh-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution

VI.Why choose us
  1. More than 15 years' industry experience
  2. Specilised team
  3. Free solutions and on-site visits
  4. Standard German standard industrial plants are more worry-free
  5. Patents are well-prepared

High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place SolutionHigh-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place SolutionHigh-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution

An automatic carton erector A sorting robot A flexible gripper

High-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place SolutionHigh-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place SolutionHigh-Speed Vision delta robot random sorting for Household Chemicals 150 Picks/Min Pick-and-Place Solution

An automatic forklift An automatic package A buffer feeding mechanism

machine feeding device for a noodle fork sorting

machine

6.After-sales service
  • Overseas Technical Support
  • Long-term Spare Parts Supply
  • 12 Months Warranty
  • On-site Installation & Training (Optional)
  • Supports return policy

VII.FAQ

Q1:How fast do your Delta robot run?

Genaral speaking,the speed is 80-180PP/min,while it can be customised as you require.

Q2:How strong is your company?

A:We have our own patents and R&D team.And we provide customers with well-prepared pre-sales, in-site sale and after-sales service.Nisse bought our solution several years ago, but we still serve them fast.We have more than 70 employees.Our founder has been in this field for fifteen years.And our design director graduated from The Open University of China.And his major is machinery engineering.We have a CE certificete.Our famous customers are Nissin,Adolf,etc..

Q3:Are your products complete?

Certainly!We can even provide packaging auto overall solutions.
