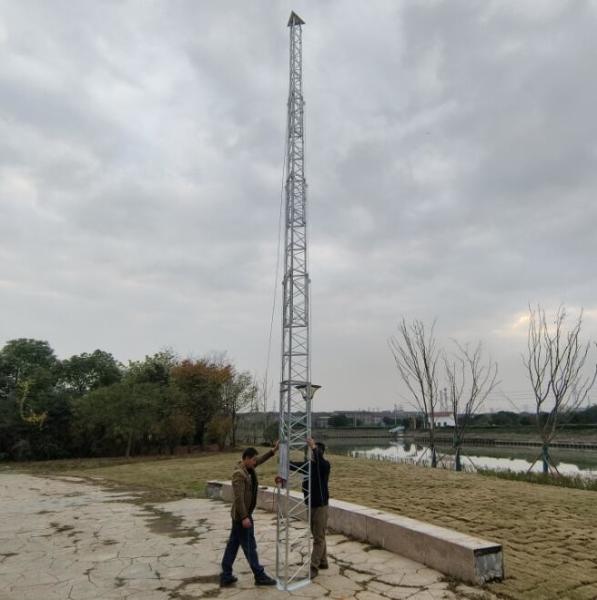

Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
Specifications
Brand Name :
QJ
Model Number :
QT30
Place of Origin :
jiangsu
MOQ :
1 unit
Price :
9500USD
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 set per month
Delivery Time :
20days
Packaging Details :
wooden box
material :
steel
type :
lattice tower
erecting type :
hand winch or electric
extend :
18m
retracted :
5.5m
sections :
5
max load :
80kg--500kg
treatment :
galvanized
Description

lattice tower 30m portable telecom tower telescopic cell on wheels tower

Brief instruction

Our portable telescopic towers are designed for heavy targets lifting, the conception of safe, fast running, easy to operate and maintenance during design make this tower become a star products on market.

Tower constructions:

Material: Q235 steel

Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm

No.2 48*2mm, lattice bar 15*2mm

No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm

No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm

No.5 76*2.5mm, lattice bar 25*2.5mm + 20*2mm

No.5 76*2.5mm, lattice bar 25*2.5mm + 20*2mm

No.5 86*2.5mm, lattice bar 30*2.5mm + 25*2mm

Bottom plate 12mm thickness

5mm-- 7*19 type, reasonable load 443kg-break force1329kg

6mm-- 7*19 type, reasonable load 638kg-break force1914kg

8mm--7*19 type, reasonable load 1134kg-break force3403kg

  1. Bearing

15*35*11 roller rod bearing, max load 500kg per pc

  1. Hydraulic cylinder

4KW motor, max load 1.5 ton

telescoping tower
model QT9 QT15 QT20 QT25 QT30
EXTEND HEIGHT 9M 15M 20M 25M 30M
RETRACTED HEIGHT 3M 4M 5M 6M 6.5M
MAX LOAD 200kg 200kg 200kg 200kg 200kg
NO.SECTIONS 4 5 5 6 7
LIFT TYPE winch winch/hydraulic hydraulic hydraulic hydraulic

Lattice 30m Portable Telecom Telescopic Cell On Wheels TowerLattice 30m Portable Telecom Telescopic Cell On Wheels TowerLattice 30m Portable Telecom Telescopic Cell On Wheels Tower

Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower

Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower

Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
