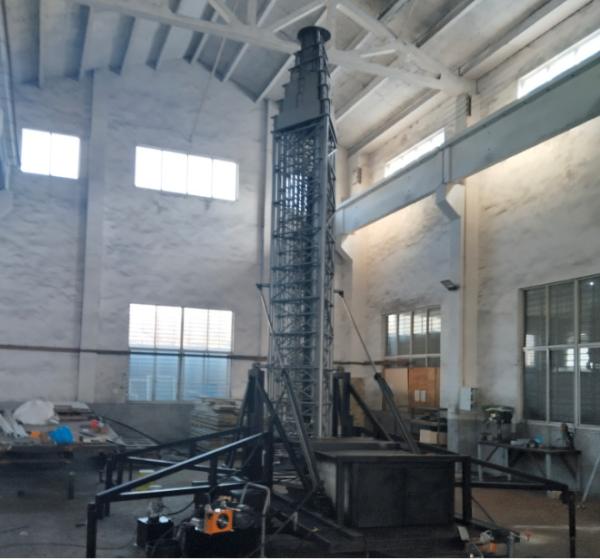

30m telecom tower Cell Site on Wheels Motorized Lattice tower portable COWs With Shelters

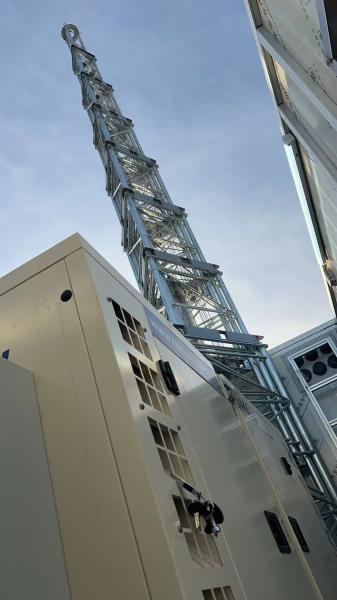

Cell Site on Wheels (CSOW) for mobile (temporary) indoor BTS applications including a trailer typically equipped with an insulated shelter, motorized lattice tower telescopic typically 60'), RF antenna mounting kit, maintenance platform, MW antenna mounting kit, AC utility connection, transfer switch, AC breaker panel and a diesel generator equipped with an external fuel tank for backup power. These locking pneumatic masts are offered in extended heights from 30' to 164'; however, for these CSOW applications, 60' is typical, and 76' is the maximum height for the configurations shown in our photos below where the masts are mounted vertically behind the platform. We can build our CSOW product with 1-2 taller masts, such as the 100' mast (530 lb payload capacity), but the masts are installed in front of the generator and swing over the top of the platform using our custom pivot / winching system in order to be stored in the horizontal position for transport.

Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm

No.2 48*2mm, lattice bar 15*2mm

No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm

No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm

No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm

Bottom plate 12mm thickness

A cell on wheels, commonly known as a COW, can be quickly delivered to any site for emergency coverage on a short-term basis

Our COW help ensure a strong communication network, even in remote locations.Traditional portable towers are often limited by instability and payload capacity restrictions.

Our towers are made with galvanized steel body that makes them resistant to corrosive elements and provides enough strength to carry payloads over 500 kgs. Towers can be towed easily and set up anywhere regardless of terrain or uneven surfaces, making them ideal for any situation.

Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm

No.2 48*2mm, lattice bar 15*2mm

No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm

No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm

No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm

Bottom plate 12mm thickness

Additionally, our communications towers can be deployed quickly and efficiently.

Each section was lifter by 3 seperated steel ropes, any emmergency broken one of them, the tower still safe with out collaps.
