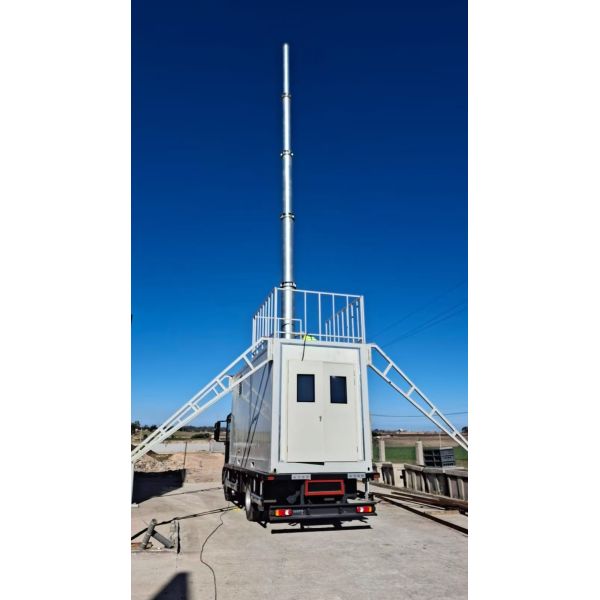

cell on wheels COWS custmized height max load 600kg

Wuxi Chinge is a professional manufacturer of telescopic telecom towers--both pole type and lattice type

height from 6m to 35m

payload up to 800kg

tower type:

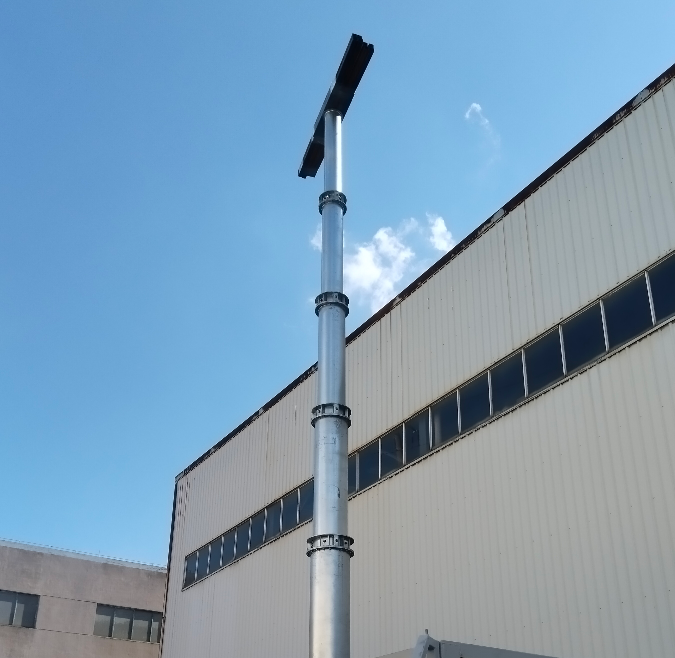

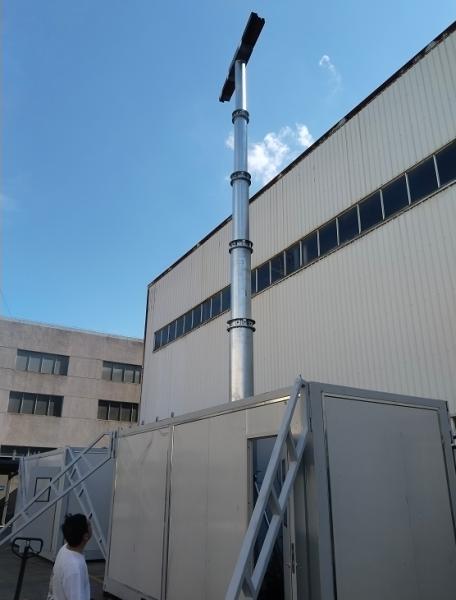

pole type

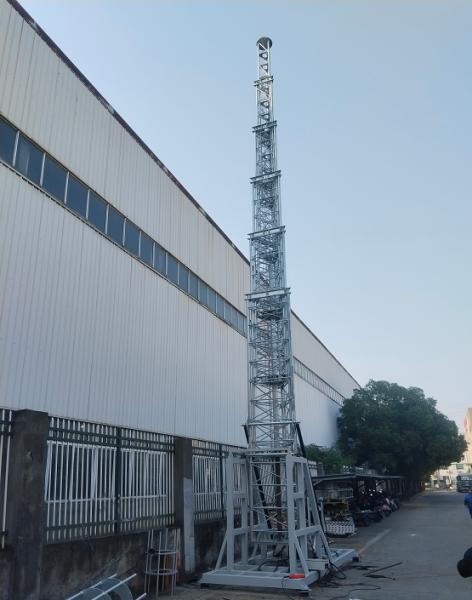

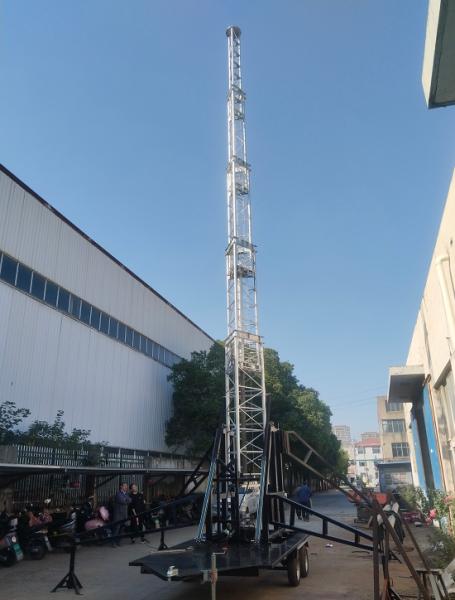

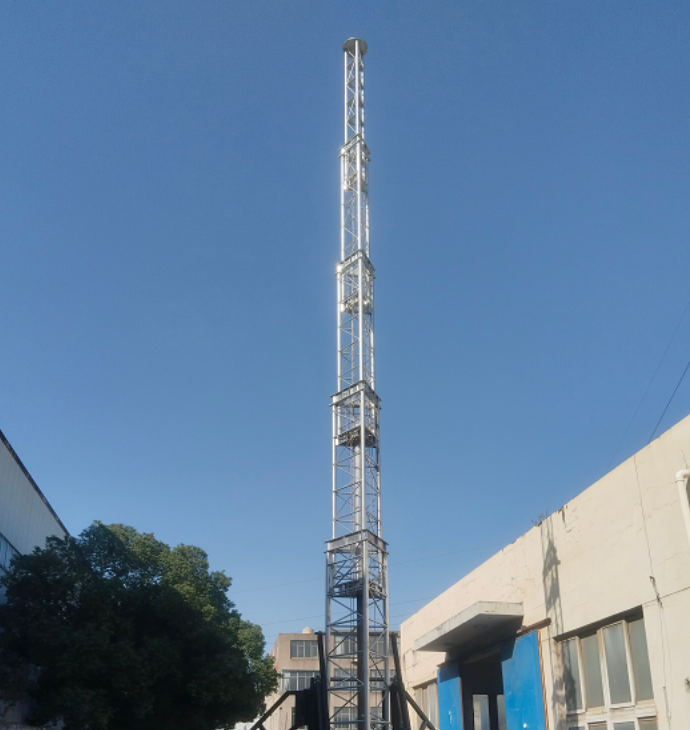

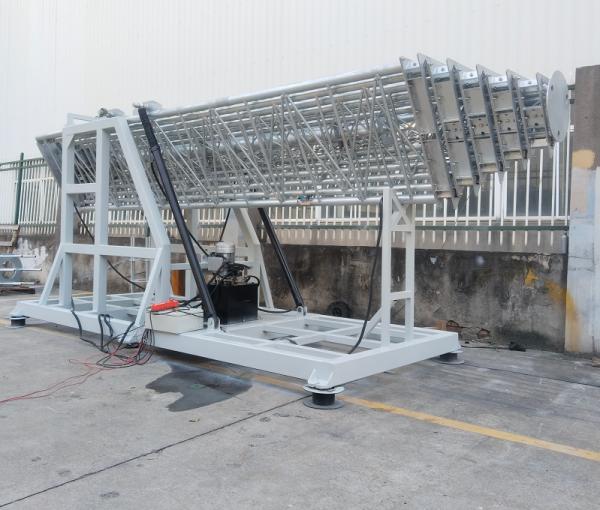

lattice type

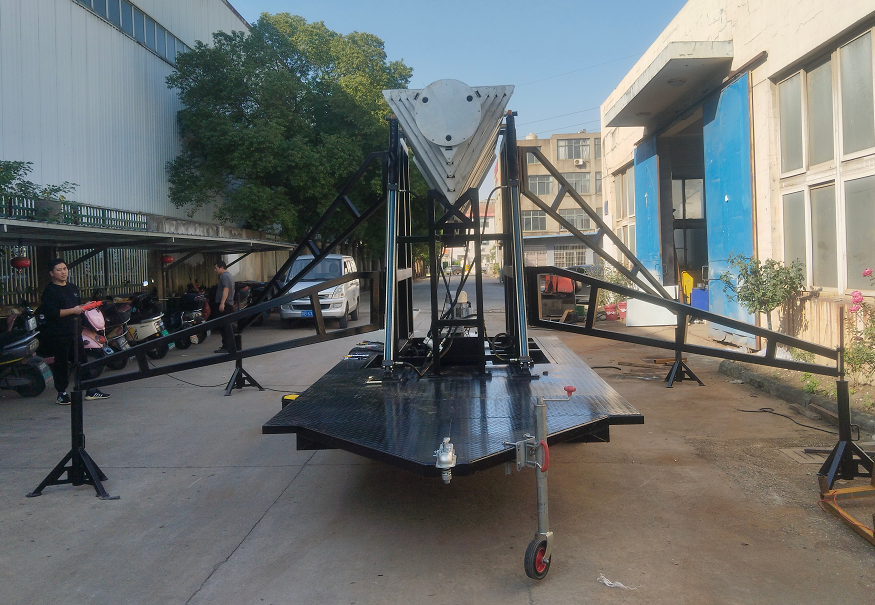

trailer :

Trailer---tow head optional for light truck/ pick car/tractor

Chassis Length: 8.0m Width: 2.20m Height: 0.6m

Max. gross weight: 5500 kg.

Axles: 2

weight division: 500 kg. per m2

Tires: all terrain 8 plus 1 spare

Brakes: compressed air

Lighting: 12V LED lighting

Electric plug: civil power inlet

electric brake

Towing arm: flat(customized)

Finish: painted black or customized color

Landing gear: 4 pcs

stabilizer 4 pcs

Tool box

Foot steps

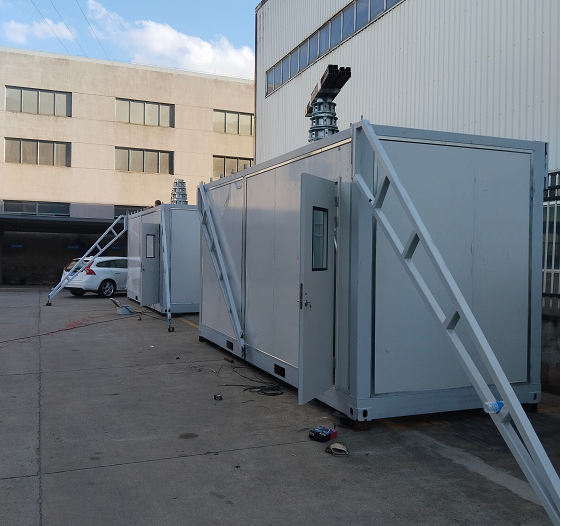

shelter

configurations:

Electric system

Cabinets: 1000x600mm

Input: 5pin 63A male (incl. 32A-63A adaptor)

PDB: 6 breaker incl. main switch and overvoltage protection

Output: female 3pin 16A, 3 per cabinet

sound & light alarm during liting the tower, angle sensor to check the verticality, if the tower decline to certain degree, it will alarm

socket: international standard sockets

Light Wiring

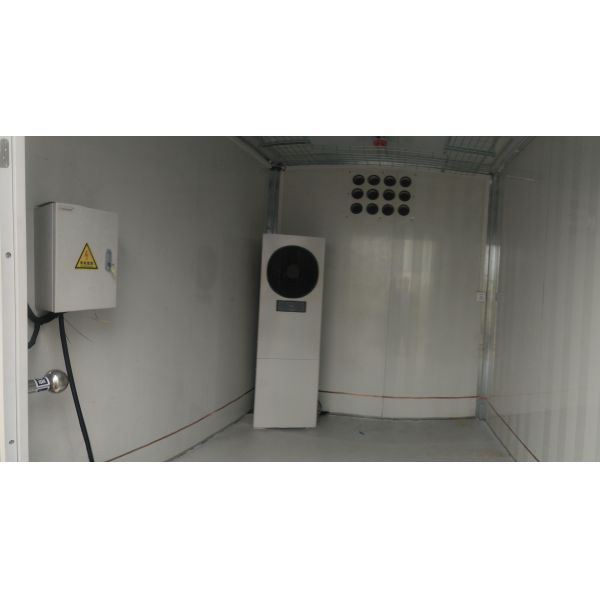

Cooling: forced-air system

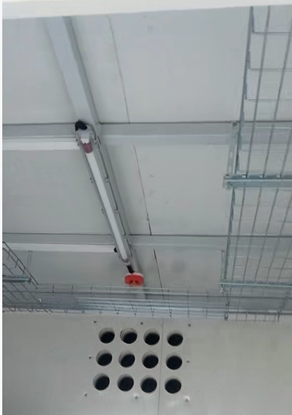

Earthing Cable management: Earthing bars and cable tray around ceiling

Electric components and accessories spect:

All sockets in shelter are Schneider series 56 industrial swithces

1. AC haier brand 5HP inverter split type
2. Main Distribution Board with change over switch

Include: breaker 63A 4P with voltage protection *1

4 pole CB 50A for rectifier *1

2 pole CB 16A for rectifier *1

2 pole CB 10A for rectifier *1

1 pole CB 10A for rectifier *1

1 pole CB 10A for rectifier *1

A busubar *1

100/5A amper meter with 100/5A current transformer *3units

Volt meter*1

Indication lamps with switch *1

Main fail relay *1

63A 4P AC1 ratws contactor *1

32A 1 P MCCB , equip with 40A/300mA earth leakage circuit breaker *1 unit

32A 3P stand by *2

Surher srrestor with 100A fuse *1

Box coated water and dust proof at IP55 grade

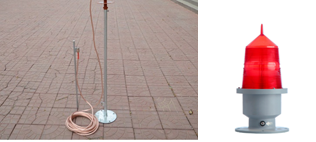

Anti-lighting management:

Copper rod at the top of the tower, body use 25m2 copper wire insulated.

Cable management:

accessories:
