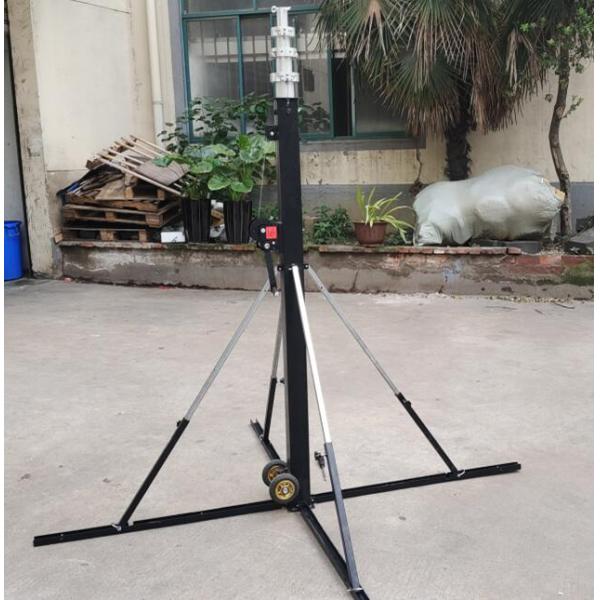

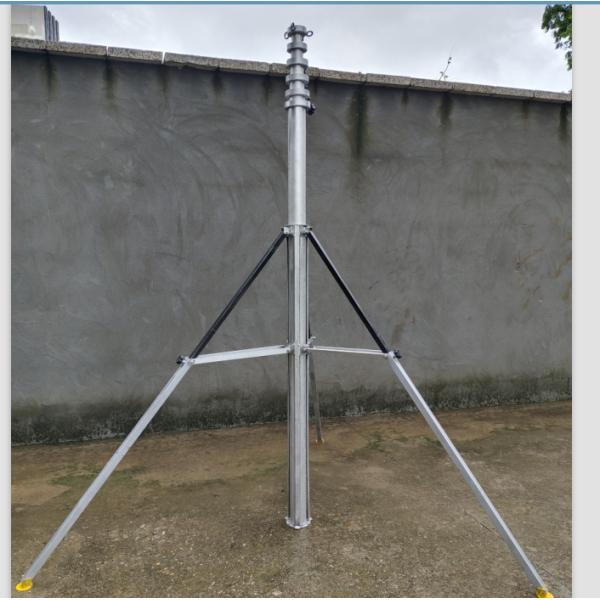

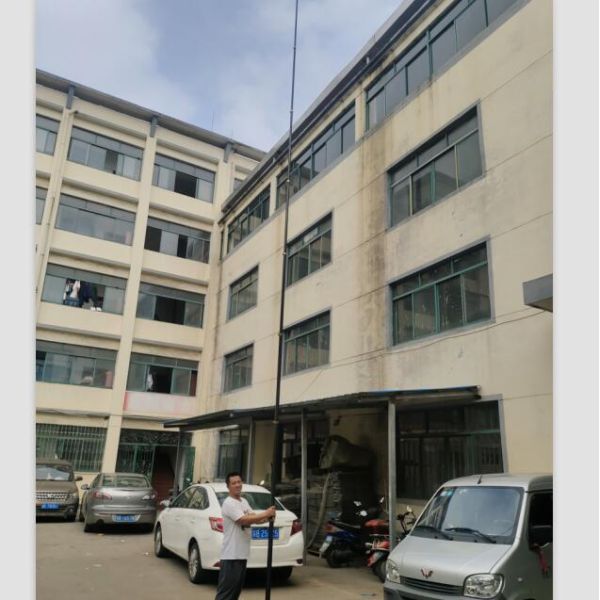

40 Ft Telescopic Antenna Mast TV Survey Station Mast Hand Crank Up Aluminum Telescoping Mast 12m
40 Ft Telescopic Antenna Mast TV Survey Station Mast Hand Crank Up Aluminum Telescoping Mast 12m
Specifications
Brand Name :
QJ
Model Number :
HW09
Place of Origin :
Jiangsu
MOQ :
1 set
Price :
280
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300 unit per month
Delivery Time :
15 days
Packaging Details :
carton
material :
aluminum
max load :
15KG
sections :
5
extend height :
9m
retracted :
1.8m
tripod :
yes
color :
yellow,blue,black
Description

survey station mast hand crank up mast 40ft antenna mast aluminum telescoping mast 12m light wight


Our sturdy aluminum telescopic masts are perfect tools for elevated photography, survey stations, antenna deployment, sports filming, internet, ideal for either quick or permanent deployments. Available in extensions from 18ft to 60ft but still very portable.


we have a wide range of telescopic masts ranging in height from 1.2 metres to over 15 metres extended height, with a range of retracted heights to suit your requirement whether it is for a vehicle or to be field mounted. Taller masts can be mounted to vehicles using one of our roof trolley systems.

The individual sections are interlocked with aluminum collar which has a tip pressed by screws nuts.

The mast should be guyed at one or two levels.

This mast was developed for all light wight application. With a transportation length of 165cm it is easy to transport by car and can be carried on most airplanes. . The mast can be rotated by hand, or a rotator can be placed at the bottom and turn the whole mast if necessary.

hand push up mast data

model HP06 HP09 HP12 HP15 HP18
EXTEND HEIGHT 6m 9m m12m 15m 18m
RETRACTED HEIGHT 1.7m 18m 2m 2.2m 2.5m
MAX LOAD 5kg 5kg 5kg 5kg 5kg
SECTIONS 4 6 7 8 9
BOTTOM DIAMETER 50mm 60mm 65mm 70mm 75mm

40 Ft Telescopic Antenna Mast TV Survey Station Mast Hand Crank Up Aluminum Telescoping Mast 12m

40 Ft Telescopic Antenna Mast TV Survey Station Mast Hand Crank Up Aluminum Telescoping Mast 12m

winch up mast

model HW06 HW09 HW12 HW15 HW18
EXTEND 6M 9 M12M 15M 18M
RETRACTED 1.6M 1.8M 2M 2.2M 2.5M
SECTIONS 4 6 7 8 9
MAX LOAD 15KG 15KG 10KG 8KG 5KG
WINCH 600LB 800LB 1200LB 1500LB 1500LB

40 Ft Telescopic Antenna Mast TV Survey Station Mast Hand Crank Up Aluminum Telescoping Mast 12m40 Ft Telescopic Antenna Mast TV Survey Station Mast Hand Crank Up Aluminum Telescoping Mast 12m
