Specifications
Brand Name :
BAMX
Place of Origin :
CHONGQING,CHINA
Certification :
CO
MOQ :
32
Price :
Determined by quantity and configuration
Packaging Details :
SKD/CKD
Delivery Time :
30-40 DAYS
Payment Terms :
T/T, L/C
Supply Ability :
Customized
Model Number :
BX200GY-1
Fuel Capacity :
4-6
Drive System :
Chain
Engine Displacement :
200-250cc
Engine Type :
Air Cooling/Water Cooling
Brakes :
Disc/Drum
Instruments :
Speedometer And Odometer
Description

Product Description:

This 200cc off-road motorcycle, made by a reputable Chinese factory, offers practicality, reliability, and outstanding performance tailored to various needs. With its excellent features, it has become a sought-after means of transportation.
Firstly, this motorcycle boasts high-quality components and a meticulously assembled engine, ensuring exceptional reliability and durability. The Chinese manufacturing industry's extensive experience and technological advancements in motorcycle production guarantee that each unit meets stringent quality standards through rigorous quality control and testing processes.
Secondly, the 200cc engine delivers optimal power output, making it well-suited for both urban commuting and thrilling off-road adventures. Its impressive acceleration and torque capabilities enable effortless navigation through diverse road conditions, whether you're cruising through city streets or conquering challenging mountain terrains.

Technical Parameters:

MAIN SPECIFICATION
Engine
Engine Type:Single cylinder,air-cooled,four stroke,
Displacement (ml):173.6
Bore X Stroke(mm):67×57.5
Compression Ratio:9.2:1
Max. Power (kw/r/min)10/7000
Max. Torque (N.m/r/min):13/5500
Max. Speed (Km/h):≥85
Lubrication:Pressure ,splash
Clutch Type:Multiplate wet clutch, Manual
Ignition:CDI
Starting System:Electric/Kick Start
Transmission System:Chain drive
The left and right steering angleleft 39º right 40º
CHASSIS
Front Brake:disc/drum brake
Rear Brake:drum brake
Front Tire:3.50-17
Rear Tire:4.60-17
Battery:12V/7AH
DIMENSIONS
L X W X H (mm):2000*800*850
Seat Height (mm):850
Wheelbase (mm):1340mm
Min. Ground Clearance(mm):200
Max. Permissionable Weight (kg):165
Rider Capacity:2 Person
Dry. Weigth (kg):125
Engine Oil (L):1L SAE15W/40
Fuel Tank Capacity (L):14
Roll angle (°)10°

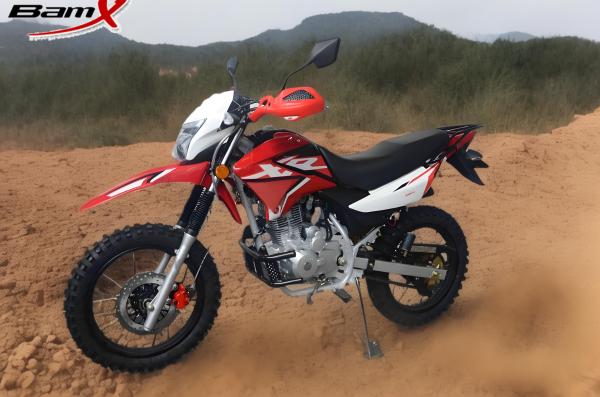

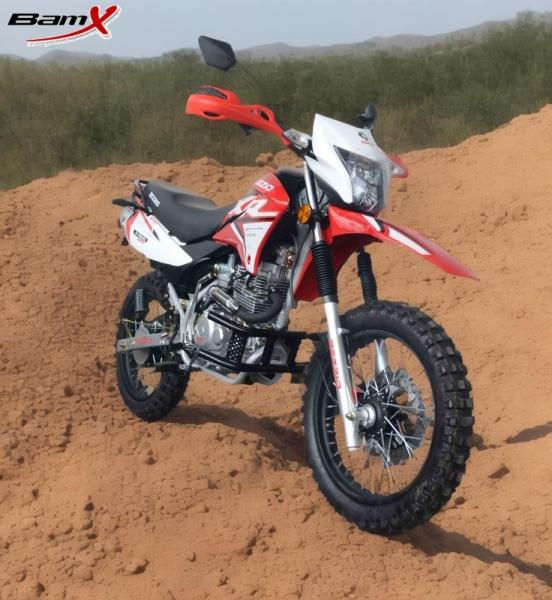

Pictures:

motorcycle 200cc Chain Drive Dual Sport Motorcycle with 5L Fuel Capacity 250cc Air/Water Cooling Engine Disc/Drum Brakesmotorcycle 200cc Chain Drive Dual Sport Motorcycle with 5L Fuel Capacity 250cc Air/Water Cooling Engine Disc/Drum Brakesmotorcycle 200cc Chain Drive Dual Sport Motorcycle with 5L Fuel Capacity 250cc Air/Water Cooling Engine Disc/Drum Brakes

Packing and Shipping:

Full Container Shipping
We always recommend our buyers to start with 1x40HQ(at least 1x20GP for trial order). Full container loading can reduce the
cost, give products the best protection, and help to orgnize producing.
motorcycle 200cc Chain Drive Dual Sport Motorcycle with 5L Fuel Capacity 250cc Air/Water Cooling Engine Disc/Drum Brakesmotorcycle 200cc Chain Drive Dual Sport Motorcycle with 5L Fuel Capacity 250cc Air/Water Cooling Engine Disc/Drum Brakes

1 Year of 6000km Guarantee:

We are confident to ensure our quality to our buyers, long time guarantee helps to build our business, and build good image into our buyers group. We are happy to do that, and always continue.

FAQ:

Q1. How long for delivery time?
A1. Our delivery time is 30- 40days.
Q2. Which colors will be available?
A2. Almost all the popular colors are available,or we can customize the color you want for you.
Q3. Can I mix different models in one full container order?
A3. Yes, and we can give you more selections to make one full container.
Q4. Why choose us?
A4. Provide you professional service 2. Have stable cooperation shipping forwarder
Q5. What is the price of your products ?
A5. Pls contact with our sales for detailed offer.
