Specifications
Model NO. :
PVT540W
Concentrating :
No
Working Temperature Range :
Low Temperature
Type :
Pressurized
Application :
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material :
Copper
Size :
2256X1133X35mm
Heat Generation :
1300W
Transport Package :
Pallet
Specification :
540W
Trademark :
QIRUI
Origin :
China
HS Code :
8541402000
Production Capacity :
10000
MOQ :
28
Price :
420
Description
PVT Solar Panel (Photo-voltaic&Thermal collector)
China Manufacturer 450W PV and 1200W Thermal 540W PV and 1500W Thermal All in One Hybrid Pvt Solar Panel
Number of cells: 60(6*10)
Cell Type: polycrystalline 156*156mm
Dimension: 1640*992*40mm
Net weight: 25KG
Front glass: 3.2mm tempered low iron
Frame: Anodized aluminum
Junction box: IP67, with bypass diodes
Connector: MC4 compatible
Output cables: TUV, 900mm length, 4.0mm2
ELECTRICAL CHARACTERISTICS (STC)
Peak Power Watts-* PMAX (Wp) 270
Power Output Tolerance PMAX (W) 0 ~ +3%
Maximum Power Voltage VMPP (V) 30.98
Maximum Power Current IMPP (A) 8.91
Open Circuit Voltage VOC (V) 43.3
Short Circuit Current ISC (A) 9.71
Module Efficiency ? (%) 18.40
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5.

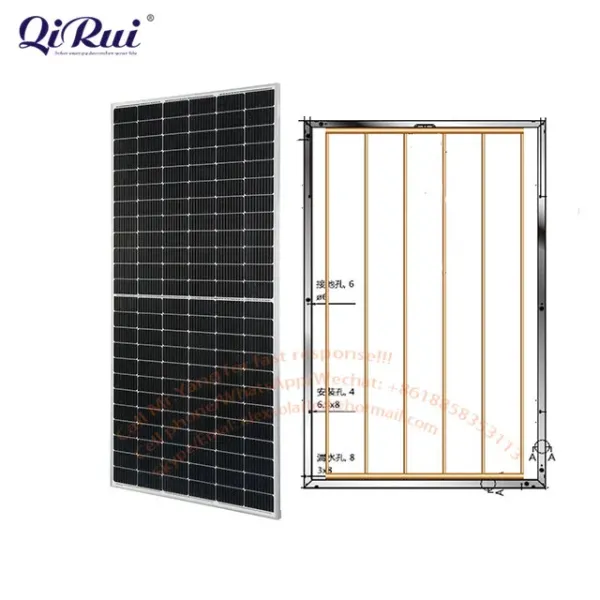

Thermal collector specification
Peak Power Watts 760W
Collector Efficiency 46%
insulation layer Glass wool
flowing tube Aluminium-copper Φ8x0.6 mm
Number of flowing tube 6pcs
Header tube copper Φ16x0.8 mm
Back sheet Galvanized steel , thickness:0.4mm
Working Pressure 0.6Mpa
Working temperature Minus 35 degree celsius to 150 degree celsius

Simulation of System:
10KW PVT solar collectors project
can offer 5000 liter hot water at 60°C per day.

Features of PVT Solar Collector
1, Improve Photo-voltaic efficiency 15%
2, Save installation cost and area
3, Combine the photovoltaic and heating all in one
Certifications
