Cross 4 Way 90° Handrail Connector 30×30 Satin Mirror QLS040.3030
Cross 4 Way 90° Handrail Connector 30×30 Satin Mirror QLS040.3030
Cross 4 Way 90° Handrail Connector 30×30 Satin Mirror QLS040.3030
Cross 4 Way 90° Handrail Connector 30×30 Satin Mirror QLS040.3030
Cross 4 Way 90° Handrail Connector 30×30 Satin Mirror QLS040.3030
Cross 4 Way 90° Handrail Connector 30×30 Satin Mirror QLS040.3030
Specifications
Model Number :
QLS040.3030
Surface Finish :
Satin / Mirror (optional)
Certificate :
MTC, ISO9001
MOQ / Sample :
100 pcs or as per items, Free sample available
MOQ :
100pcs
H (mm) :
30
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Installation :
Indoor (AISI304) / Outdoor (AISI316)
Certification :
CE certifiate/ ISO9001
Tube Compatibility :
Square tube, t=2.0 mm
Place of Origin :
Qingdao, China
A×B (mm) :
30×30
Brand Name :
Railing-O
Product Type :
Square 90° Four‑Way Cross Connector
Description
Cross 4-Way Square 90° Handrail Connector 30×30 Satin/Mirror
Cross 4-Way Square 90° Handrail Connector 30×30 Satin/Mirror AISI304/316 QLS040.3030

The QLS040 series square 90° four‑way connector is a precision‑engineered cross fitting designed to join four square handrail tubes at right angles in a single junction. Manufactured from high‑grade stainless steel – AISI304 for interior applications and AISI316 for exterior environments – this connector provides robust structural support for complex railing intersections. The internal fit design ensures seamless alignment with a clean, weld‑free finish, making it ideal for contemporary architectural projects. Available in satin or mirror finish, the QLS040.3030 model accommodates 30×30mm square tubes with 2.0mm wall thickness.

Key Features
  • Four‑way 90° cross connection – enables multi‑directional intersections in a single fitting.
  • Internal fit design – delivers weld‑free, flush‑surface joints for a clean aesthetic.
  • Dual material grades – AISI304 for interiors; AISI316 for exterior and coastal installations.
  • Compatible with 30×30mm square tube – precision‑engineered for 2.0mm wall thickness.
  • Glue‑in installation – simple adhesive bonding; eliminates welding and specialist skills.
  • Two finish options – satin brushed or mirror polished for design flexibility.
  • ISO9001 certified – quality assured with MTC documentation available.
  • Free sample – evaluate before bulk ordering.

Quantity

100 pcs

Packaging

Plastic bag, carton and pallet

Technical Specifications
Parameter Value
Product Type Square 90° Four‑Way Cross Connector
Series QLS040
Material AISI304 (interior) / AISI316 (exterior)
Surface Finish Satin or Mirror (optional)
Tube Compatibility Square tube, 2.0mm wall thickness
Installation Method Internal glue‑in (structural adhesive required)
Certification MTC, ISO9001
MOQ 100 pcs; free sample available

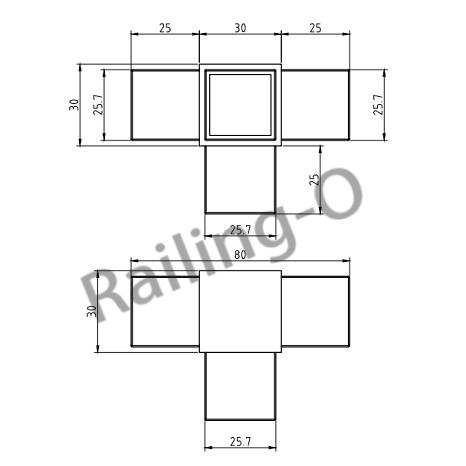

Code AXB (mm) H (mm)
QLS040.3030 30X30 30
Packaging & Delivery

Each connector is individually wrapped in protective plastic bags, packed in cartons, and loaded onto pallets for secure transit. Custom packaging available on request. Delivery timelines are arranged according to order quantities and production schedules; we guarantee on‑time shipment as committed. MTC and ISO9001 certification documents accompany every consignment.

Why Choose Us
  • Cross‑junction connectivity – enables efficient grid‑style railing systems.
  • Twin material grades – 304 for interiors, 316 for demanding exteriors.
  • Compact size – 30×30mm coverage for space‑saving designs.
  • Free sample program – quality verification before bulk orders.
  • Quality certified – ISO9001 and MTC documentation included.
  • Factory‑direct value – competitive pricing with volume discounts.
