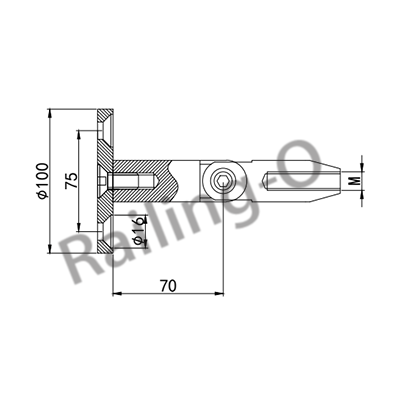

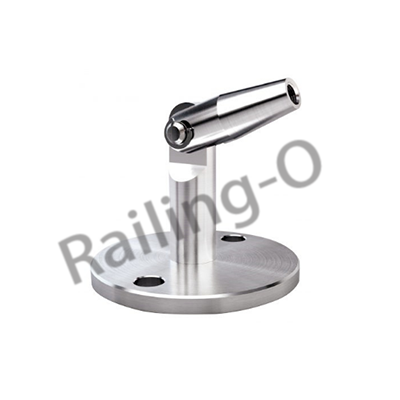

The QGC0005 glass canopy fitting is a precision‑engineered structural component designed for securing glass panels in overhead glazing and canopy systems. Manufactured from high‑quality stainless steel – AISI316 for exterior and marine applications, with AISI304 option for interior use – this fitting features a 100mm outer diameter with a 75mm height and 70mm inner dimension, providing robust load‑bearing support for overhead glass installations. The fitting accommodates glass thicknesses from 8mm to 12.76mm, offering versatility for various architectural projects. Available in satin or mirror finish, the QGC0005 delivers reliable performance and clean aesthetics for residential, commercial, and public canopy applications.

• Optimised dimensions – 100mm outer diameter with 75mm height and 70mm inner dimension for balanced support and visual proportion.
• Wide glass compatibility – accommodates 8mm to 12.76mm glass panels for versatile canopy design.
• Material versatility – AISI316 for exterior/coastal applications; AISI304 for interior use.
• Two finish options – satin brushed or mirror polished for design flexibility.
• Corrosion‑resistant – stainless steel construction ensures long‑term durability in demanding environments.
• ISO9001 certified – quality assurance with MTC documentation available.
• Structural‑grade strength – engineered for overhead load‑bearing applications requiring enhanced safety margins.

Ideal for glass canopy and awning systems in residential, commercial, and public settings – including entrance canopies, walkway covers, patio covers, pool enclosures, shopping centre entrances, hotel porte‑cocheres, and architectural glazing projects requiring secure overhead glass support.

Each bracket is individually wrapped in protective film, packed into reinforced export cartons, and palletized for secure freight transport. Custom packaging arrangements available on request. Lead times correspond to confirmed order quantities; committed delivery schedules are rigorously maintained. All shipments include MTC and ISO9001 certification documents.

• Precision dimensioning – 100×75×70mm for balanced support.
• Structural‑grade strength – engineered for overhead load‑bearing safety.
• Wide glass range – 8–12.76mm compatibility for versatile design.
• Material choice – 316 for coastal durability, 304 for interiors.
• Finish options – satin or mirror to match design schemes.
• Quality certified – ISO9001 and MTC documentation included.
• Factory‑direct value – competitive pricing with volume discounts.
