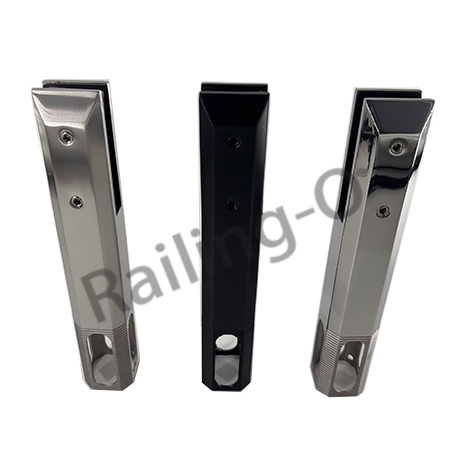

QAF-S020 2205 Duplex Stainless Steel Spigot

The QAF-S020 pool fence spigot is a high‑strength square base fixing engineered specifically for core‑drilled frameless glass pool fencing. Manufactured by precision investment casting in 2205 duplex stainless steel – with AISI316 and AISI304 options available – this 286mm spigot delivers superior structural support and exceptional corrosion resistance for demanding poolside, marine, and coastal environments. The friction‑fit system secures 12mm glass panels without drilling, preserving panel integrity and enabling clean, uninterrupted sightlines. The spigot includes an integrated one‑piece EPDM gasket and pressure plate for a watertight seal, with a cover ring for a refined finish. Available in mirror, brushed satin, or matt black finishes, and independently tested to relevant standards at a NATA‑accredited facility.

Key Advantages

• Superior Durability: Constructed from 2205 duplex stainless steel for exceptional corrosion resistance.
• Easy Installation: Features an integrated 1-piece EPDM gasket and pressure plate.
• Professional Finish: Includes a matching cover ring for a seamless appearance.
• Safety Assured: Tested to relevant standards at a NATA accredited test facility.
• Square base design – clean geometric footprint ideal for core‑drilled applications with stable 360° support.
• Elevated 286mm profile – provides enhanced stability and visual presence, suitable for taller glass panels and high‑wind areas.
• Core‑drilled application – specifically engineered for pre‑drilled glass panels with secure friction‑fit retention.
• Friction‑fit system – no holes through glass; maintains panel strength and integrity.
• Suits 12mm glass – precision‑engineered for standard pool fence panel thickness.
• Integrated EPDM gasket & pressure plate – ensures watertight seal and protects glass edges from direct metal contact.
• Three finish options – mirror, brushed satin, or matt black for design versatility.
• Material options – 2205 duplex (standard), AISI316, or AISI304 upon request.
• NATA‑tested – validated at accredited facility for safety compliance and performance.
• Cover ring included – conceals fixings for a clean, professional finish.

Applications

Specifically engineered for frameless glass pool fencing in residential, commercial, and hospitality settings – including swimming pools, spas, outdoor entertaining areas, hotels, resorts, and coastal developments. The 286mm height provides maximum glass support and stability, making it ideal for installations requiring enhanced panel retention, high wind load resistance, or a more substantial visual presence. Suitable for core‑drilled mounting to concrete, timber, or tile surfaces with 12mm tempered glass panels.

Product Attributes

Technical Specifications

Packaging & Delivery

Each spigot is individually wrapped with protective film and its EPDM gasket, securely packed in cartons or wooden crates for safe transit. Sea, air, and express shipping options are available. Delivery timelines are arranged according to order quantities and production schedules; we guarantee on‑time shipment as committed. Installation instructions and material test certificates accompany every consignment.

Why Choose Us

• Maximum height profile – 286mm for superior stability and high‑wind resistance.
• Pool‑specific engineering – designed for demanding chlorine and saltwater environments.
• Square base design – clean geometric styling for core‑drilled installations.
• Material flexibility – 2205, 316, or 304 to match project requirements.
• Three finish options – mirror, satin, or matt black for design versatility.
• NATA‑tested reliability – independently verified for safety and performance.
• Investment casting quality – consistent dimensions and flawless finishes.
• Factory‑direct value – competitive pricing with volume discounts.
• Global reputation – trusted by pool builders, architects, and contractors worldwide.
