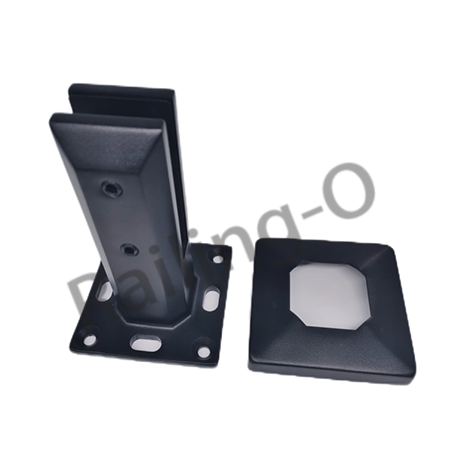

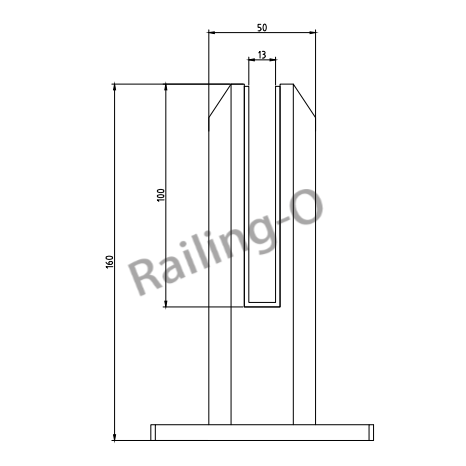

The QAB-S012 is a square‑flanged adjustable glass spigot engineered for frameless balustrade and railing systems. At 160mm high, it is precision investment‑cast in 2205 duplex stainless steel as standard, with AISI 316 and AISI 304 also available for varying exposure conditions. The adjustable design compensates for minor substrate irregularities, ensuring consistent glass alignment. Friction‑fit retention requires no holes through the glass, while the integrated one‑piece EPDM gasket and pressure plate deliver a secure, watertight hold. Suitable for 12mm glass, it comes in mirror, brushed satin, or matt black finishes and has been tested at a NATA‑accredited facility.

• Superior Corrosion Resistance: Crafted from 2205 duplex stainless steel.
• Simplified Installation: Friction fit design with integrated 1-piece EPDM gasket and pressure plate.
• Certified Quality: Tested to relevant standards at a NATA accredited test facility.
• Aesthetic Versatility: Includes flat cover ring; available in mirror, brushed satin, and matt black finishes.
• Adjustable flanged base – fine‑tunes glass alignment on uneven floors or sloped surfaces.
• Square flange profile – 50mm width for a clean, architectural appearance.
• Friction‑fit retention – no through‑glass drilling; preserves panel integrity.
• Suits 12mm glass – precision‑engineered for standard balustrade panels.
• Material options – 2205 duplex standard; AISI 316 or AISI 304 on request.
• Integrated EPDM gasket & pressure plate – ensures a watertight, glass‑safe seal.
• Three finish choices – mirror, brushed satin, or matt black.
• Flat cover ring included – conceals fixings for a clean finish.
• NATA‑tested – verified to relevant safety and performance standards.

Designed for core‑drilled or surface‑mounted frameless glass balustrades, including balconies, terraces, staircases, and mezzanine edges. The adjustable base is particularly useful where concrete, stone, or tile surfaces are not perfectly level. Suitable for residential, commercial, and hospitality projects.
