Specifications
Brand Name :
QiaoDa
Model Number :
125*3050
Certification :
YES
Place of Origin :
HeBei China
MOQ :
10PC
Price :
$5.80
Payment Terms :
T/T
Supply Ability :
10000 units per month
Delivery Time :
10 word days
Packaging Details :
Consultation with customers
Type :
Round envelope trapezoid
Surface Treatment :
Silicone coating
Size :
Customized
Air Permeability :
10-20 m3/m2/min
Number of longitudinal bars :
8-24
Chemical Resistance :
Acid, Alkali, Oxidation
Filtration Efficiency :
99.9%
Applicable condition :
Industrial dust collection
Installation Method :
Snap band, Cord, Clamp
manufacturer :
China Qiao Da
Country of origin :
China
specification :
custom
Length :
custom
use :
Bag support
material :
304 316
Description

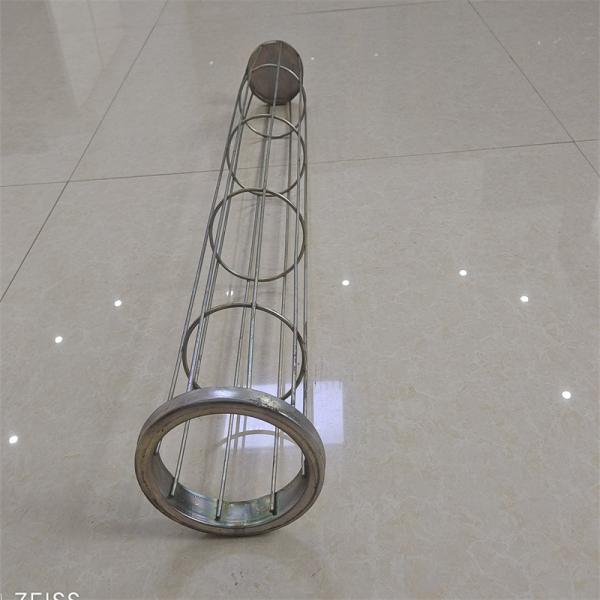

Corrosion-resistant 16-bar stainless steel filter cage

Stainless steel filter bag cage frame, also known as "frame, bag cage" is the frame of the

filter bag, it is lightweight, easy to install and maintain, the quality of the skeleton directly

affects the filter state and service life of the filter bag. In recent years, the skeleton is mainly

made of carbon steel and stainless steel as raw materials, and the surface is electrostatic

sprayed with galvanized and organosilicon powder, which has low cost, good corrosion

resistance and high temperature resistance.

QiaoDa environmental protection company independent production of dust collector filter

bag dragon frame, equipment straightening machine, automatic punching machine, quick

spot welding machine, flat bag cage skeleton forming machine and other skeleton host for

12 cylinders, can achieve 6, 8, 10, 12, 16, 20, 24 wire products one-time welding. After

treatment for cold galvanized or silicone spraying, the product is smooth and straight, greatly

extending the service life of the filter bag. Each frame is precisely measured to ensure proper

application. The skeleton of the dust collector is 10 carbon steel wire

Cage shape Round, envelope, trapezoid, spring shape
Number of longitudinal bars in bag cage 8,10,12,14,16,20,24
diameter φ100,φ110,φ115,φ120,φ125,φ140,φ152,φ155
Surface treatment mode Galvanized, sprayed, silicone
Common specification

φ120*1000mm,

φ120*1500mm,

φ120*2000mm,

φ120*2500mm,

φ120*3000mm,

φ120*3500mm,

φ120*4000mm,

φ150*2000mm

φ150*2500mm,

φ150*3000mm,

φ150*3500mm,

φ150*4000mm,

φ150*4500mm,

φ150*5000mm,

φ150*5500mm,

φ150*6000mm,

φ150*7000mm,

φ150*8000mm
