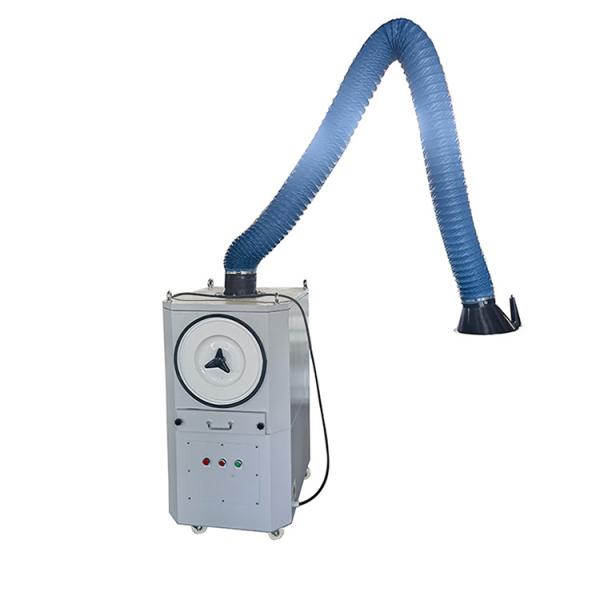

Single Arm High Efficiency Smoke Purification Dust Collector Portable Fume Extractor
Single Arm High Efficiency Smoke Purification Dust Collector Portable Fume Extractor
Single Arm High Efficiency Smoke Purification Dust Collector Portable Fume Extractor
Single Arm High Efficiency Smoke Purification Dust Collector Portable Fume Extractor
Specifications
Power :
1.5~3.0kw
Keyword :
Welding fume dust collector
Color :
Gray
Certification :
CE/ISO
Voltage :
380V, 50hz(optional)
Air Valume :
1500～3000m3/h
Type :
Portable industrial dust collector
Application :
Industrial Dust Removal
Brand Name :
Qiaoda
Model Number :
QD-HY1500D/2200D/3000D-G
Place of Origin :
China
MOQ :
1 pc
Price :
USD 500~900/pc
Payment Terms :
L/C,T/T
Supply Ability :
20 pcs/month
Delivery Time :
25~30 days
Packaging Details :
wooden package
Description
Single Arm High Efficiency Smoke Purification Dust Collector Portable Fume Extractor
Two Arm Welding Smoke Extraction System Welding Fume Dust Collection For Metal Welding
Single Arm High Efficiency Smoke Purification Dust Collector Portable Fume Extractor Single Arm High Efficiency Smoke Purification Dust Collector Portable Fume Extractor
Application
Our welding smoke purifier is a specialized industrial purification device designed for welding smoke and light particles. Lightweight and flexible for easy operation, it's widely used in:
  • Chemical processing
  • Electronics manufacturing
  • Metal fabrication
  • Tobacco processing
  • Glass production
  • Pharmaceutical facilities
  • Food processing plants
  • Clean rooms
  • Hospitals
  • Other environments with dust and smoke pollution
Equipment Characteristics
  • Special turbine fan with brand motor features anti-overload circuit protection to prevent motor burnout
  • Manual cleaning system ensures thorough filter maintenance for consistent airflow
  • Premium filter cylinders capture 0.3μm particles with excellent performance on wet/sticky dust
  • 360° adjustable suction arms maximize smoke capture at source
  • Triple protection system safeguards against fire hazards and large slag particles
  • Optimized airflow design minimizes operational noise
  • High-quality Korean casters with locking mechanism for easy mobility and positioning
Technical Specifications (QD-HY2200S Model)
Parameter Value
Air Volume 2500m³/h
Power 2.2kW (380V, 50HZ optional)
Filter Cartridge Φ325*500mm, 2 pieces
Dimensions 750*700*1100mm
Shell Thickness 1.4mm
Suction Arm Φ160*3000mm, 2 pieces
Noise Level <85 dB
Purification Efficiency 99.97%
Cleaning Method Manual/Pulse
Operation Instructions
For optimal performance and safety, please follow these guidelines:
  • Position unit on level surface, lock casters, and adjust suction arms before operation
  • Connect power and activate using main power switch and motor running switch
  • Clean filters every 72 hours of operation using compressed air from inside out
  • Periodically remove and empty ash bucket using Phillips screwdriver
Important: Read full manual before use. Manufacturer not liable for improper operation.
Frequently Asked Questions
Q: What certificates do you have?
A: CE / ISO / SGS certified
Q: Do you provide after-sales service?
A: Yes, including technical support from our engineers
Q: How long is your warranty?
A: 1 year warranty with free replacement for non-artificial damage
Q: Which payment methods do you accept?
A: TT, L/C, PayPal, cash, D/P, D/A, Western Union,
Q: What kind of transportation do you offer?
A: Customer's choice of air, land or sea shipping
