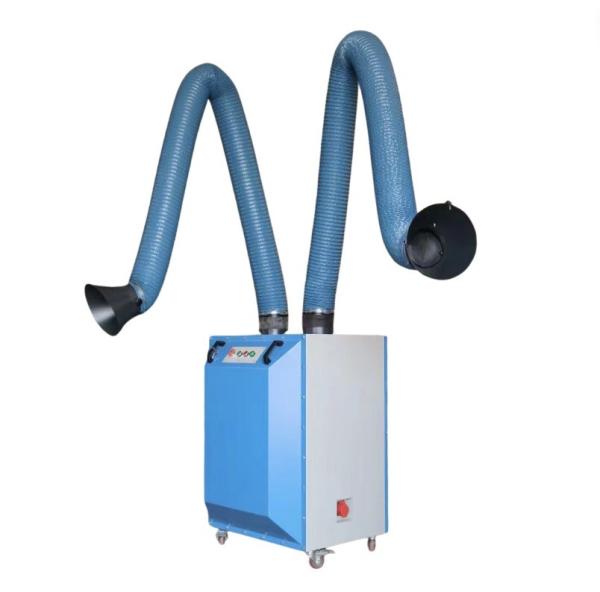

Two Arm Welding Smoke Extraction System Welding Fume Dust Collector For Metal Welding
Two Arm Welding Smoke Extraction System Welding Fume Dust Collector For Metal Welding
Specifications
Brand Name :
Qiaoda
Model Number :
QD-HY1500S/2200S/3000S
Certification :
CE SGS ISO Certificate
Place of Origin :
China
MOQ :
1 pc
Price :
USD 500~900/pc
Payment Terms :
L/C,T/T
Supply Ability :
20 pcs/month
Delivery Time :
25~30 days
Packaging Details :
wooden package
Cleaning Type :
pulse jet cleaning/Manual
Power :
1.5~3.0kw
Filtering Material :
filter cartridge
Keyword :
Welding fume dust collector
Color :
blue/gray/white/customized
Dimension(l*w*h) :
Depend
Weight :
customized
Description

Two Arm Welding Smoke Extraction System Welding Fume Dust Collection For Metal Welding

1. Application

The welding smoke purifier produced by the company is a purification device designed for industrial welding smoke and light particles, it is light and flexible, easy to operate, it is also widely used in chemical, electronics, metal processing, tobacco, glass, pharmaceutical, food processing, purification room, hospital and other industries and other places with dust and smoke pollution.

Two Arm Welding Smoke Extraction System Welding Fume Dust Collector For Metal Welding

Two Arm Welding Smoke Extraction System Welding Fume Dust Collector For Metal Welding

2.Equipment characteristics

(1) with a special turbine fan and brand motor, using the anti-overload circuit to prevent motor burning, high safety, stable performance.
(2) Manual cleaning: manual cleaning, so that the filter surface cleaning more thorough, clean, can always ensure that the dust collector has a constant intake of air;
(3) The filter cylinder is made of domestic well-known brand materials, long service life, can absorb 0.3μm dust particles, wet and sticky dust has a good filtering effect.
(4) The use of 360 degrees free movement of the universal suction arm, can absorb smoke from the smoke generation, greatly improve the collection rate of smoke, to ensure the health of operators.
(5) The purifier internal for fire hazards and large particles of slag using three protective measures, so that the purifier service life is longer, more safe and reliable.
(6) Clean air is evenly guided and dispersed from the direction of the grille vent, thus reducing noise to a minimum.
(7) With a special brake of the new Korean universal caster, easy to move and position the equipment.

3. Parameter Description

Take QD-HY2200S model for example:

Air Volume 2500m3/h Power 2.2kw
Power 380V, 50HZ(optional) Filter Cartridge Φ325*500mm, 2 pc
Body Dimension 750*700*1100mm Cleaning Method Manual/Pulse
Shell Thickness 1.4mm The Size of Arm Φ*L160*3000mm, 2pcs
Noise <85 dB Purification Efficiency 99.97%

4. FAQ

Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.

Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.

Q: Do you offer OEM services?
A: Yes. Any required logo is available.

Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.

Q: What certificates do you have?
A:CE / ISO / SGS
